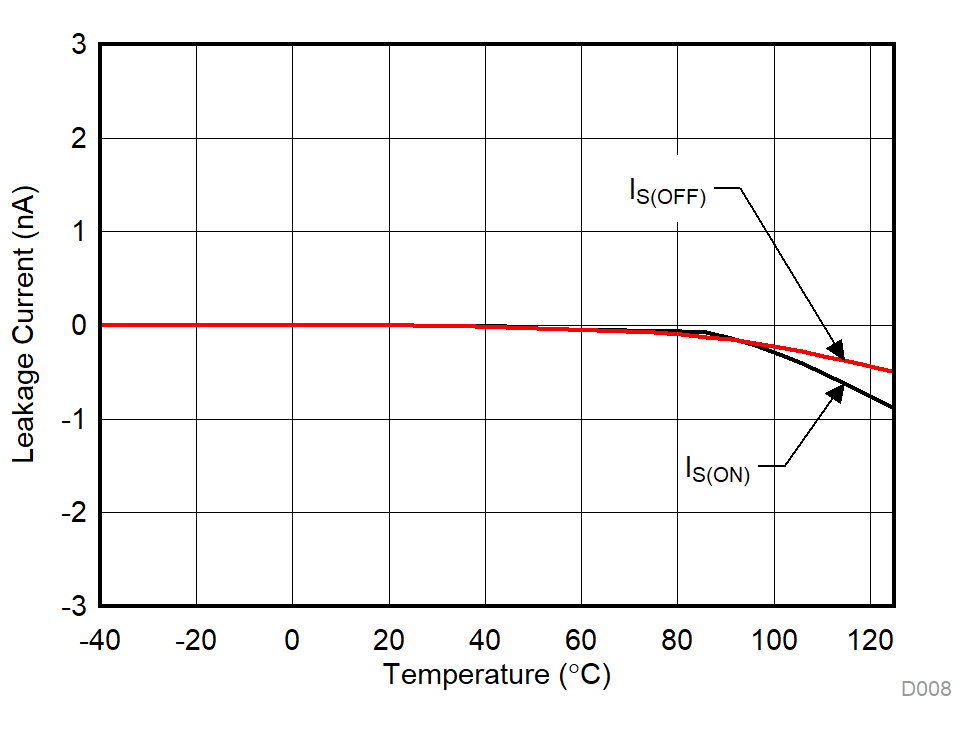

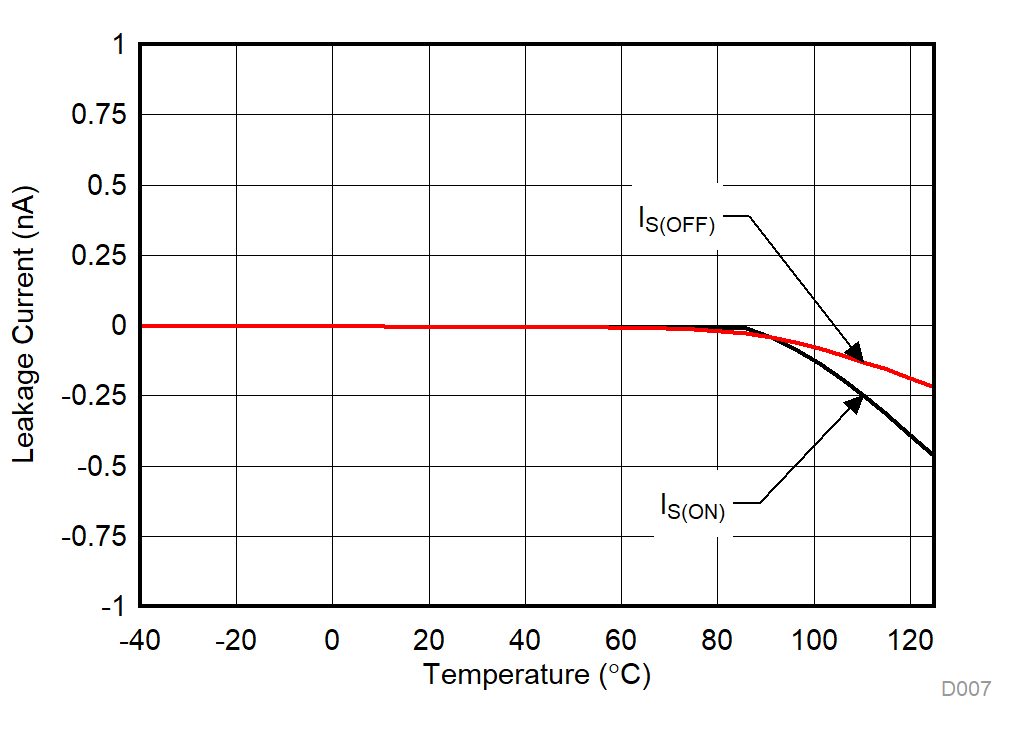

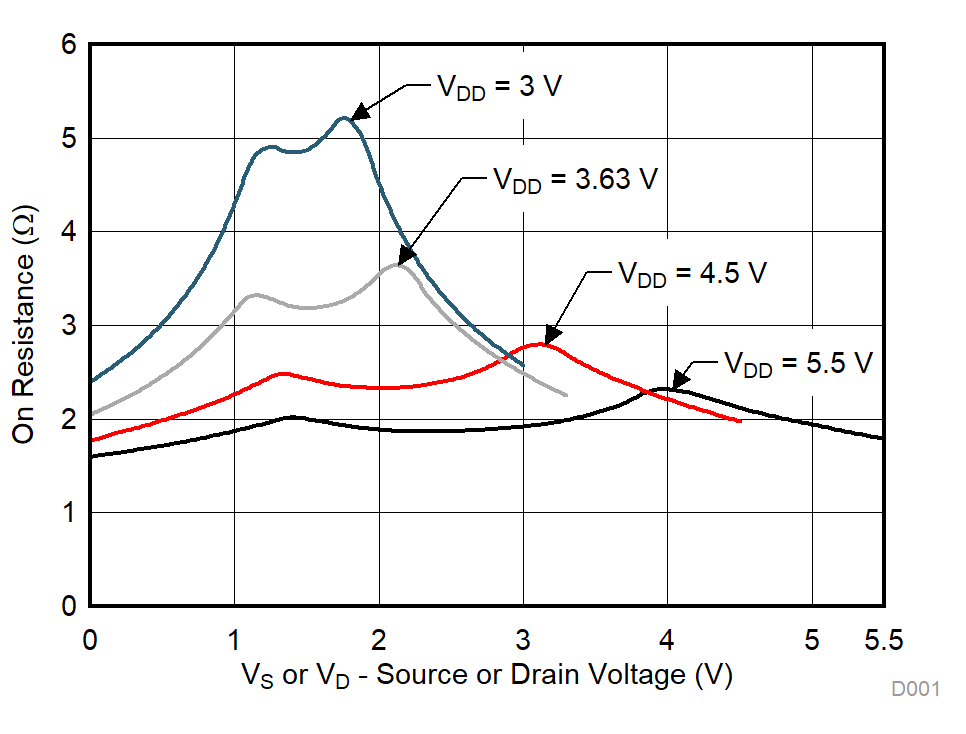

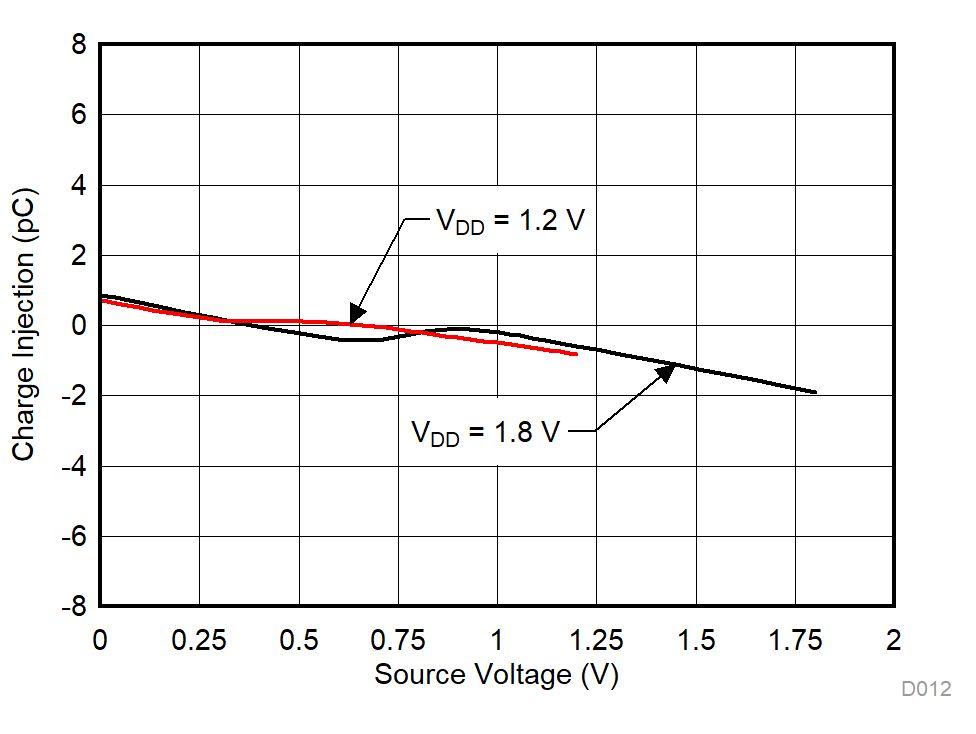

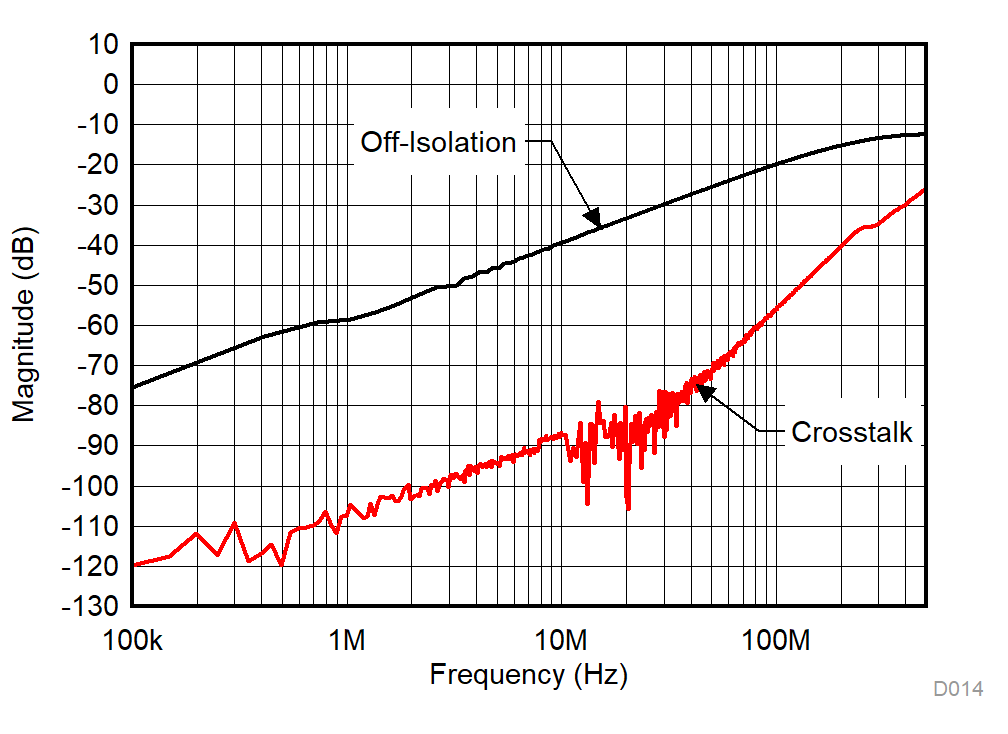

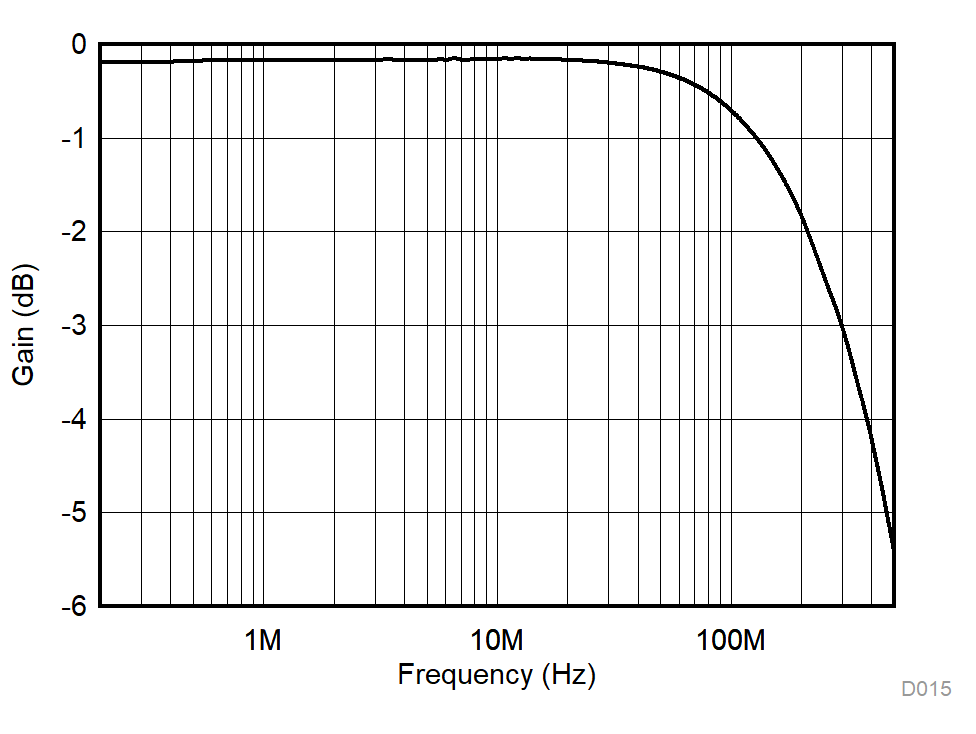

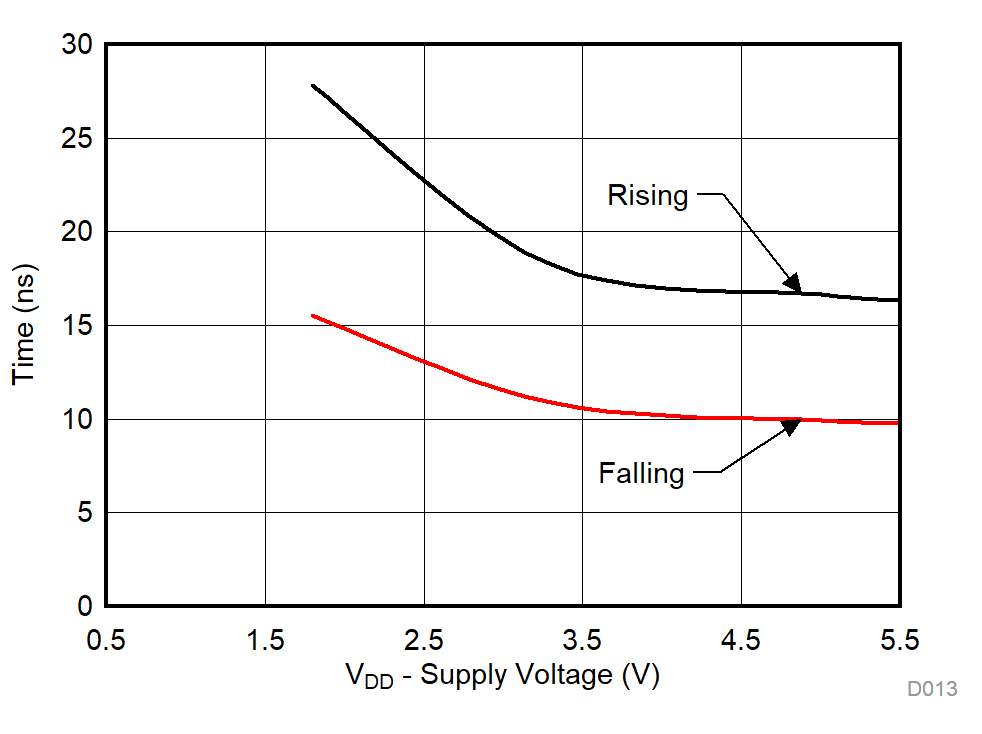

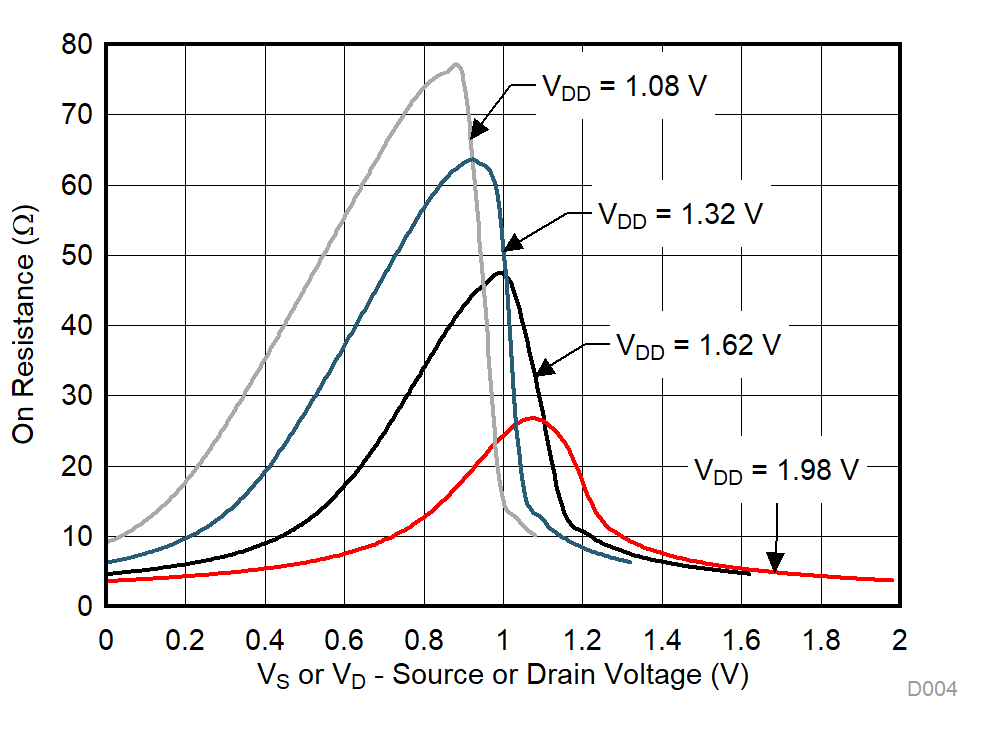

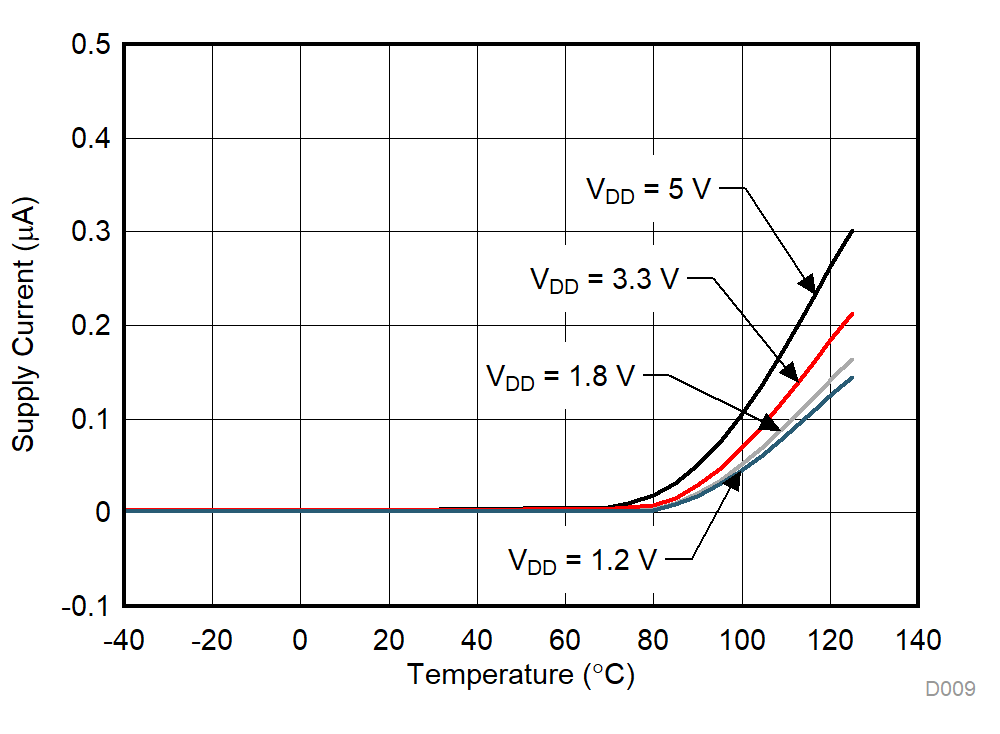

6.9 Typical Characteristics
at TA = 25°C, VDD = 5V (unless otherwise noted)
| TA = 25°C |
| VDD = 3.3V |
| TA = 25°C |
| VDD = 3.3V |
| VSEL = 5.5V |
| TA = -40°C to 125°C |
| TA = -40°C to +125°C |
| TA = -40°C to +125°C |
| VDD = 5V |
| TA = 25°C |
| VDD = 5V |
| VDD = 5V |
| TA = 25°C |
| TA = -40°C to 125°C |
| TA = -40°C to +125°C |
