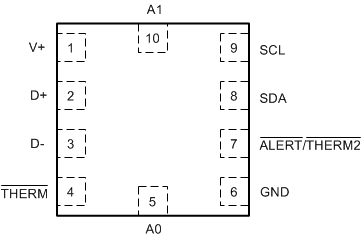

6 Pin Configuration and Functions
RUN Package
10-Pin WQFN
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| A0 | 5 | Digital input | Address select. Connect to GND, V+, or leave floating. |
| A1 | 10 | Digital input | Address select. Connect to GND, V+, or leave floating. |
| ALERT/THERM2 | 7 | Digital output | Interrupt or SMBus alert output. Can be configured as a second THERM output. Open-drain; requires a pullup resistor to a voltage between 1.7 V and 3.6 V. |
| D– | 3 | Analog input | Negative connection to remote temperature sensor |
| D+ | 2 | Analog input | Positive connection to remote temperature sensor |
| GND | 6 | Ground | Supply ground connection |
| SCL | 9 | Digital input | Serial clock line for SMBus. Input; requires a pullup resistor to a voltage between 1.7 V and 3.6 V if driven by an open-drain output. |
| SDA | 8 | Bidirectional digital input-output | Serial data line for SMBus. Open-drain; requires a pullup resistor to a voltage between 1.7 V and 3.6 V. |
| THERM | 4 | Digital output | Thermal shutdown or fan-control pin. Open-drain; requires a pullup resistor to a voltage between 1.7 V and 3.6 V. |
| V+ | 1 | Power supply | Positive supply voltage, 1.7 V to 3.6 V |
