6.7 Typical Characteristics
At TA = 25°C and V+ = 3.3 V, unless otherwise noted.

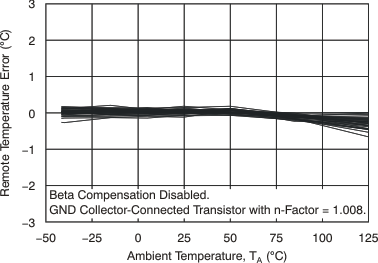

Figure 1. Remote Temperature Error vs Temperature

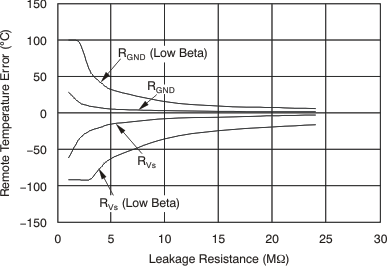

Figure 3. Remote Temperature Error vs Leakage Resistance

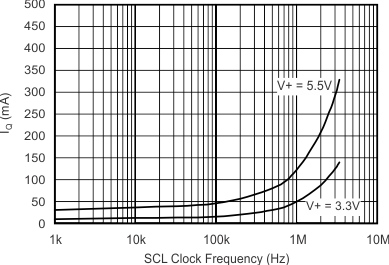

Figure 5. Shutdown Quiescent Current
vs SCL Clock Frequency

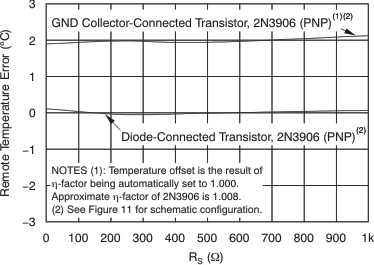

Figure 7. Remote Temperature Error vs Series Resistance
| At 25°C, V+ = 3.3 V, RS = 0 Ω |

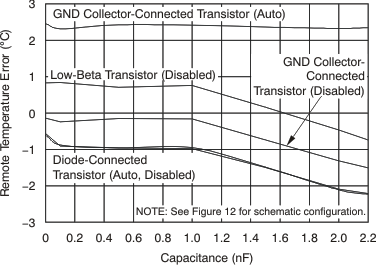

vs Differential Capacitance

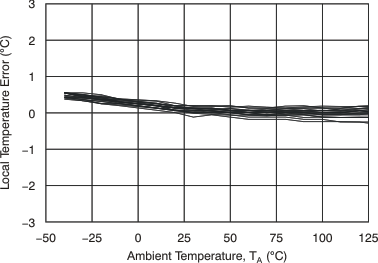

Figure 2. Local Temperature Error vs Temperature

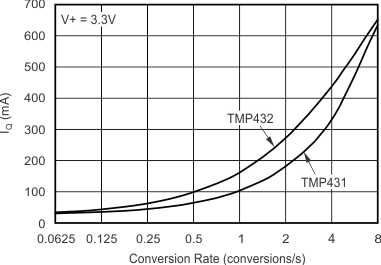

Figure 4. Quiescent Current vs Conversion Rate

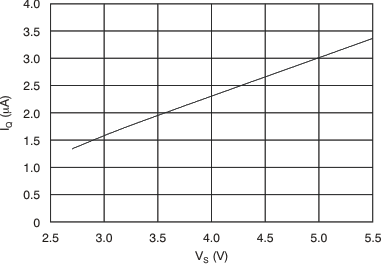

Figure 6. Shutdown Quiescent Current vs Supply Voltage

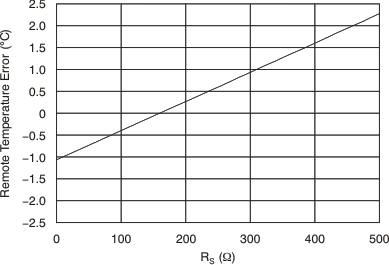

Figure 8. Remote Temperature Error vs Series Resistance
(Low-Beta Transistor)
| At 25°C, V+ = 3.3 V, RS = 0 Ω, Beta = 011 (AUTO) |

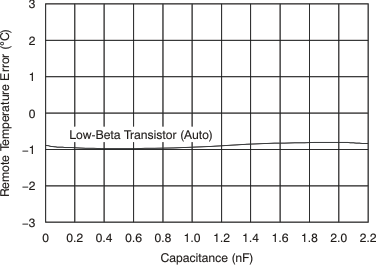

vs Differential Capacitance With 45-nm CPU
