8.2 Typical Low-Side Current Sense Application

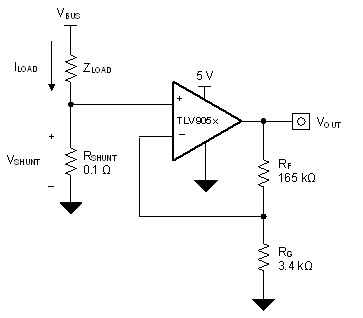

Figure 8-1 shows the TLV905x configured in a low-side current sensing application.
Figure 8-1 TLV905x in a Low-Side, Current-Sensing Application
