5.8 Typical Characteristics
at TA = 25°C, VS = 5.5V, RL = 10kΩ connected to VS / 2, VCM = VS / 2, and VOUT = VS / 2 (unless otherwise noted)

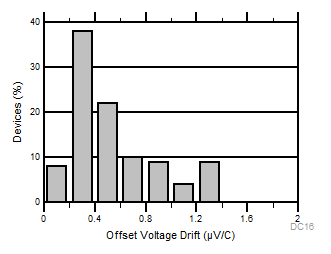

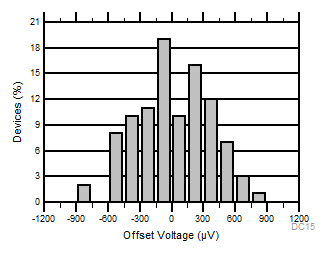

| VS = 5.5V |

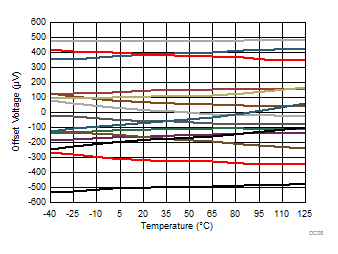

Figure 5-3 Offset Voltage vs Temperature

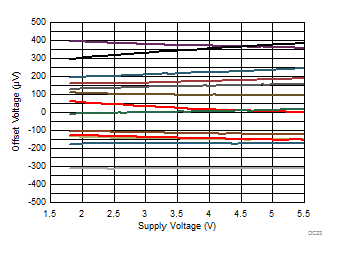

Figure 5-5 Offset Voltage vs Power Supply

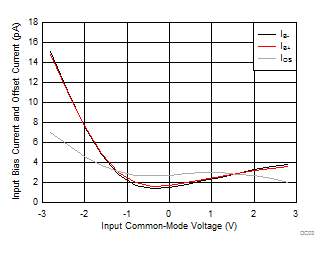

Figure 5-7 Input
Bias Current and Offset Current vs Common-Mode Voltage

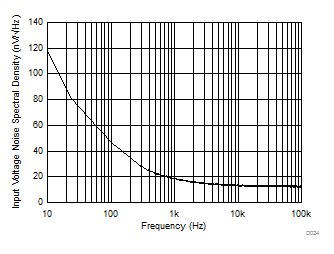

Figure 5-9 Input
Voltage Noise Spectral Density vs Frequency

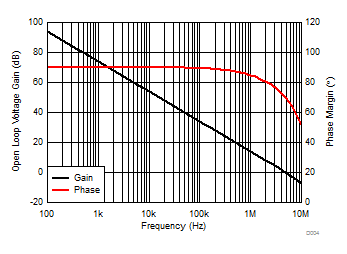

Figure 5-13 Open
Loop Voltage Gain and Phase vs Frequency

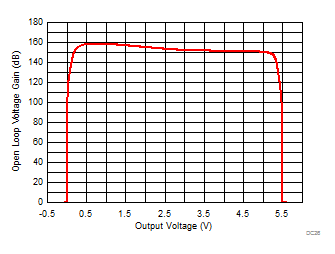

Figure 5-15 Open
Loop Voltage Gain vs Output Voltage

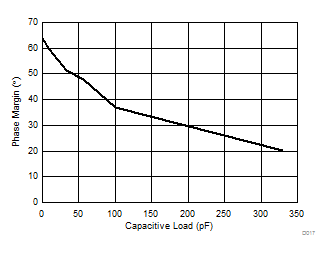

Figure 5-17 Phase
Margin vs Capacitive Load

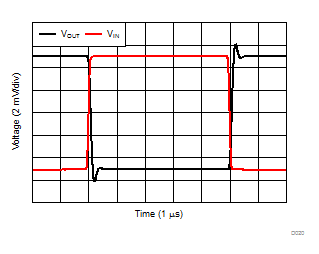

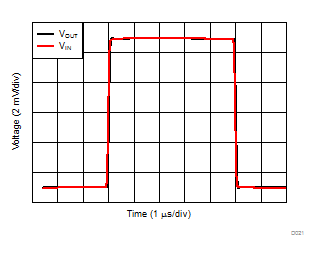

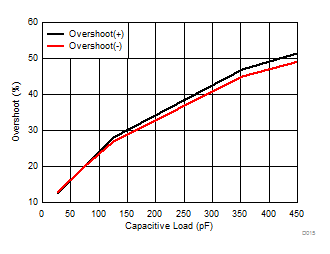

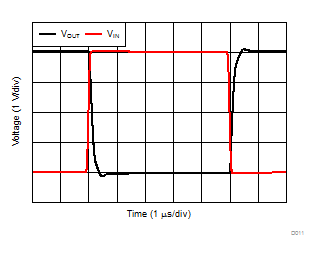

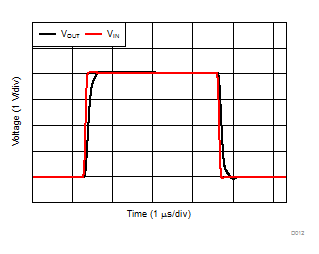

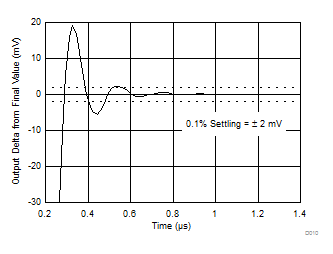

| G = +1V/V | ||
| VOUT step = 100mVp-p | ||
| G = +1V/V | ||
| VOUT step = 10mVp-p |
| G = +1V/V | ||
| VOUT step = 4Vp-p |
| CL = 100pF | G = +1V/V | |

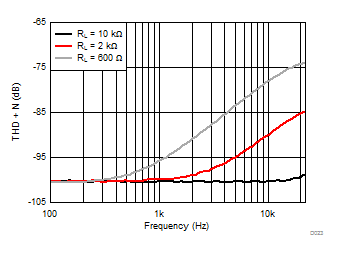

| VOUT = 0.5VRMS | G = +1 | VCM = 2.5V |
| BW = 80kHz |

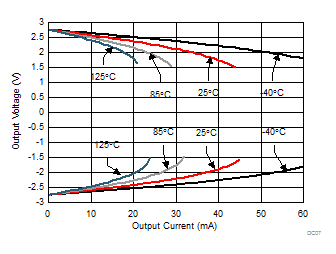

Figure 5-31 Output Voltage Swing vs Output Current
Figure 5-33 Short-Circuit Current vs Temperature

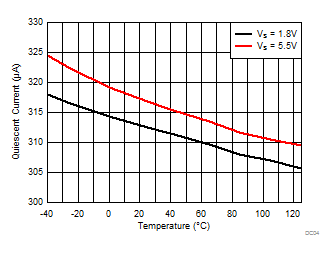

Figure 5-35 Quiescent Current vs Temperature
| PRF = –10dBm | ||
| VS = 5.5V, TA = –40°C to 125°C |

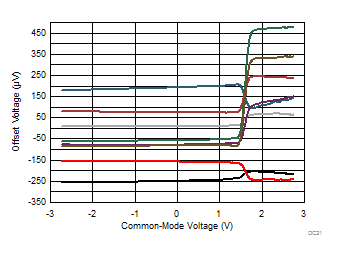

Figure 5-4 Offset Voltage vs Common-Mode Voltage
Figure 5-6 Input
Bias Current vs Temperature

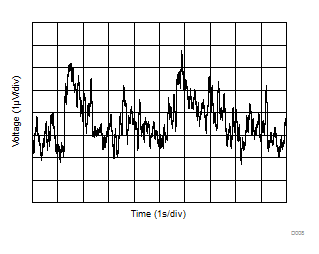

Figure 5-8 0.1Hz
to 10Hz Input Voltage Noise

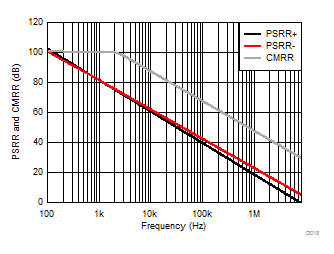

Figure 5-10 CMRR
and PSRR vs Frequency (Referred to Input)
| VS = 1.8V to 5.5V |

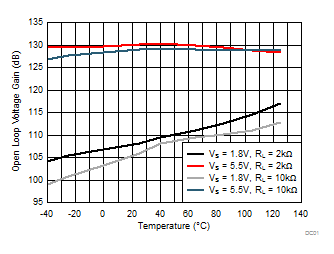

Figure 5-14 Open
Loop Voltage Gain vs Temperature

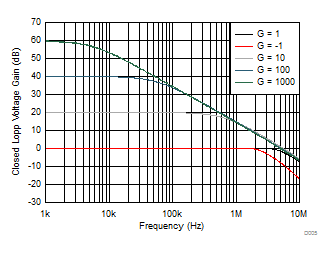

Figure 5-16 Closed Loop Voltage Gain vs Frequency

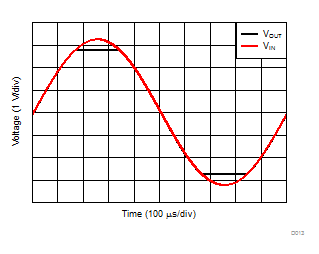

Figure 5-18 No
Phase Reversal

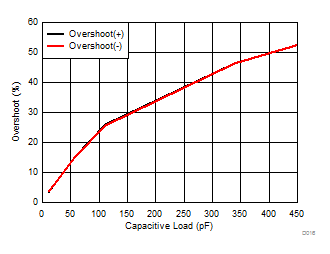

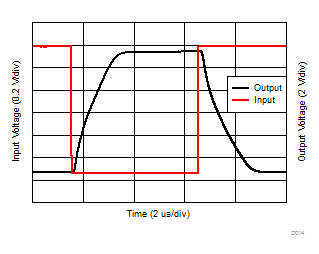

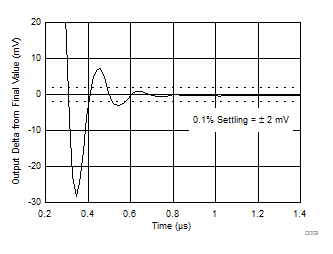

| G = –1V/V | ||
| VOUT step = 100mVp-p |
| G = –10V/V |
| G = –1V/V | ||
| VOUT step = 10mVp-p |
| G = –1V/V | ||
| VOUT step = 4Vp-p |
| CL = 100pF | G = +1V/V | |

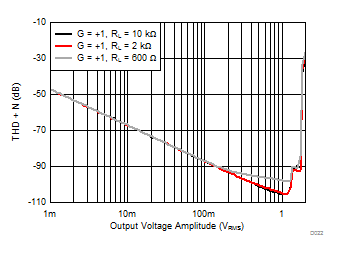

| f = 1kHz | G = +1 | VCM = 2.5V |
| BW = 80kHz |

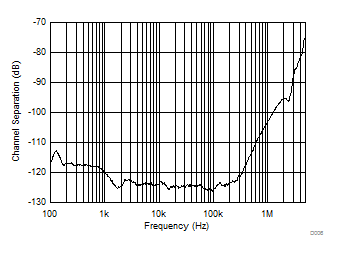

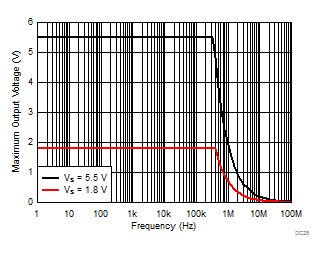

Figure 5-32 Maximum Output Voltage vs Frequency and Supply Voltage

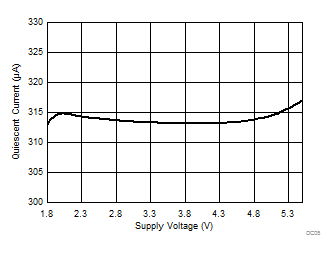

Figure 5-34 Quiescent Current vs Supply Voltage
Figure 5-36 Open-Loop Output Impedance vs Frequency
| PRF = –10dBm | ||
