9.1.2 Monitoring VDD
Many applications monitor the same rail that is powering VDD. In these applications the resistor divider is simply connected to the VDD rail.

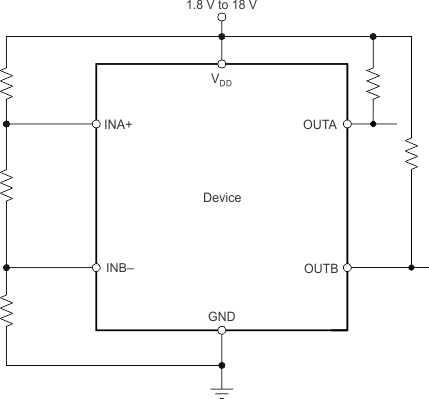

Figure 17. Monitoring the Same Voltage as VDD
