8.2.2.3 Application Curve

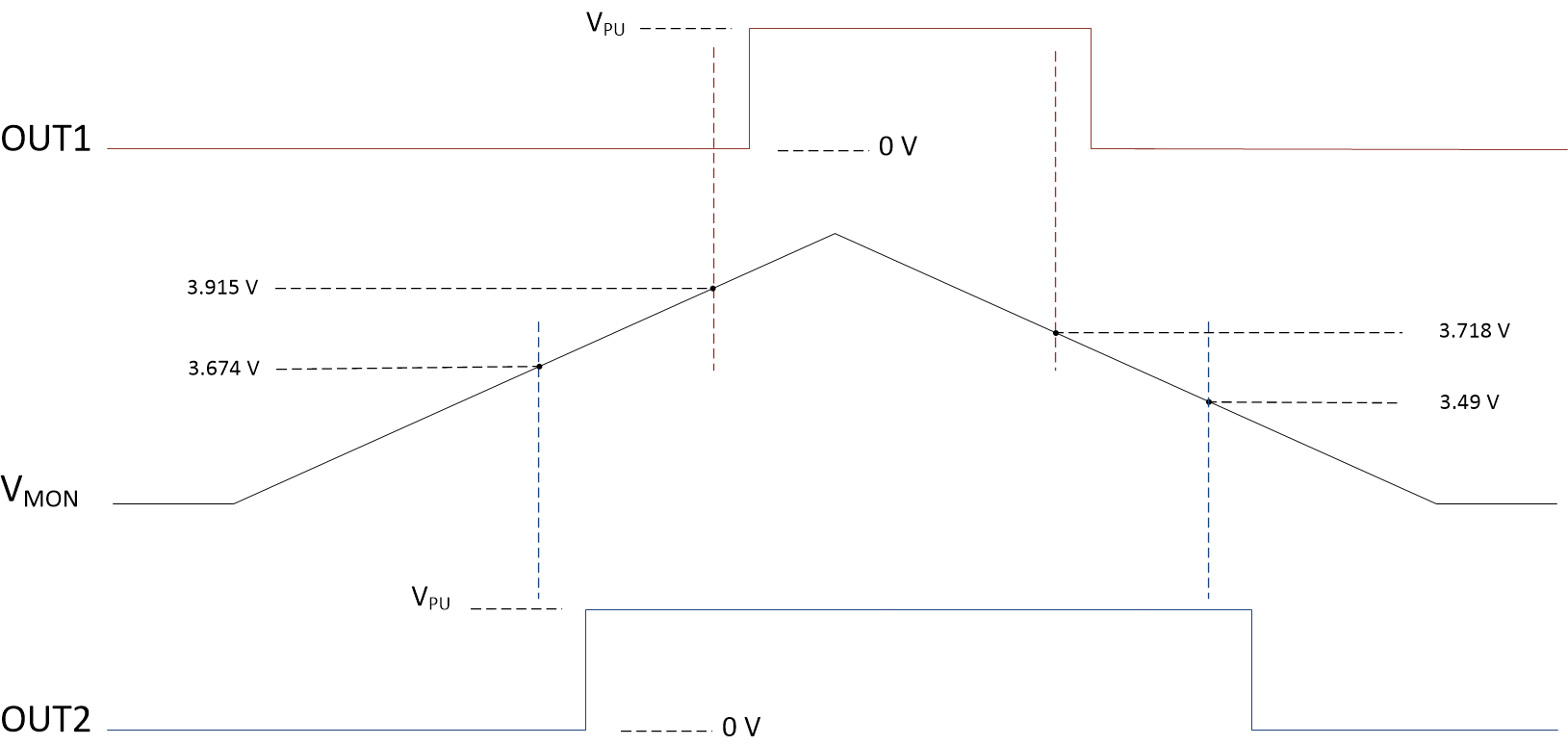

Figure 26 shows the simulated results of the early warning detection circuit. OUT2 provides the early warning alert whereas OUT1 provides the warning alert.
Figure 26. Early Warning Detection
