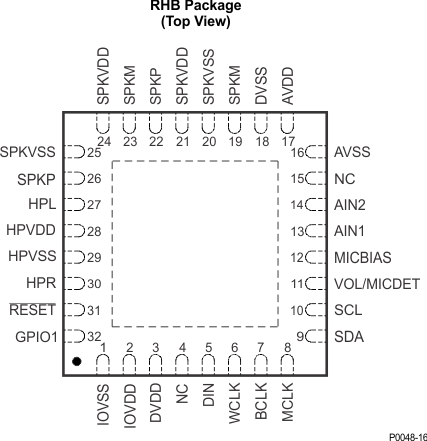

3 Pin Configuration and Functions
3.1 Pin Attributes
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| AIN1 | 13 | I | Analog input No. 1 routed to output mixer |
| AIN2 | 14 | I | Analog input No. 2 routed to output mixer |
| AVDD | 17 | - | Analog power supply |
| AVSS | 16 | - | Analog ground |
| BCLK | 7 | I/O | Audio serial bit clock |
| DIN | 5 | I | Audio serial data input |
| DVDD | 3 | - | Digital power – digital core |
| DVSS | 18 | - | Digital ground |
| GPIO1 | 32 | I/O | General-purpose input/output pin and multifunction pin |
| HPL | 27 | O | Left-channel headphone/line driver output |
| HPR | 30 | O | Right-channel headphone/line driver output |
| HPVDD | 28 | - | Headphone/line driver and PLL power |
| HPVSS | 29 | - | Headphone/line driver and PLL ground |
| IOVDD | 2 | - | Interface power |
| IOVSS | 1 | - | Interface ground |
| MCLK | 8 | I | External master clock |
| MICBIAS | 12 | - | Microphone bias voltage |
| NC | 4, 15 | I | No connection |
| RESET | 31 | I | Device reset |
| SCL | 10 | I/O | I2C control bus clock input |
| SDA | 9 | I/O | I2C control-bus data input |
| SPKM | 19, 23 | I/O | Cass-D speaker driver inverting output |
| SPKP | 22, 26 | Class-D speaker driver noninverting output | |
| SPKVDD | 21, 24 | Class-D speaker driver power supply | |
| SPKVSS | 20, 25 | Class-D speaker driver power-supply ground | |
| VOL/MICDET | 11 | I | Volume control or headphone detection. Note that microphone detection is also available on devices that have an ADC. |
| WCLK | 6 | I/O | Audio serial word clock |
