7 Parameter Measurement Information
 |

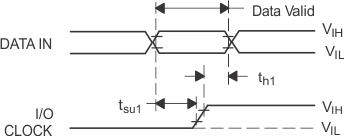

 Figure 26. DATA IN and I/O CLOCK Voltage
|
 Waveforms |

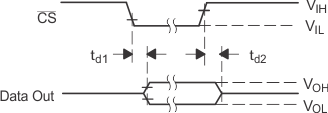

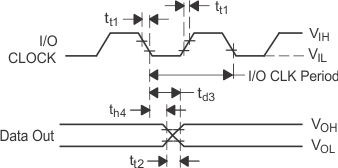

 Figure 28. I/O CLOCK and DATA OUT Voltage Waveforms
|

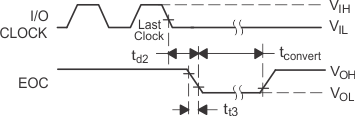

 Figure 29. I/O CLOCK and EOC Voltage Waveforms
|

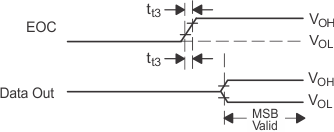

 Figure 30. EOC and DATA OUT Voltage Waveforms
|

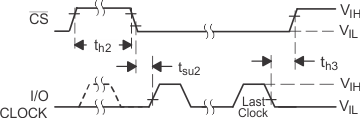

 Figure 31. CS and EOC Waveforms
|
 Figure 32. I/O CLOCK and DATA OUT Voltage
|

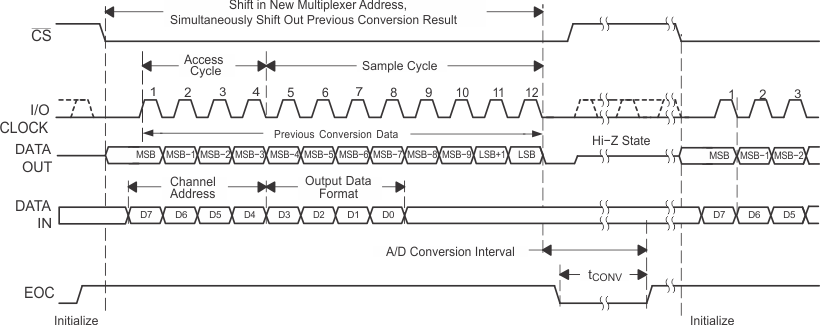

Figure 33. Timing for 12-Clock Transfer Using CS With DATA OUT Set for MSB First
NOTE:
To minimize errors caused by noise at CS, the internal circuitry waits for a setup time after the CS falling edge before responding to control input signals. Therefore, no attempt should be made to clock in an address until the minimum CS setup time has elapsed.

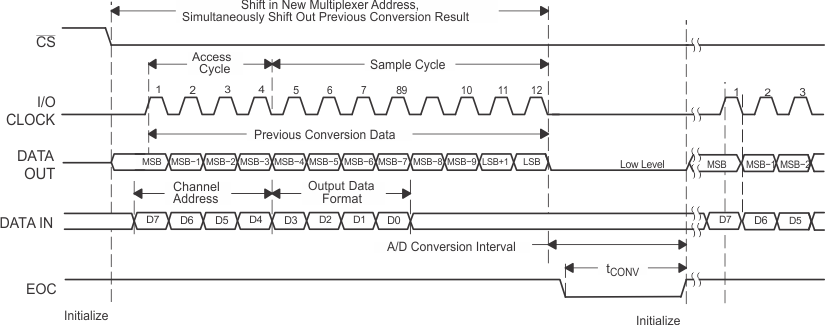

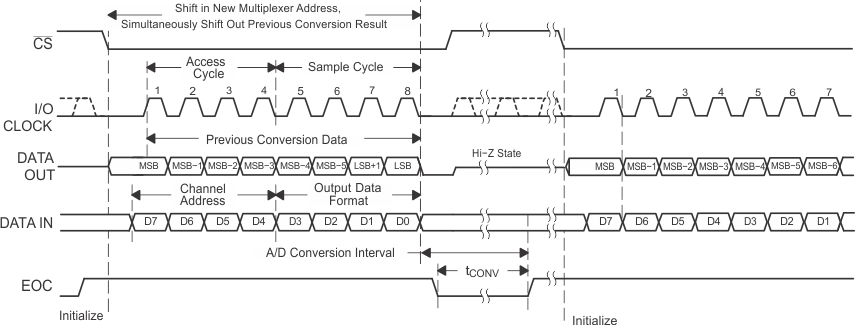

Figure 35. Timing for 8-Clock Transfer Using CS With DATA OUT Set for MSB First
NOTE:
To minimize errors caused by noise at CS, the internal circuitry waits for a setup time after the CS falling edge before responding to control input signals. Therefore, no attempt should be made to clock in an address until the minimum CS setup time has elapsed.

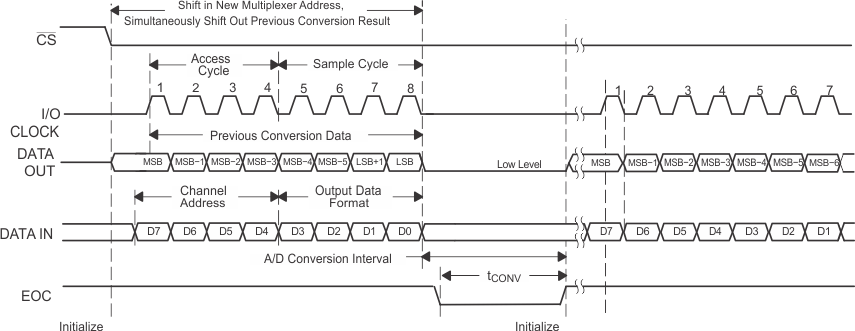

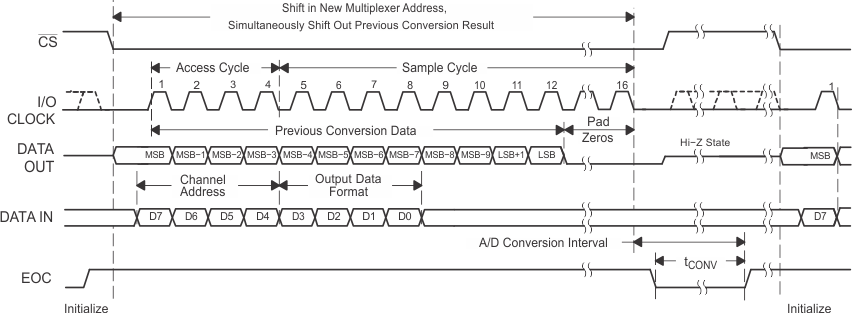

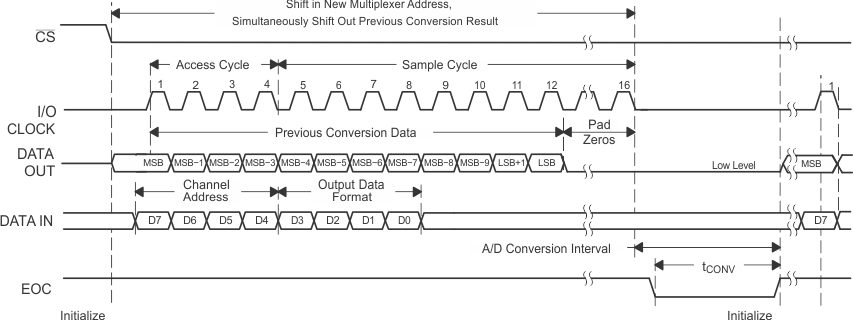

Figure 37. Timing for 16-Clock Transfer Using CS With DATA OUT Set for MSB First
NOTE:
To minimize errors caused by noise at CS, the internal circuitry waits for a setup time after the CS falling edge before responding to control input signals. Therefore, no attempt should be made to clock in an address until the minimum CS setup time has elapsed.
