1 特性
- 適用于汽車電子 應用
- 符合 AEC-Q100 標準
- 器件溫度等級 1：環境運行溫度范圍為 -40°C 至 125°C
- 器件人體放電模式 (HBM) 靜電放電 (ESD) 分類等級 H3A
- 器件組件充電模式 (CDM) ESD 分類等級 C4B
- 12 條功率雙擴散金屬氧化物半導體 (DMOS) 晶體管輸出通道
- 最大恒定電流高達 75mA，可通過外部電阻進行編程
- 最高輸出電壓高達 7V
- 最高壓降電壓：
- 50mA 時為 0.75V/通道
- 75mA 時為 1.2V/通道
- 出色的輸出恒流精度：
- 通道間的差異：< ±3%（最大值）
- 器件間的差異：< ±3%（最大值）
- 每通道 8 位、256 步長線性點校正
- 支持靈活的外部脈寬調制 (PWM) 調光
- 6 個具有頻率監控功能的 PWM 輸入
- 通過串行外設接口 (SPI) 實現可編程通道映射
- 保護和診斷
- 相鄰引腳短路檢測
- 在激活和禁用狀態下可檢測開路負載、短接至地以及發光二極管 (LED) 短路
- 熱預警與熱關斷
- 開漏錯誤報告
- LED 弱電源診斷
- 參考電阻開路或短路檢測與保護
- 通過 SPI 寄存器鎖定實現內容保護
- SPI 完整性診斷的強制錯誤
- 小型熱有效的 28 引腳散熱薄型小外形尺寸 (HTSSOP) 封裝 PowerPAD™封裝
2 應用范圍
- 儀表板信號裝置指示燈
- 面板及按鈕背光照明
- 條形圖 LED
- 變速器 PRNDL 檔位指示燈
- 連續轉向指示燈
3 說明
在汽車儀表板及其他安全性能至關重要的 LED 驅動器 應用中，為了確保 LED 亮度與色溫的一致性，針對多通道 LED 的性能需求日益提升。系統級安全考量因素要求檢測各種故障情況，因此會加深系統的復雜程度。
TLC6C5712-Q1 器件是一款 12 通道恒定灌電流 LED 驅動器。憑借 8 位點校正功能和高精度輸出電流，TLC6C5712-Q1 器件成為校正 LED 亮度和色溫變化的理想解決方案。該器件針對每個組件提供高級保護和診斷功能，可提升系統級穩定性并簡化面向安全的設計。六個具有可編程映射功能的 PWM 輸入支持多種 LED 顏色調光配置并提供高調光比率。具有診斷功能的 16 位串行外設接口 (SPI) 支持以菊花鏈方式連接多個器件并簡化系統級設計。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| TLC6C5712-Q1 | HTSSOP (28) | 4.40mm x 9.70mm |
- 要了解所有可用封裝，請見數據表末尾的可訂購產品附錄。

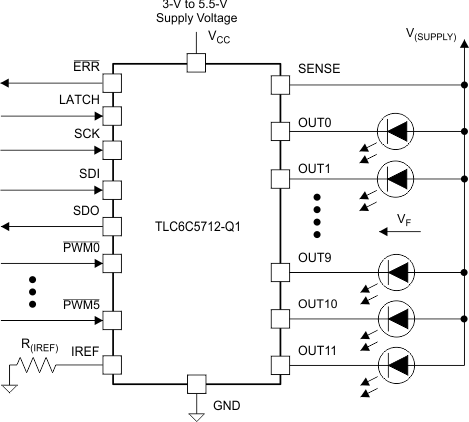

典型應用電路原理圖
