7.7 Switching Characteristics
At VCC = VR = 2.8 V, VG/B = 3.8 V and TA = –40°C to +85°C; Typical values are at
TA = 25°C (unless otherwise
specified)
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| tr | Rise time (SOUT) | VCC = 3.3 V, CSOUT = 30 pF | 2 | 10 | ns | |
| tf | Fall time (SOUT) | VCC = 3.3 V, CSOUT = 30 pF | 2 | 10 | ns | |
| tpd(0) | Propagation delay | SCLK↑ to SOUT↑↓, full temperature, CSOUT = 30 pF | 3.5 | 14.2 | ns | |
| tpd(1) | Propagation delay | SCLK↓ to SOUT↑↓, full temperature, CSOUT = 30 pF | 3.5 | 14.2 | ns | |
(1). Input pulse rise and fall
time is 2 ns typically.

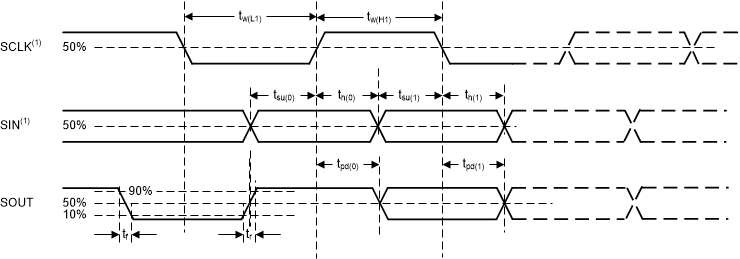

Figure 7-1 Timing and Switching Diagram (Dual Edge)
