8.2.3 Application Curves
| VCC = 5 V | Bus Load = 5 kΩ||2.5 nF | |
| 250 kbps | SLR = VIO |

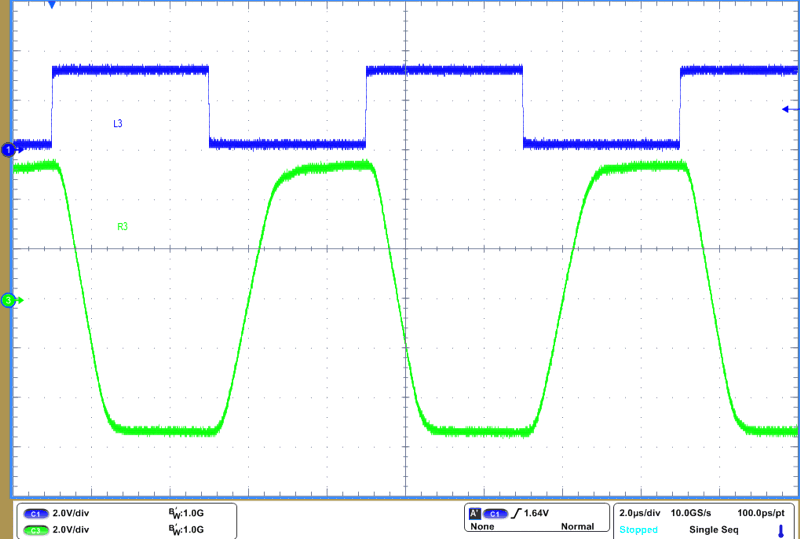

| VCC = 3.3 V | Bus Load = 5 kΩ||2.5 nF | |
| 250 kbps | SLR = VIO |

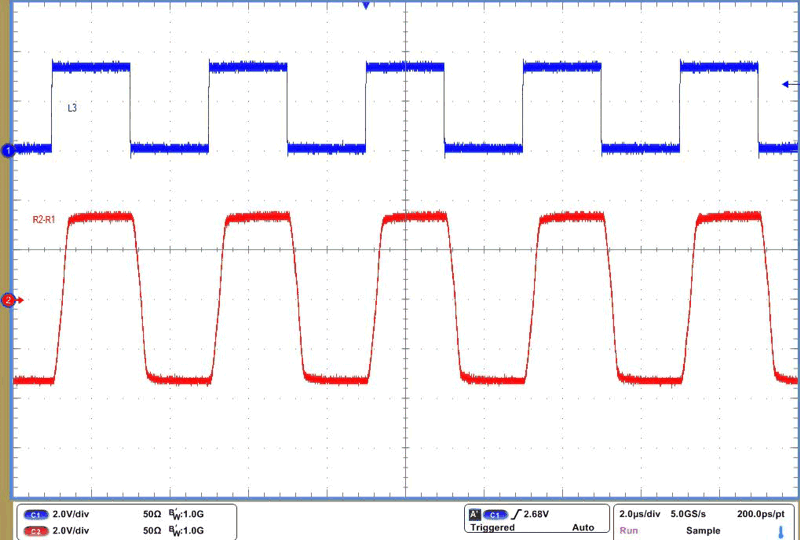

| VCC = 5 V | Bus Load = 54 Ω||50 pF | |
| SLR = VIO | Square wave at 500 kbps |

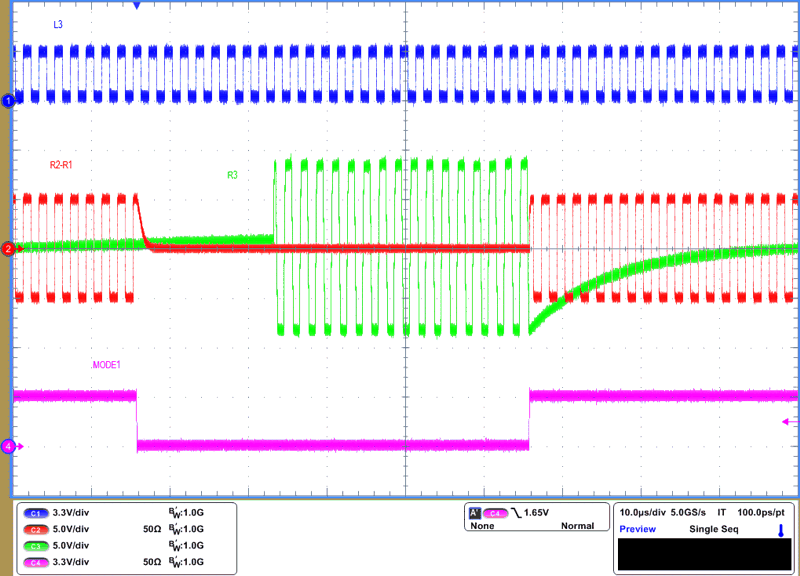

| VCC = 5 V | L3 = 1 Mbps square wave | |
| SLR = GND | MODE1 toggled at 10 khz |
| VCC = 5 V | Bus Load = 5 kΩ||1 nF | |
| 1 Mbps | SLR = GND |
| VCC = 3.3 V | RL = 5 kΩ||1 nF | |
| 1 kbps | SLR = GND |

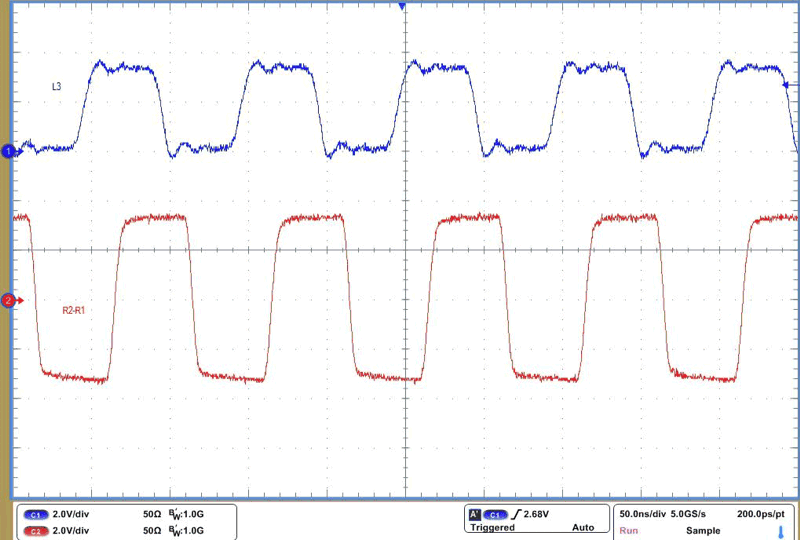

| VCC = 5 V | Bus Load = 54 Ω||50 pF | |
| SLR = GND | Square wave at 20 kbps |
| VCC = 5 V | L3 = GND | |
| SHDN toggled |
