8.2.3 應用曲線

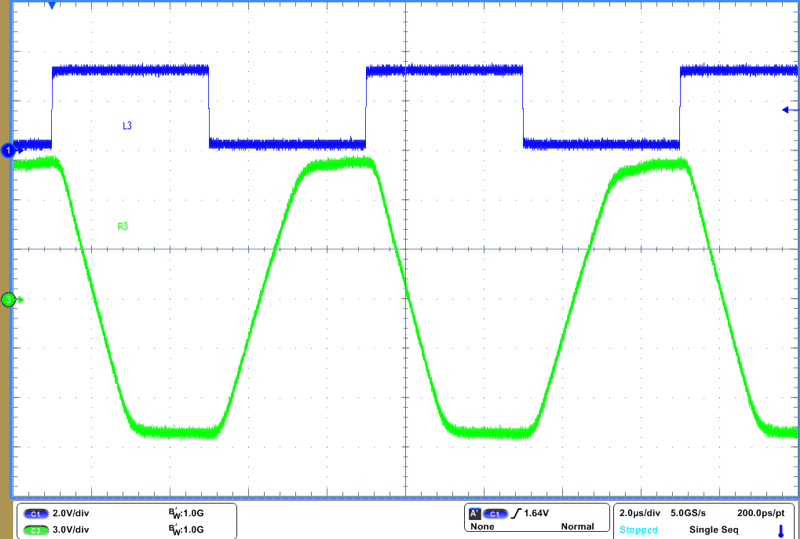

| VCC = 5V | 總線負載 = 5kΩ||2.5nF | |
| 250kbps | SLR = VIO |
| VCC = 3.3V | 總線負載 = 5kΩ||2.5nF | |
| 250kbps | SLR = VIO |

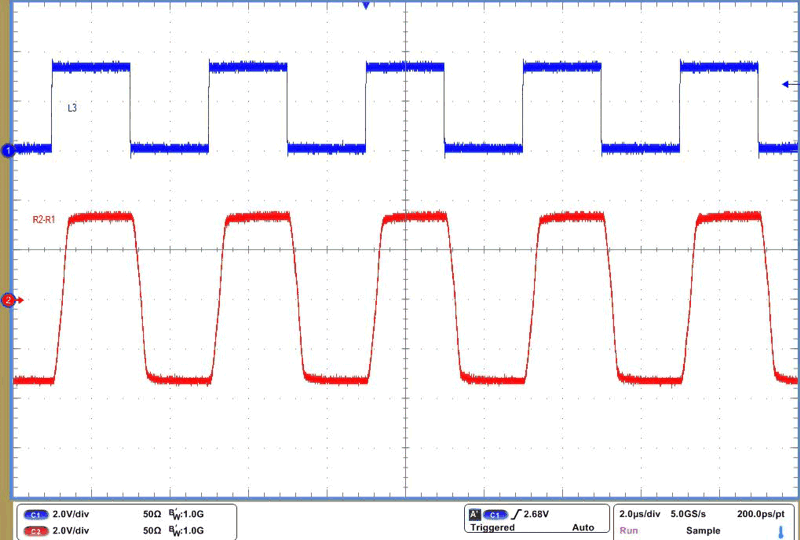

| VCC = 5V | 總線負載 = 54Ω||50pF | |
| SLR = VIO | 500kbps 時的方波 |

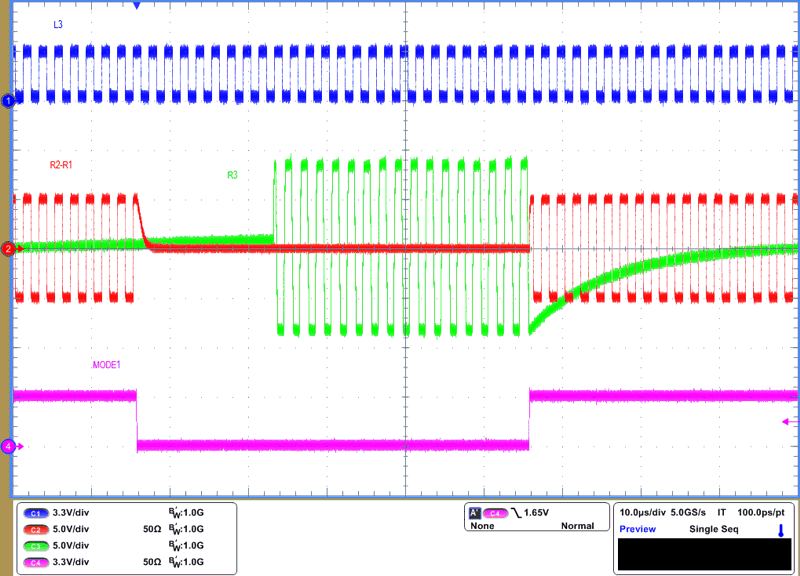

| VCC = 5V | L3 = 1Mbps 方波 | |
| SLR = GND | MODE1 以 10kHz 頻率切換 |

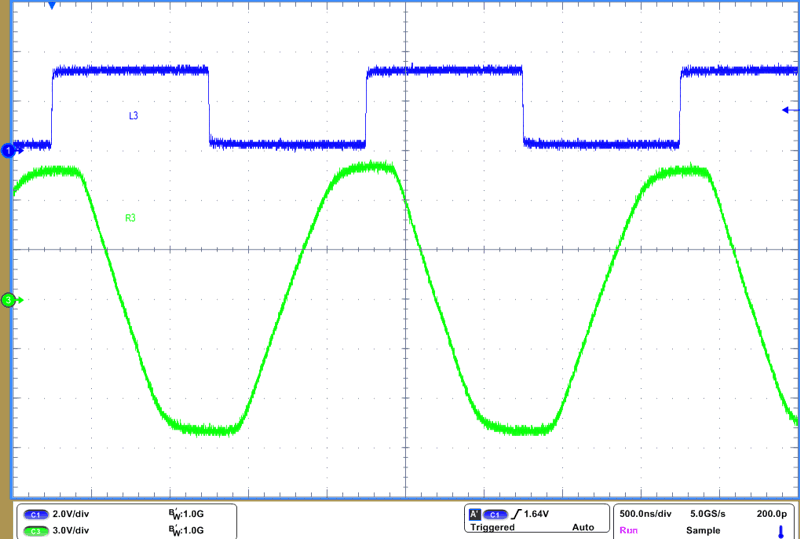

| VCC = 5V | 總線負載 = 5kΩ||1nF | |
| 1Mbps | SLR = GND |

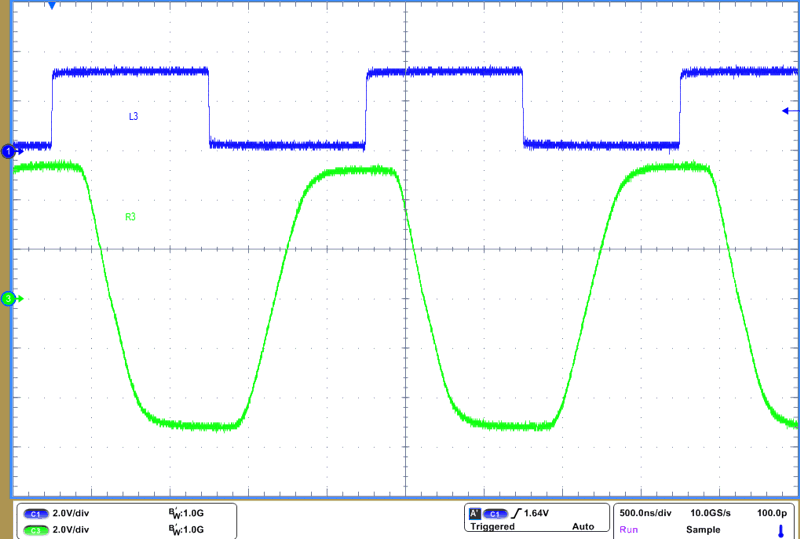

| VCC = 3.3V | RL = 5kΩ||1nF | |
| 1kbps | SLR = GND |
| VCC = 5V | 總線負載 = 54Ω||50pF | |
| SLR = GND | 20kbps 時的方波 |

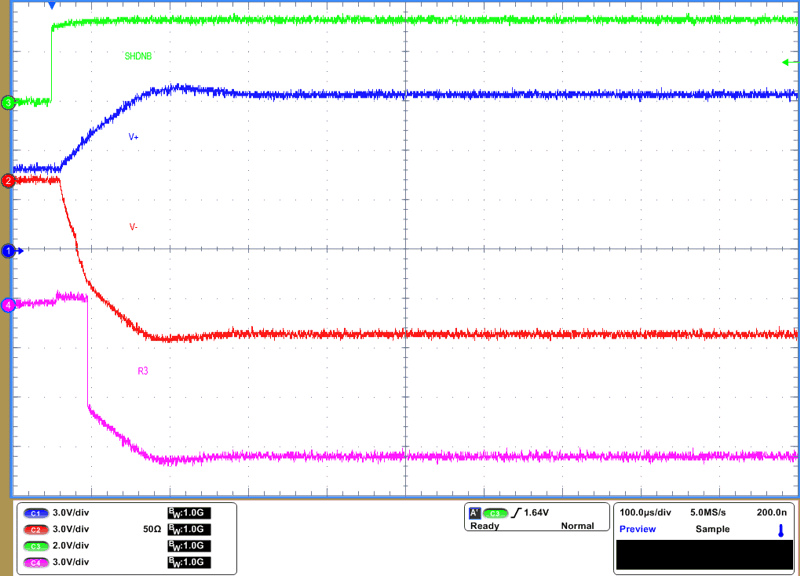

| VCC = 5V | L3 = GND | |
| SHDN 已切換 |
