8.3.2 Electrical Fast Transient (EFT) Protection
Inductive loads such as relays, switch contactors, or heavy-duty motors can create high-frequency bursts during transition. The IEC 61000-4-4 test is intended to simulate the transients created by such switching of inductive loads on AC power lines. Figure 17 shows the voltage waveforms in to 50-Ω termination as defined by the IEC standard.

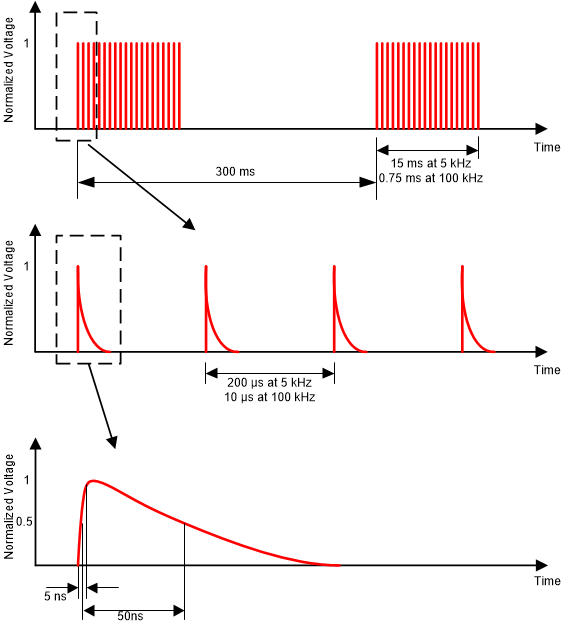

Figure 17. EFT Voltage Waveforms Internal ESD protection circuits of the THVD1428 protect the transceiver against EFT ±4 kV.
