6.3.5 Fault Pin (TCAN337)
If one or more of the faults (TXD-Dominant Timeout, RXD dominant Timeout, Thermal Shutdown or Undervoltage Lockout) occurs, the FAULT pin (open-drain) turns off, resulting in a high level when externally pulled up to VCC supply.

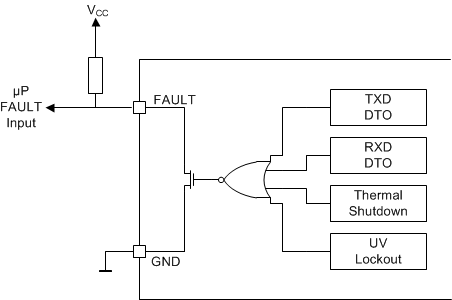

Figure 6-1 FAULT Pin Function Diagram and Application
