7 Parameter Measurement Information
Figure 7-1 Supply
Test Circuit

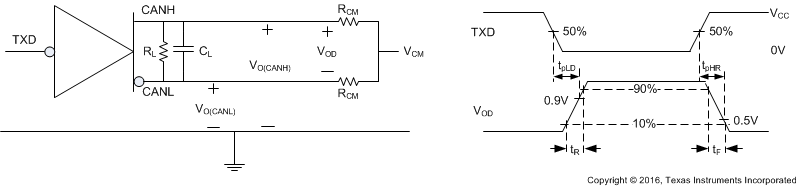

Figure 7-2 Driver
Test Circuit and Measurement

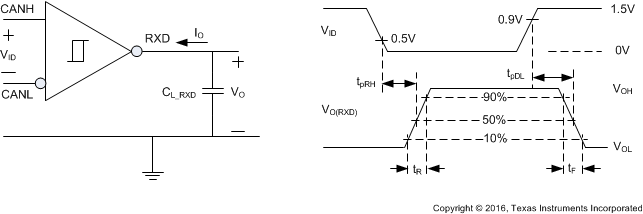

Figure 7-3 Receiver
Test Circuit and Measurement

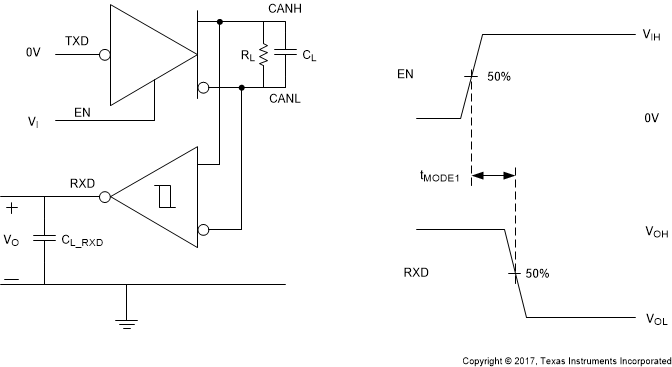

Figure 7-4 tMODE1 Test Circuit and Measurement, Silent Mode to Normal
Mode

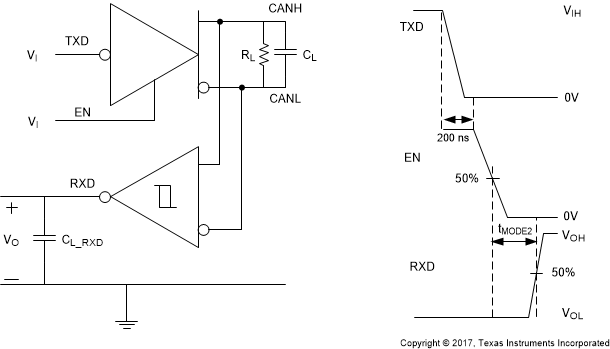

Figure 7-5 tMODE2 Test Circuit and Measurement, Normal Mode to Silent
Mode

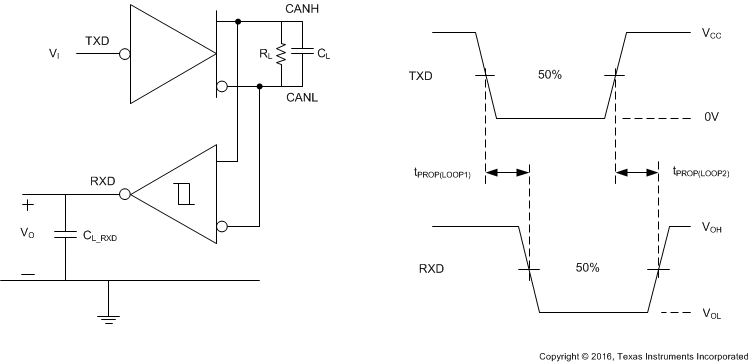

Figure 7-6 tPROP(LOOP) Test Circuit and Measurement

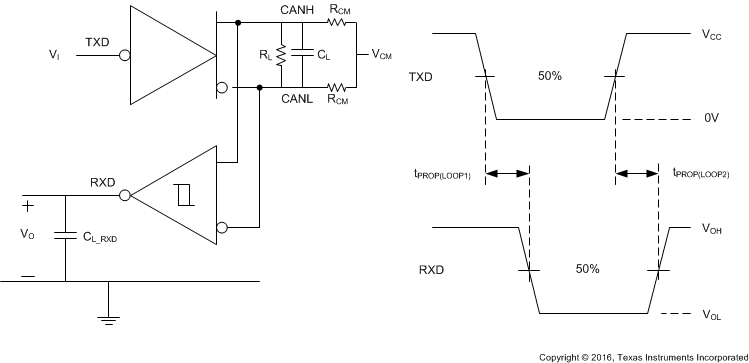

Figure 7-7 tPROP(LOOP) Test Circuit and Measurement with CM Range

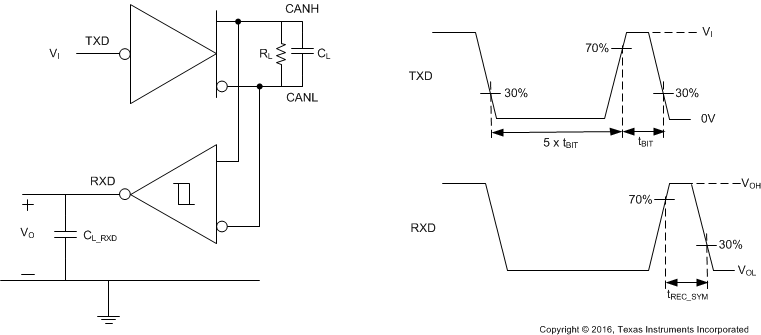

Figure 7-8 Loop
Delay Symmetry Test Circuit and Measurement

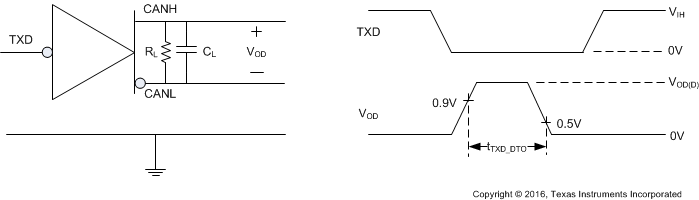

Figure 7-9 TXD
Dominant Timeout Test Circuit and Measurement

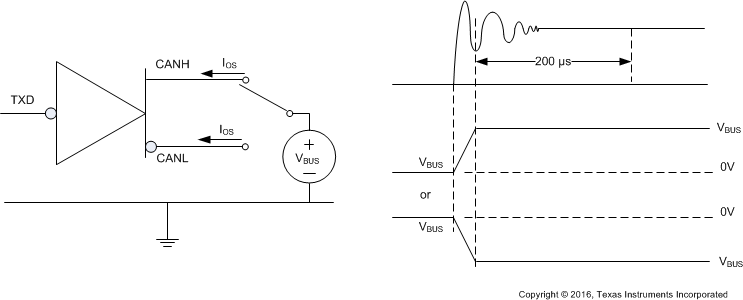

Figure 7-10 Driver
Short-Circuit Current Test and Measurement

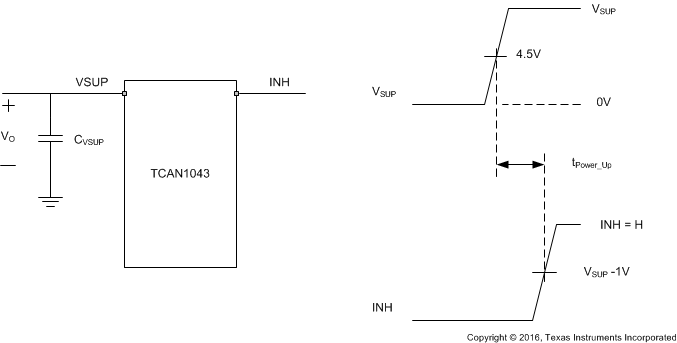

Figure 7-11 tPower_Up Timing Measurement

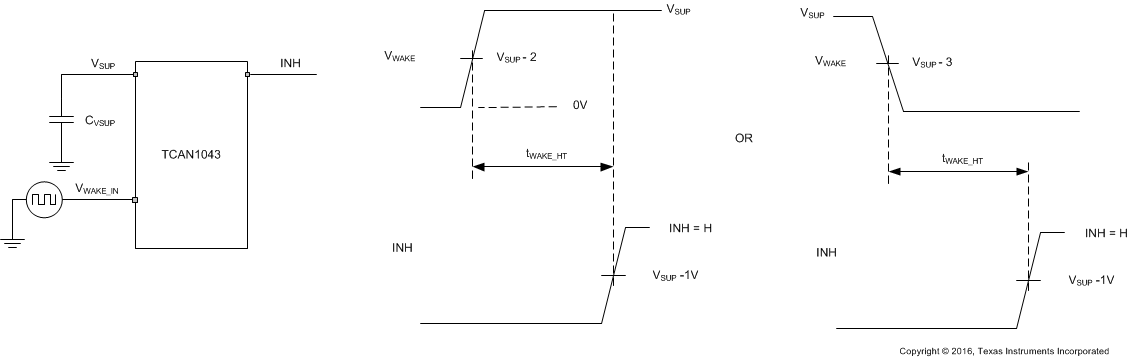

Figure 7-12 tWAKE_HT While Monitoring INH Output

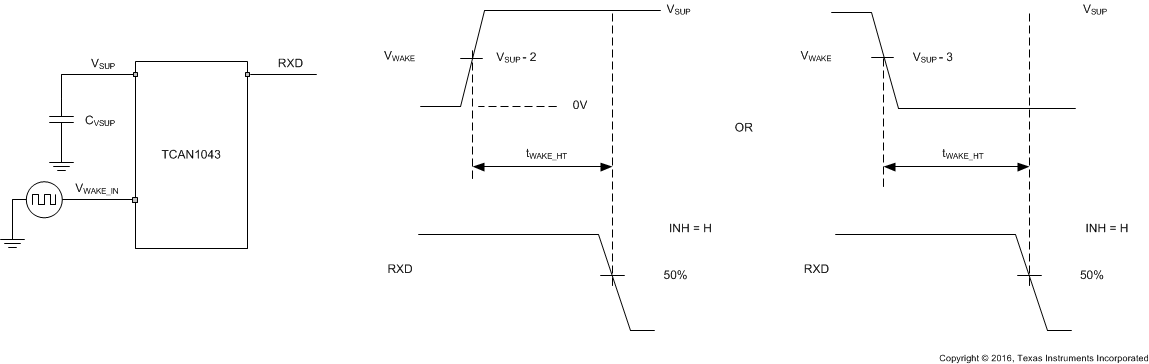

Figure 7-13 tWAKE_HT While Monitoring RXD Output
