6.9 Typical Characteristics

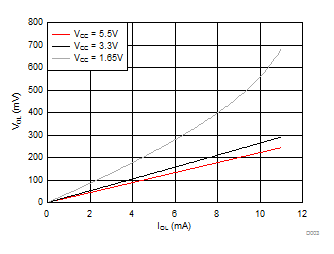

Figure 6-1 SDA Output Low Voltage (VOL) vs Load Current (IOL) at Three VCC Levels

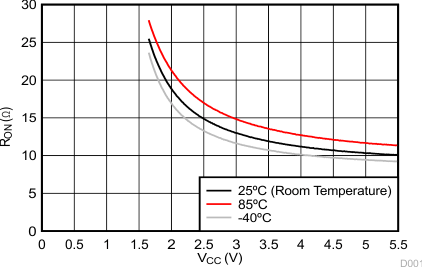

Figure 6-3 On-Resistance (RON) vs Supply Voltage (VCC) at three
temperatures

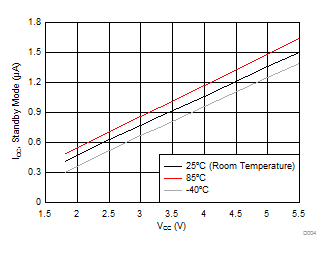

Figure 6-2 Standby Current (ICC) vs Supply Voltage (VCC) at
three temperatures
