5.9 Typical Jitter Characteristics
Figure 5-4, Figure 5-5, and Figure 5-6 illustrate eye diagrams at source, through calibration traces, and through SN75LVPE5421 respectively.

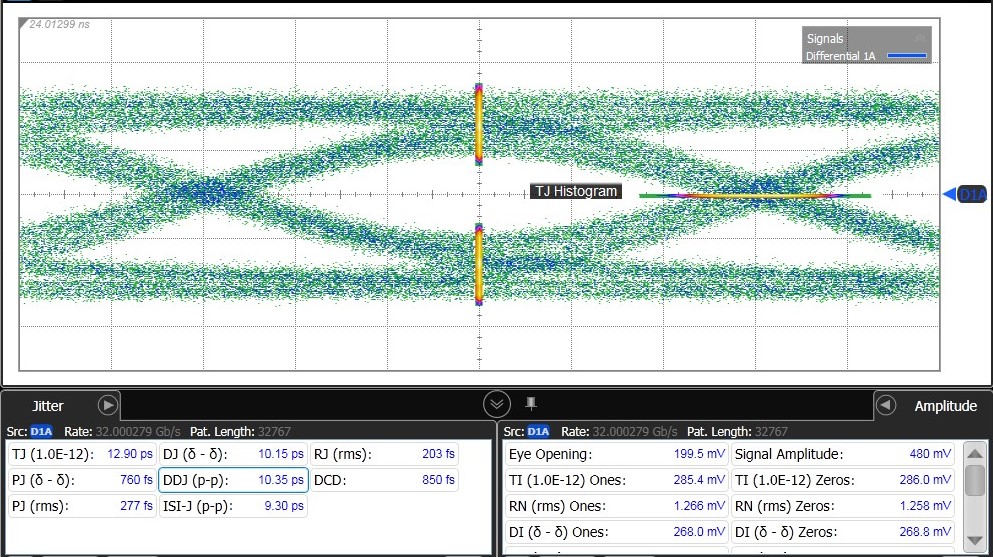

Figure 5-4 32
Gbps 800 mV PRBS15 Source (1dB Loss)

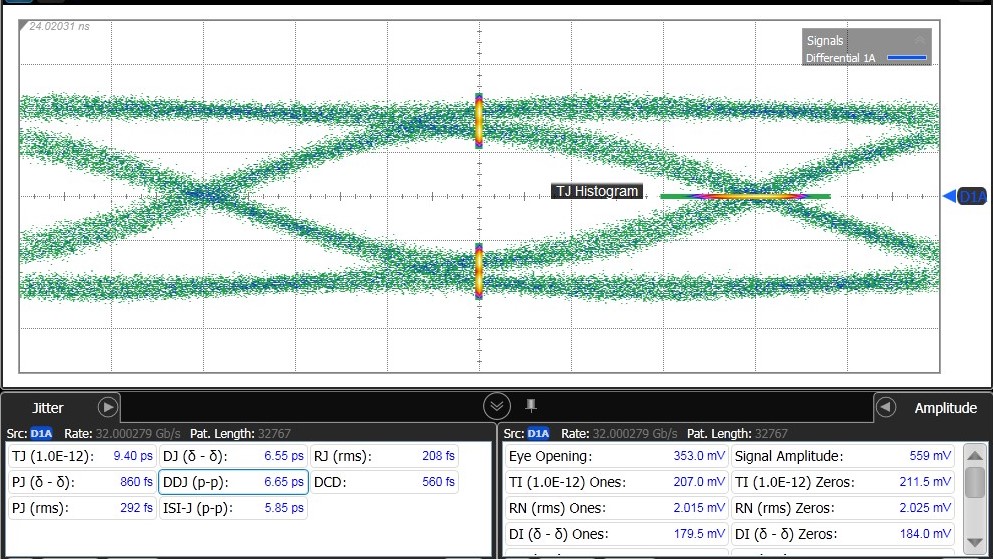

Figure 5-6 Through SN75LVPE5421 (6.5dB loss and DUT
EQ=0)

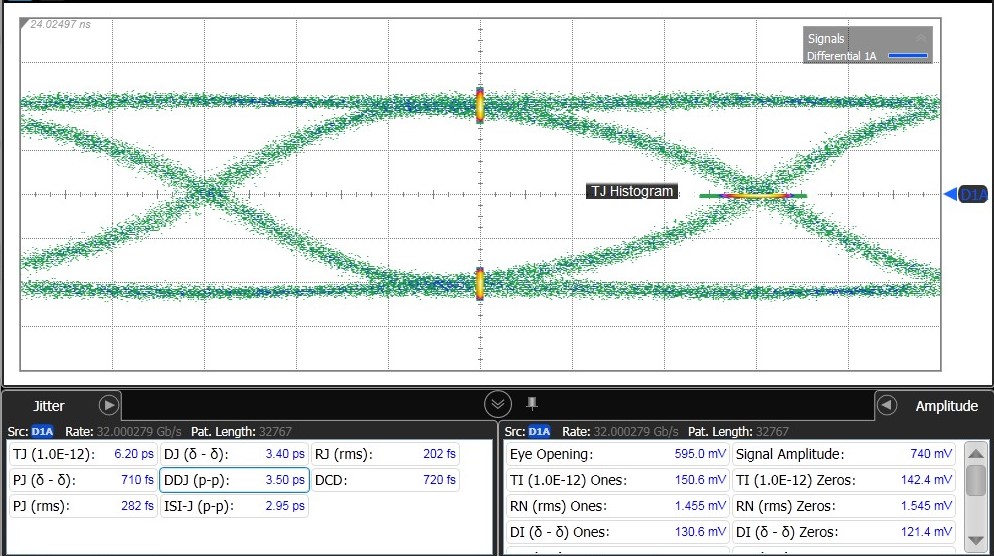

Figure 5-5 Through Calibration Trace (6.5dB Loss)
