6.14 Typical Characteristics

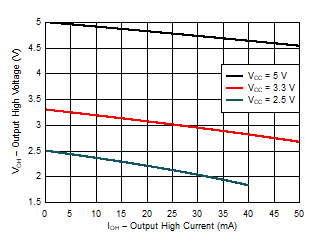

Figure 6-1 Typical (TA=25°C) Output
High Voltage (VOH) vs Source Current (IOH)

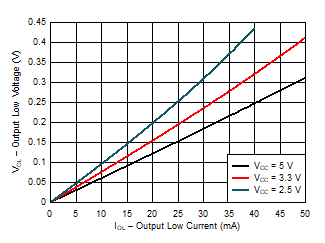

Figure 6-3 Typical (TA=25°C) Output
High Voltage (VOL) vs Sink Current (IOL)

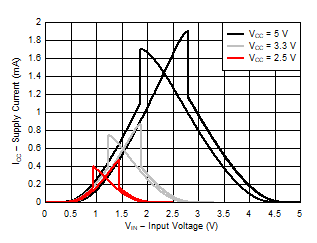

Figure 6-5 Typical (TA=25°C) Supply Current (ICC) vs Input Voltage
(VIN)

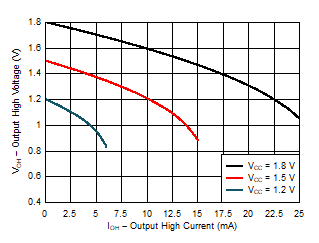

Figure 6-2 Typical (TA=25°C) Output
High Voltage (VOH) vs Source Current (IOH)

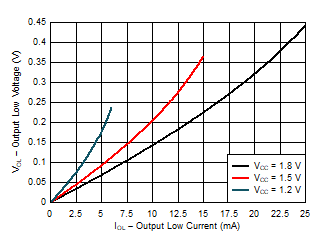

Figure 6-4 Typical (TA=25°C) Output
High Voltage (VOL) vs Sink Current (IOL)

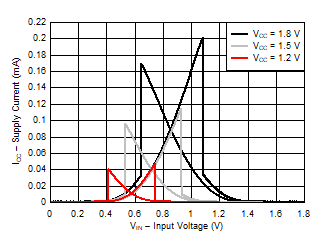

Figure 6-6 Typical (TA=25°C) Supply
Current (ICC) vs Input Voltage (VIN)
