9.2 Typical Application
The signal effects of the debounce circuit can be seen when comparing Figure 9-2 and Figure 9-3. In Figure 9-2, the input is a very poor quality signal due to the error in the physical push button. If the MCU attempts to sample this input to detect a push, there is high probability that multiple push events will be falsely detected. Once the debounce circuit has been implemented, the input is cleaned up, and the MCU can perform push detection without any error, as seen in Figure 9-3.

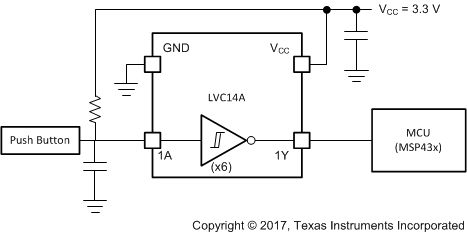

Figure 9-1 Debouncer Application Diagram
