ZHCSWI4M May 1999 – September 2024 SN74LV4053A
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
-
5 Specifications
- 5.1 Absolute Maximum Ratings
- 5.2 ESD Ratings
- 5.3 Thermal Information: SN74LV4053A
- 5.4 Recommended Operating Conditions
- 5.5 Electrical Characteristics
- 5.6 Timing Characteristics VCC = 2.5 V ± 0.2 V
- 5.7 Timing Characteristics VCC = 3.3 V ± 0.3 V
- 5.8 Timing Characteristics VCC = 5 V ± 0.5 V
- 5.9 AC Characteristics
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- PW|16
- DB|16
- DYY|16
- NS|16
- N|16
- RGY|16
- D|16
- DGV|16
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
6 Parameter Measurement Information
Figure 6-1 On-State Resistance Test Circuit

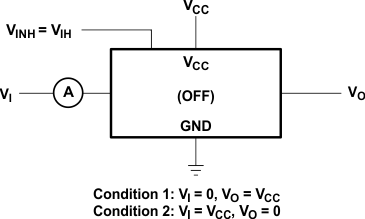

Figure 6-2 Off-State Switch Leakage-Current Test Circuit

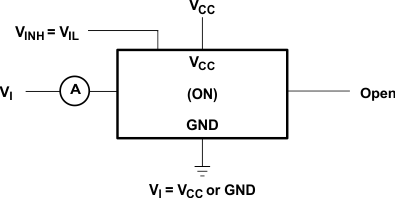

Figure 6-3 On-State Switch Leakage-Current Test Circuit

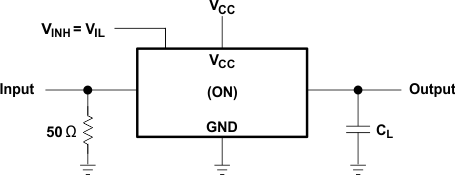

Figure 6-4 Propagation Delay Time, Signal Input to Signal Output

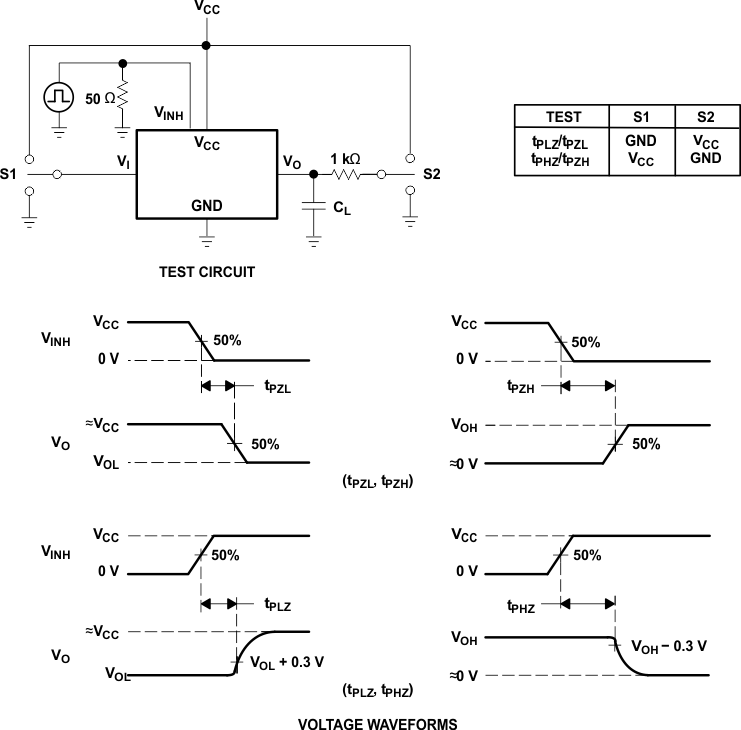

Figure 6-5 Switching Time (tPZL, tPLZ, tPZH,
tPHZ), Control to Signal Output
Figure 6-6 Frequency Response (Switch On)

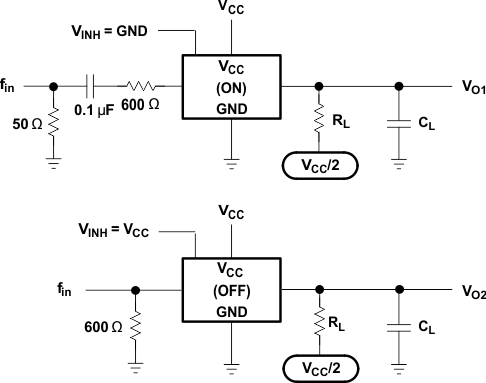

Figure 6-7 Crosstalk Between Any Two Switches

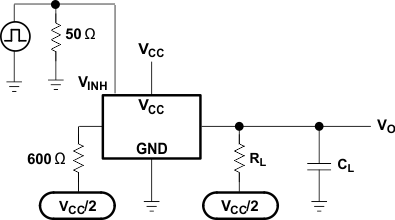

Figure 6-8 Crosstalk Between Control Input and Switch Output

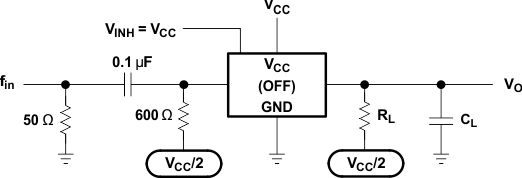

Figure 6-9 Feedthrough Attenuation (Switch Off)

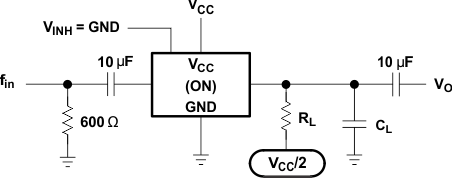

Figure 6-10 Sine-Wave Distortion
