3 說明
LV174A 器件是六路 D 類觸發器，專為 2V 至 5.5V VCC 工作電壓而設計。
封裝信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| SN74LV174A | DGV (TVSOP, 16) | 4.00mm × 3.50mm |
| PW (TSSOP, 16) | 5.00mm × 4.40mm | |
| NS（SO，16） | 10.20mm × 5.30mm | |
| D (SOIC, 16) | 9.00 mm × 3.90 mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

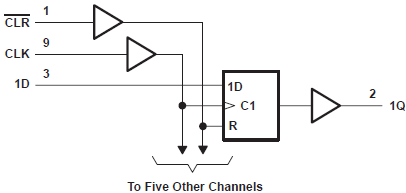

邏輯圖（正邏輯）
