SCLS389K September 1997 – February 2015 SN74LV00A
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Simplified Schematic
- 5 Revision History
- 6 Pin Configuration and Functions
-
7 Specifications
- 7.1 Absolute Maximum Ratings
- 7.2 ESD Ratings
- 7.3 Recommended Operating Conditions
- 7.4 Thermal Information
- 7.5 Electrical Characteristics
- 7.6 Switching Characteristics, VCC = 2.5 V ± 0.2 V
- 7.7 Switching Characteristics, VCC = 3.3 V ± 0.3 V
- 7.8 Switching Characteristics, VCC = 5 V ± 0.5 V
- 7.9 Noise Characteristics
- 7.10 Operating Characteristics
- 7.11 Typical Characteristics
- 8 Parameter Measurement Information
- 9 Detailed Description
- 10Application and Implementation
- 11Power Supply Recommendations
- 12Layout
- 13Device and Documentation Support
- 14Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- D|14
- RGY|14
- DGV|14
- PW|14
- DB|14
- NS|14
散熱焊盤機械數據 (封裝 | 引腳)
- RGY|14
訂購信息

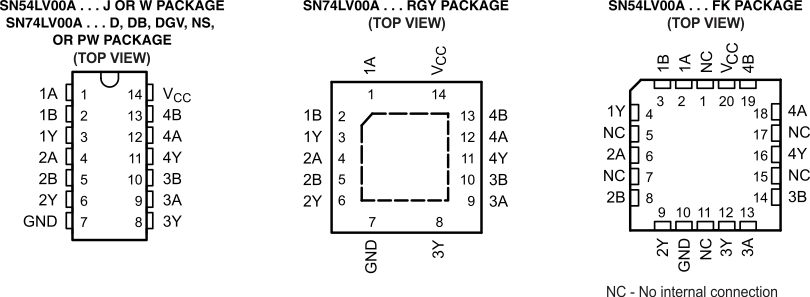

6 Pin Configuration and Functions
Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | 1A | I | 1A Input |
| 2 | 1B | I | 1B Input |
| 3 | 1Y | O | 1Y Output |
| 4 | 2A | I | 2A Input |
| 5 | 2B | I | 2B Input |
| 6 | 2Y | O | 2Y Output |
| 7 | GND | – | GND |
| 8 | 3Y | O | 3Y Output |
| 9 | 3A | I | 3A Input |
| 10 | 3B | I | 3B Input |
| 11 | 4Y | O | 4Y Output |
| 12 | 4A | I | 4A Input |
| 13 | 4B | I | 4B Input |
| 14 | VCC | — | Power Pin |
