SCLS800A March 2020 – June 2020 SN74HCS30
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
6.7 Typical Characteristics
TA = 25°C
Figure 1. Output driver resistance in Low state

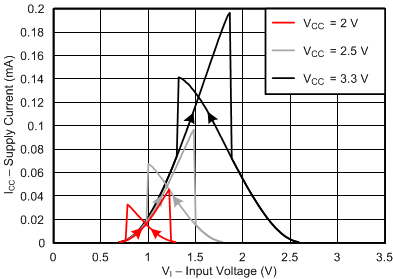

Figure 3. Typical supply current versus input voltage across common supply values (2 V to 3.3 V)
Figure 2. Output driver resistance in High state

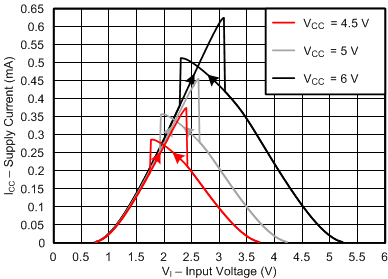

Figure 4. Typical supply current versus input voltage across common supply values (4.5 V to 6 V)
