6.7 Typical Characteristics
TA = 25°C

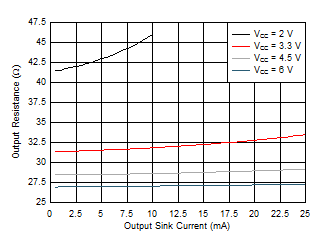

Figure 6-1 Output Driver Resistance in LOW State

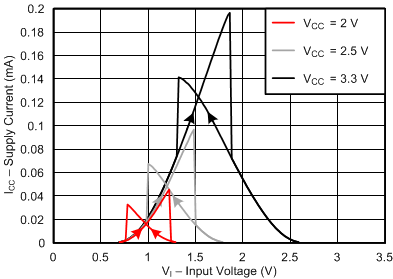

Figure 6-3 Supply Current Across Input Voltage, 2-, 2.5-, and 3.3-V Supply

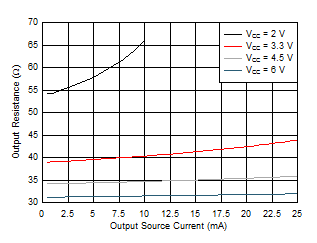

Figure 6-2 Output Driver Resistance in HIGH State

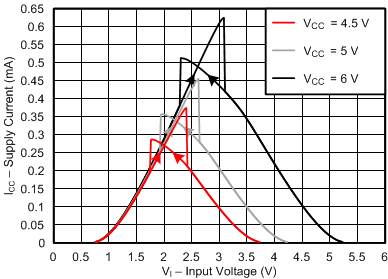

Figure 6-4 Supply Current Across Input Voltage, 4.5-, 5-, and 6-V Supply
