6.7 Typical Characteristics
TA = 25°C

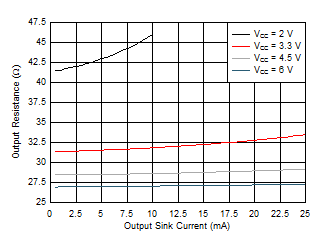

Figure 1. Output driver resistance in Low state

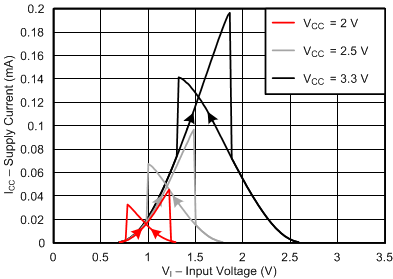

Figure 3. Typical supply current versus input voltage across common supply values (2 V to 3.3 V)

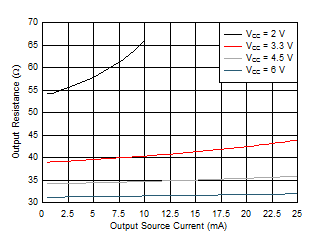

Figure 2. Output driver resistance in High state

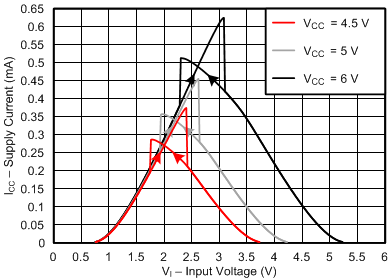

Figure 4. Typical supply current versus input voltage across common supply values (4.5 V to 6 V)
