4 Pin Configuration and Functions

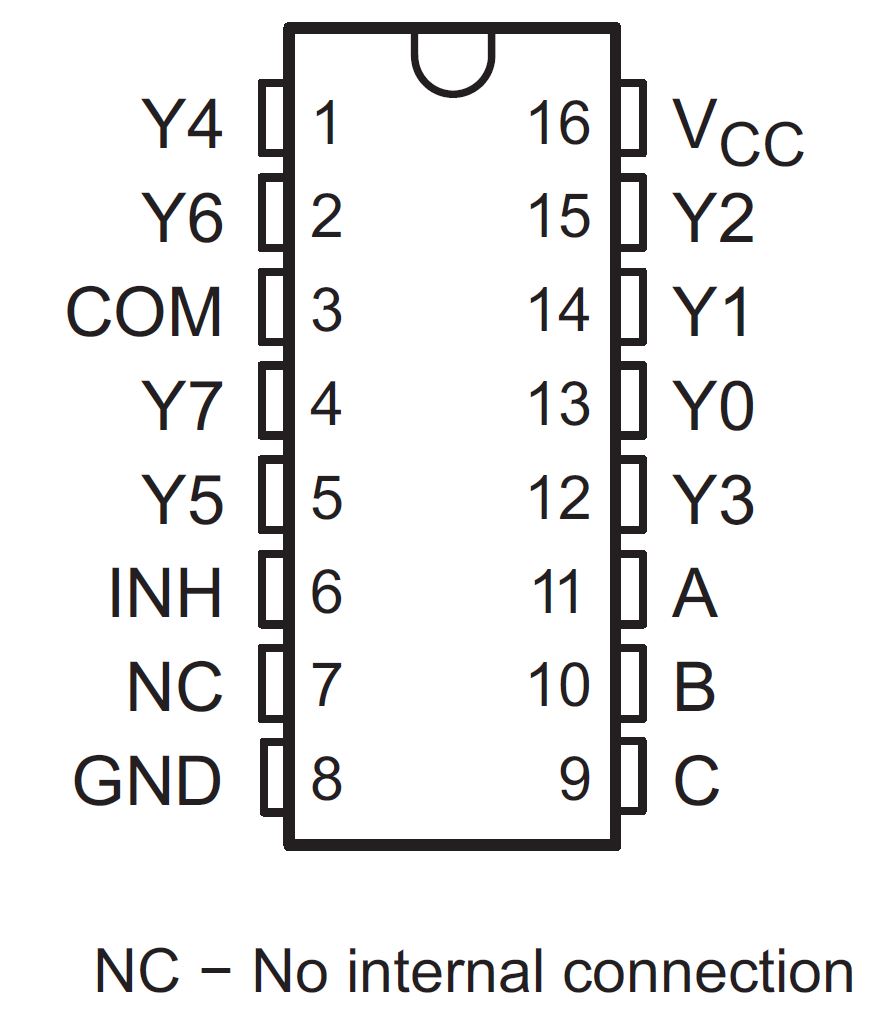

Figure 4-1 SN74HC4851 PW
Package, 16-Pin TSSOP (Top View)Table 4-1 Function Table
| Inputs | On Channel | |||
|---|---|---|---|---|
| INH | C | B | A | Yx |
| L | L | L | L | Y0 |
| L | L | L | H | Y1 |
| L | L | H | L | Y2 |
| L | L | H | H | Y3 |
| L | H | L | L | Y4 |
| L | H | L | H | Y5 |
| L | H | H | L | Y6 |
| L | H | H | H | Y7 |
| H | X | X | X | None |
