6 Parameter Measurement Information
Figure 6-1 ON-State
Resistance Test Circuit
Figure 6-2 OFF-State
Switch Leakage-Current Test Circuit

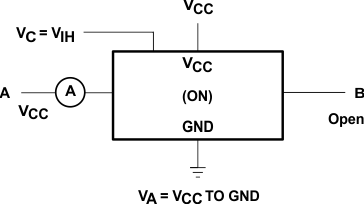

Figure 6-3 ON-State
Leakage-Current Test Circuit

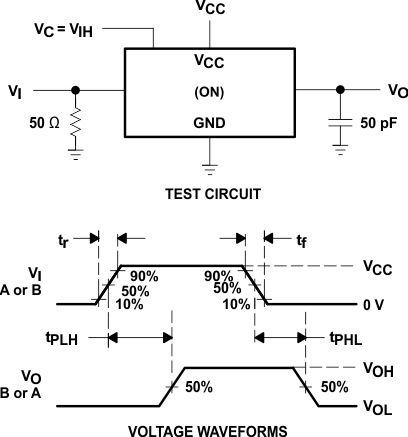

Figure 6-4 Propagation Delay Time, Signal Input to Signal Output

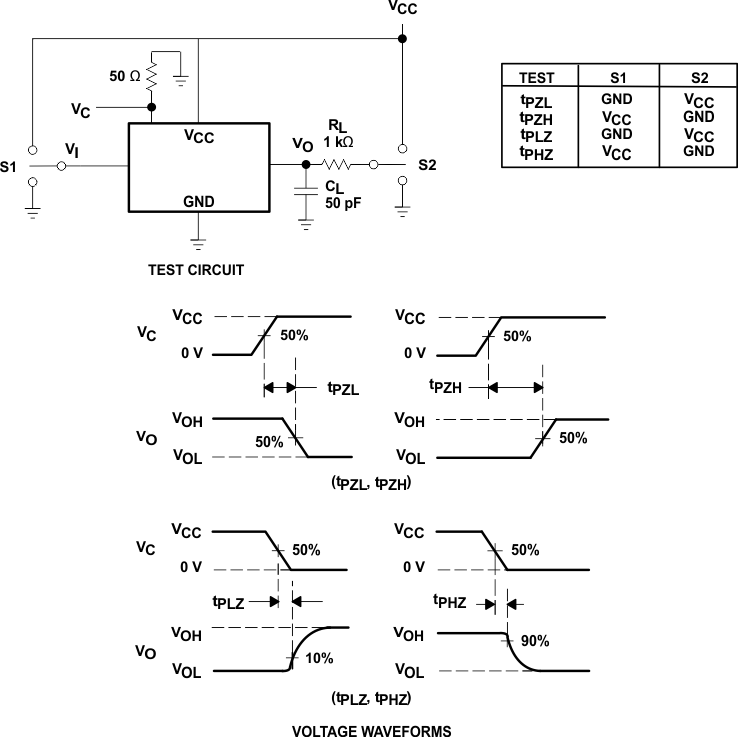

Figure 6-5 Switching
Time (tPZL, tPLZ, tPZH, tPHZ),
Control to Signal Output
Figure 6-6 Control-Input Frequency
Figure 6-7 Control
Feed-Through Noise

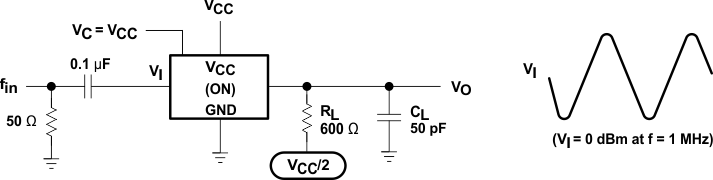

Figure 6-8 Minimum
Through Bandwidth

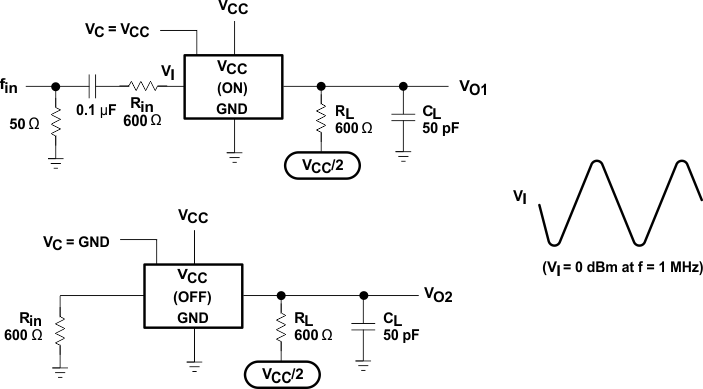

Figure 6-9 Crosstalk
Between Any Two Switches

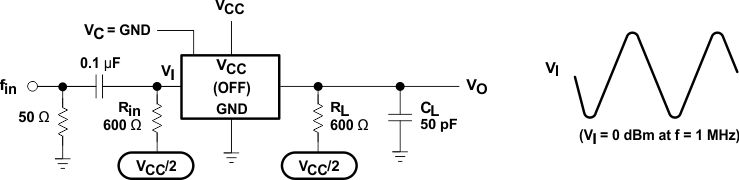

Figure 6-10 Feed
Through, Switch OFF
Figure 6-11 Amplitude-Distortion Rate
