6 Parameter Measurement Information
tpd is the maximum between tPLH and tPHL
Figure 6-1 Load Circuit

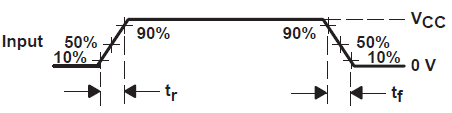

Figure 6-3 Voltage WaveformInput Rise and Fall Times

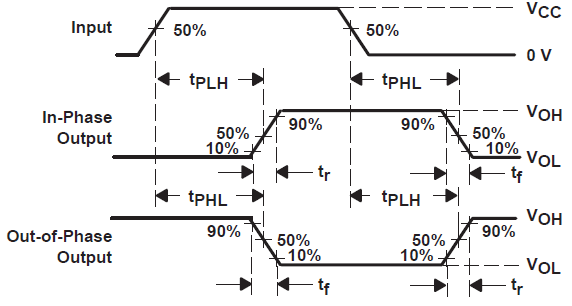

Figure 6-2 Voltage WaveformsPropagation Delay and Output Transition Times
A. CL includes probe and jig capacitance.
B. Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following charactersitics: PRR ≤ 1 MHz, ZO = 50 Ω, tr = 6 ns, tf = 6 ns.
C. The outputs are measured one at a time with one input transition per measurement.
