7 Parameter Measurement Information

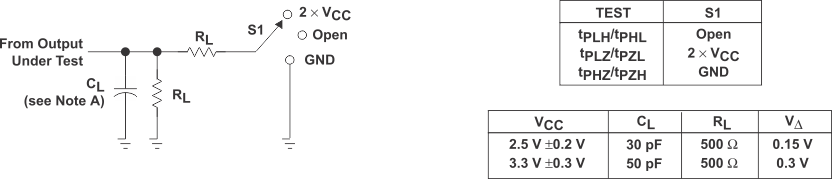

Figure 1. Load Current
 Figure 2. Voltage Waveforms Pulse Duration
xx |

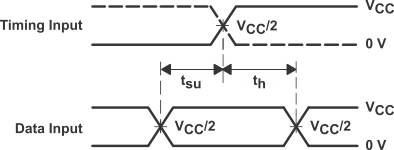

 Figure 3. Voltage Waveforms Setup and Hold Times |

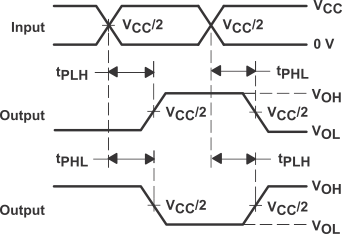

 Figure 4. Voltage Waveforms Propagation Delay Times Inverting and Noninverting Outputs |

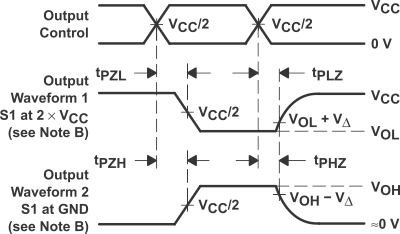

 Figure 5. Voltage Waveforms Enable And Disable Times Low- and High-Level Enabling |
Notes:
- CL includes probe and jig capacitance.
- Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control
- All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
- The outputs are measured one at a time with one transition per measurement.
- tPLZ and tPHZ are the same as tdis.
- tPZL and tPZH are the same as ten.
- tPLH and tPHL are the same as tpd.
- H. All parameters and waveforms are not applicable to all devices.
