5 Pin Configuration and Functions

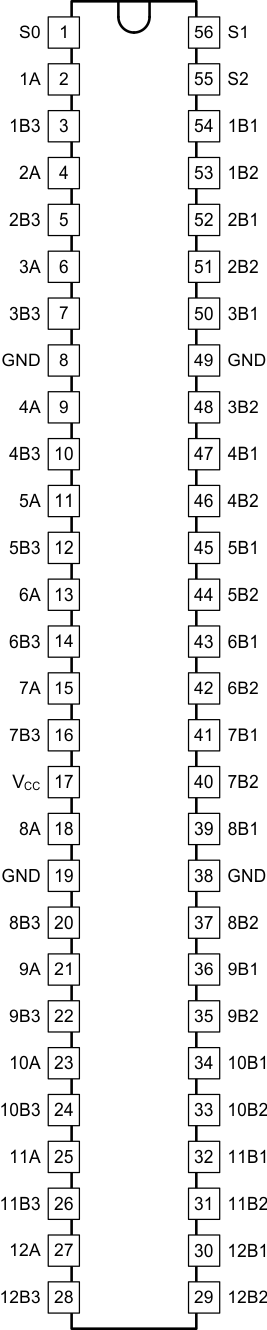

DGG or DL Package
56-Pin TSSOP or SSOP
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| S0 | 1 | I | Select 0 |
| 1A | 2 | I/O | Channel 1 A |
| 1B3 | 3 | I/O | Channel 1 B3 |
| 2A | 4 | I/O | Channel 2 A |
| 2B3 | 5 | I/O | Channel 2 B3 |
| 3A | 6 | I/O | Channel 3 A |
| 3B3 | 7 | I/O | Channel 3 B3 |
| GND | 8 | — | Ground |
| 4A | 9 | I/O | Channel 4 A |
| 4B3 | 10 | I/O | Channel 4 B3 |
| 5A | 11 | I/O | Channel 5 A |
| 5B3 | 12 | I/O | Channel 5 B3 |
| 6A | 13 | I/O | Channel 6 A |
| 6B3 | 14 | I/O | Channel 6 B3 |
| 7A | 15 | I/O | Channel 7 A |
| 7B3 | 16 | I/O | Channel 7 B3 |
| VCC | 17 | — | Power supply |
| 8A | 18 | I/O | Channel 8 A |
| GND | 19 | — | Ground |
| 8B3 | 20 | I/O | Channel 8 B3 |
| 9A | 21 | I/O | Channel 9 A |
| 9B3 | 22 | I/O | Channel 9 B3 |
| 10A | 23 | I/O | Channel 10 A |
| 10B3 | 24 | I/O | Channel 10 B3 |
| 11A | 25 | I/O | Channel 11 A |
| 11B3 | 26 | I/O | Channel 11 B3 |
| 12A | 27 | I/O | Channel 12 A |
| 12B3 | 28 | I/O | Channel 12 B3 |
| 12B2 | 29 | I/O | Channel 12 B2 |
| 12B1 | 30 | I/O | Channel 12 B1 |
| 11B2 | 31 | I/O | Channel 11 B2 |
| 11B1 | 32 | I/O | Channel 11 B1 |
| 10B2 | 33 | I/O | Channel 10 B2 |
| 10B1 | 34 | I/O | Channel 10 B1 |
| 9B2 | 35 | I/O | Channel 9 B2 |
| 9B1 | 36 | I/O | Channel 9 B1 |
| 8B2 | 37 | I/O | Channel 8 B2 |
| GND | 38 | — | Ground |
| 8B1 | 39 | I/O | Channel 8 B1 |
| 7B2 | 40 | I/O | Channel 7 B2 |
| 7B1 | 41 | I/O | Channel 7 B1 |
| 6B2 | 42 | I/O | Channel 6 B2 |
| 6B1 | 43 | I/O | Channel 6 B1 |
| 5B2 | 44 | I/O | Channel 5 B2 |
| 5B1 | 45 | I/O | Channel 5 B1 |
| 4B2 | 46 | I/O | Channel 4 B2 |
| 4B1 | 47 | I/O | Channel 4 B1 |
| 3B2 | 48 | I/O | Channel 3 B2 |
| GND | 49 | I/O | Ground |
| 3B1 | 50 | I/O | Channel 3 B1 |
| 2B2 | 51 | I/O | Channel 2 B2 |
| 2B1 | 52 | I/O | Channel 2 B1 |
| 1B2 | 53 | I/O | Channel 1 B2 |
| 1B1 | 54 | I/O | Channel 1 B1 |
| S2 | 55 | I | Select 2 |
| S1 | 56 | I | Select 1 |
