3 Description
The ’AHCT125 devices are quadruple bus buffer gates featuring independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high. When OE is low, the respective gate passes the data from the A input to its Y output.
For the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Device Information
| PART NUMBER | RATING | PACKAGE(1) |
|---|---|---|
| SN54AHCT125 | Military | J (CDIP, 14) |
| W (CFP, 14) | ||
| FK (LCCC, 20) | ||
| SN74AHCT125 | Commercial | D (SOIC, 14) |
| DB (SSOP, 14) | ||
| DGV (TVSOP, 14) | ||
| N (PDIP, 14) | ||
| NS (SOP, 14) | ||
| PW (SOP, 14) | ||
| RGY (VQFN, 14) | ||
| BQA (WQFN, 14) |
(1) For more information, see Section 11.
Pin numbers are for D, DB, DGV,
J, N, NS, PW, RGY, and W packages.

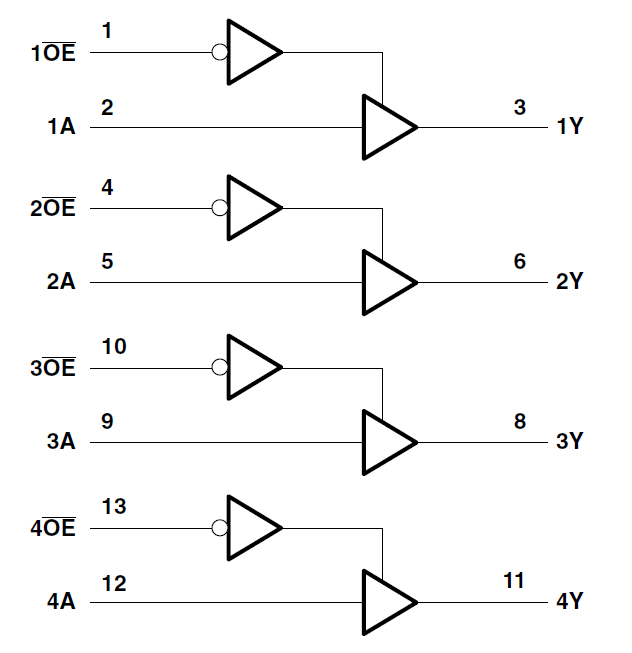

Logic Diagram (Positive Logic)
