ZHCSSU6F November 1995 – February 2024 SN74AC534
PRODUCTION DATA
- 1
- 1 特性
- 2 說明
- 3 Pin Configuration and Functions
-
4 Specifications
- 4.1 Absolute Maximum Ratings
- 4.2 Recommended Operating Conditions
- 4.3 Thermal Information
- 4.4 Electrical Characteristics
- 4.5 Timing Requirements, VCC = 3.3 V ± 0.3 V
- 4.6 Timing Requirements, VCC = 5 V ± 0.5 V
- 4.7 Switching Characteristics, VCC = 3.3 V ± 0.3 V
- 4.8 Switching Characteristics, VCC = 5 V ± 0.5 V
- 4.9 Operating Characteristics
- 5 Parameter Measurement Information
- 6 Detailed Description
- 7 Application and Implementation
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- DB|20
- NS|20
- N|20
- DW|20
- PW|20
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
3 Pin Configuration and Functions

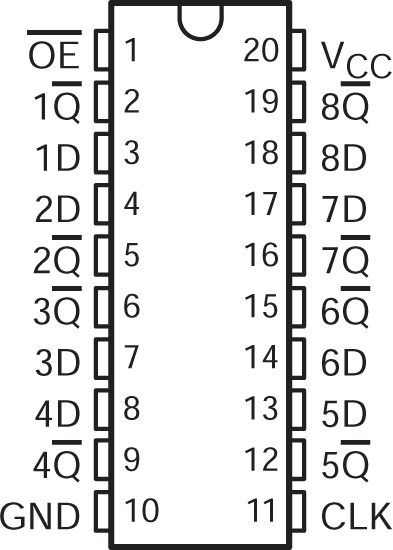

Figure 3-1 SN74AC534 DB, DW, N, NS,
or PW Package (Top View)Table 3-1 Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| OE | 1 | I | Enable pin |
| 1Q | 2 | O | Output 1 |
| 1D | 3 | I | Input 1 |
| 2D | 4 | I | Input 2 |
| 2Q | 5 | O | Output 2 |
| 3Q | 6 | O | Output 3 |
| 3D | 7 | I | Input 3 |
| 4D | 8 | I | Input 4 |
| 4Q | 9 | O | Output 4 |
| GND | 10 | – | Ground pin |
| CLK | 11 | I | Clock pin |
| 5Q | 12 | O | Output 5 |
| 5D | 13 | I | Input 5 |
| 6D | 14 | I | Input 6 |
| 6Q | 15 | O | Output 6 |
| 7Q | 16 | O | Output 7 |
| 7D | 17 | I | Input 7 |
| 8D | 18 | I | Input 8 |
| 8Q | 19 | O | Output 8 |
| VCC | 20 | – | Power pin |
