7 Parameter Measurement Information

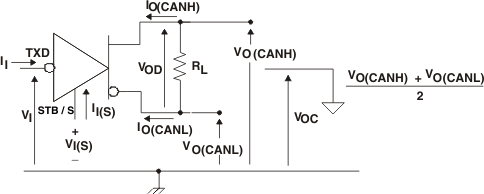

Figure 2. Driver Voltage, Current, and Test Definition

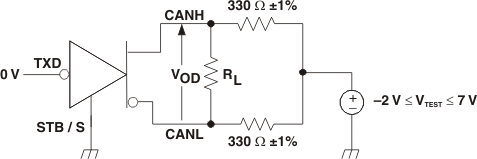

Figure 3. Driver VOD Test Circuit
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
B. CL includes instrumentation and fixture capacitance within ±20%.
C. For HVDA54x-5 device versions, VIO = VCC.

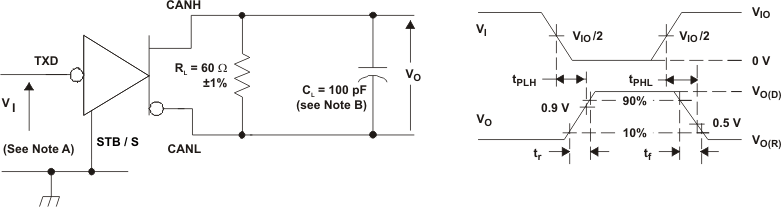

Figure 4. Driver Test Circuit and Voltage Waveforms

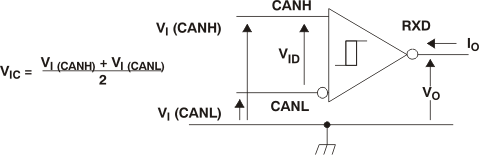

Figure 5. Receiver Voltage and Current Definitions
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
B. CL includes instrumentation and fixture capacitance within ±20%.
C. C. For HVDA54x-5 device versions VIO = VCC.

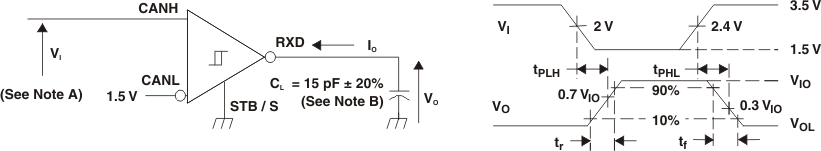

Figure 6. Receiver Test Circuit and Voltage Waveforms
Table 1. Differential Input Voltage Threshold Test
| INPUT | OUTPUT | |||
|---|---|---|---|---|
| VCANH | VCANL | |VID| | R | |
| –11.1 V | –12 V | 900 mV | L | VOL |
| 12 V | 11.1 V | 900 mV | L | |
| –6 V | –12 V | 6 V | L | |
| 12 V | 6 V | 6 V | L | |
| –11.5 V | –12 V | 500 mV | H | VOH |
| 12 V | 11.5 V | 500 mV | H | |
| –12 V | –6 V | 6 V | H | |
| 6 V | 12 V | 6 V | H | |
| Open | Open | X | H | |
A. CL = 100 pF includes instrumentation and fixture capacitance within ±20%.
B. All VI input pulses are from 0 V to VIO and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 25 kHz, 50% duty cycle.
C. C. For HVDA54x-5 device versions VIO = VCC.

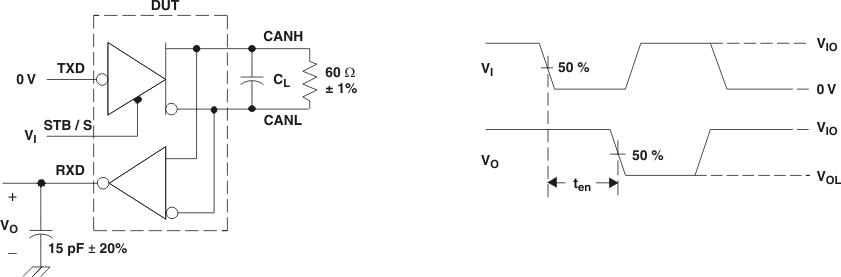

Figure 7. tEN Test Circuit and Waveforms
A. All VI input pulses are from 0 V to VIO and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 125 kHz, 50% duty cycle.

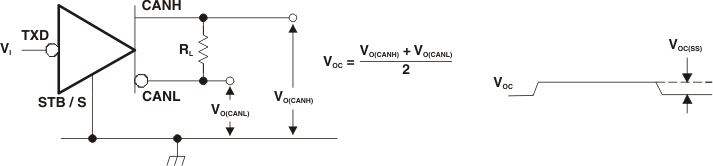

Figure 8. Common-Mode Output Voltage Test and Waveforms
A. CL = 100 pF includes instrumentation and fixture capacitance within ±20%.
B. All VI input pulses are from 0 V to VIO and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 125 kHz, 50% duty cycle.
C. For HVDA54x-5 device versions, VIO = VCC.

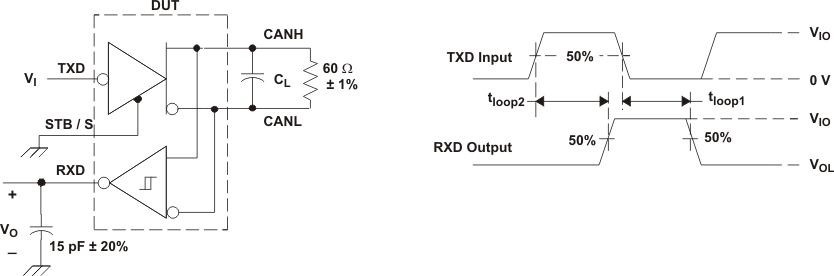

Figure 9. tPROP(LOOP) Test Circuit and Waveform
A. CL = 100 pF includes instrumentation and fixture capacitance within ±20%.
B. All VI input pulses are from 0 V to VIO and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 500 Hz, 50% duty cycle.
C. For HVDA54x-5 device versions, VIO = VCC.

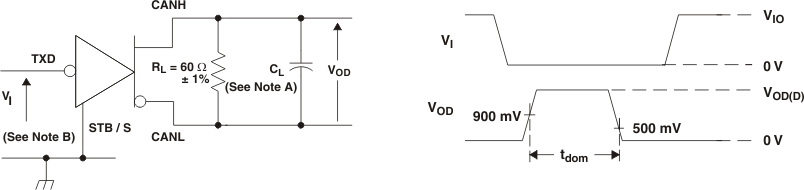

Figure 10. TXD Dominant Time Out Test Circuit and Waveforms
A. For HVDA54x-5 device versions VIO = VCC.

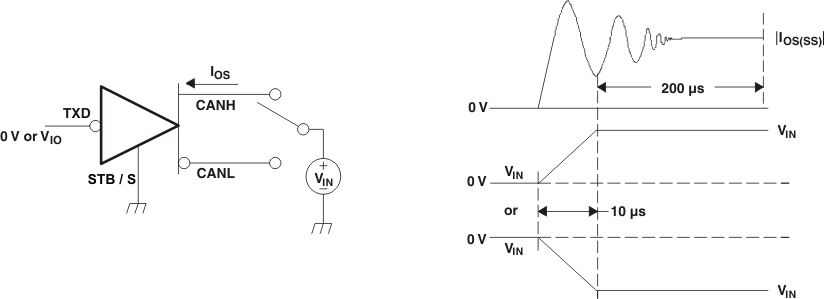

Figure 11. Driver Short-Circuit Current Test and Waveforms
A. All VI input pulses are from 0 V to VIO and supplied by a generator having the following characteristics: tr/tf ≤ 6 ns, Pulse Repetition Rate (PRR) = 250 kHz, 50% duty cycle.

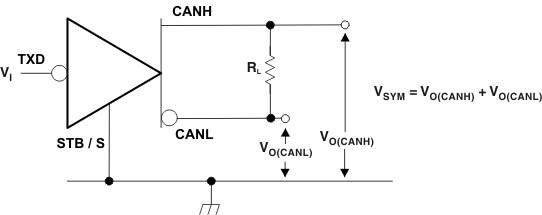

Figure 12. Driver Output Symmetry Test Circuit
