7.9 Typical Characteristics

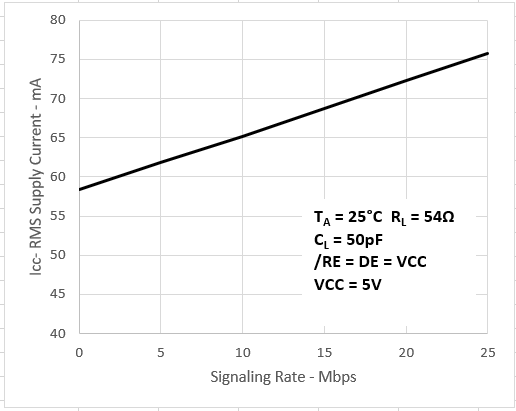

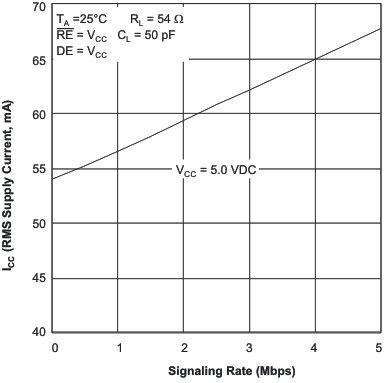

Figure 7-1 HVD50, HVD53 RMS Supply
Currentvs Signaling Rate
Figure 7-3 HVD52, HVD55 RMS Supply
Currentvs Signaling Rate

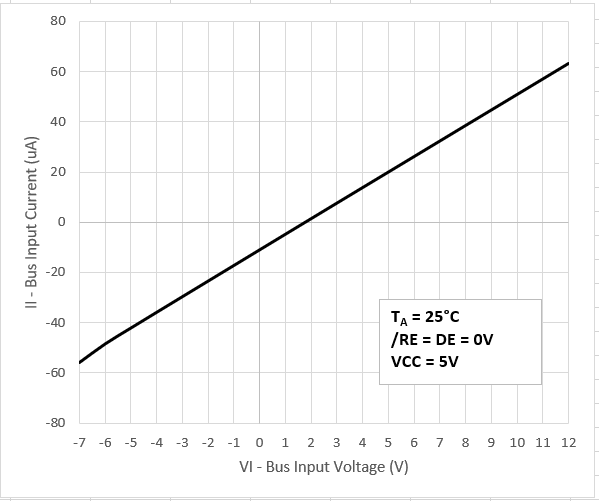

Figure 7-5 HVD51, HVD52, HVD54, HVD55
BUS Input Currentvs Input Voltage

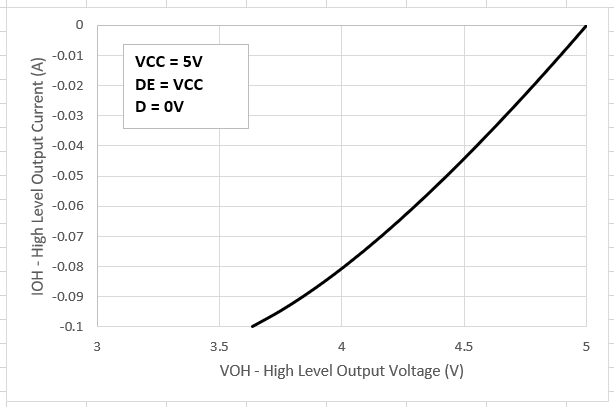

Figure 7-7 Driver High-Level Output
Currentvs High-Level Output Voltage

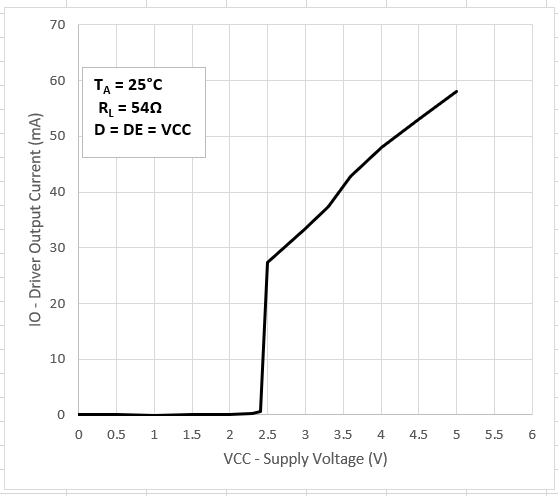

Figure 7-9 Driver Output Current vs
Supply Voltage

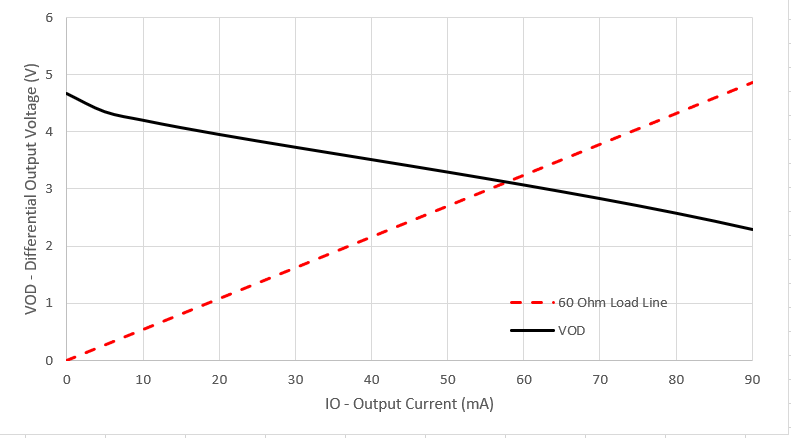

Figure 7-11 Diferential Output Voltage
vs Output Current

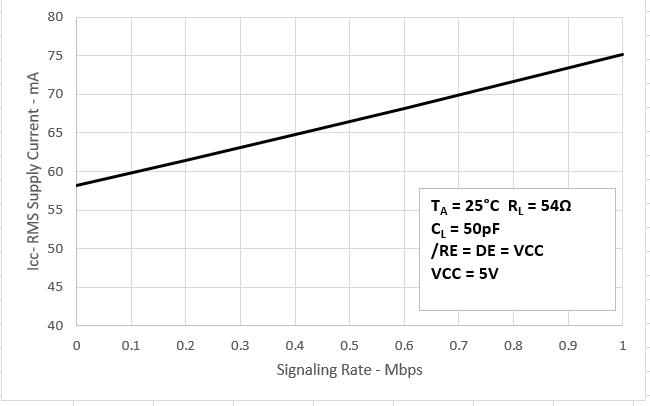

Figure 7-2 HVD51, HVD54 RMS Supply Currentvs Signaling Rate

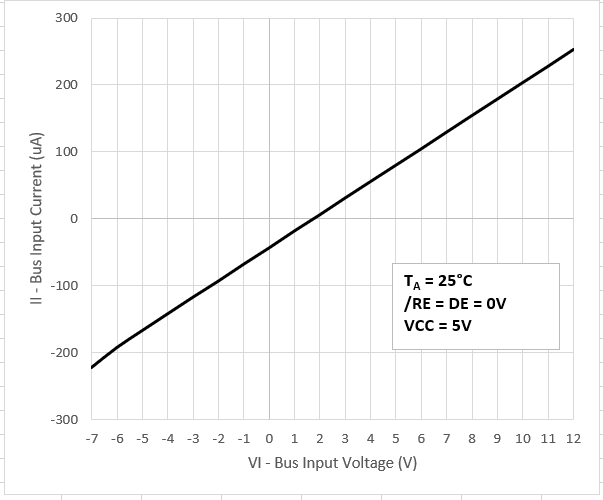

Figure 7-4 HVD50, HVD53 BUS Input
Current vs Input Voltage

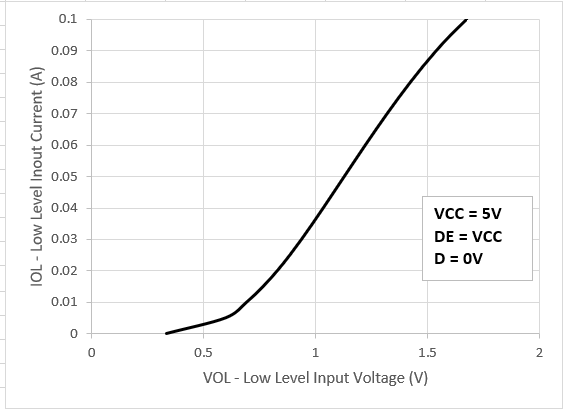

Figure 7-6 Driver LOW-Level Output
Currentvs Low-Level Output Voltage

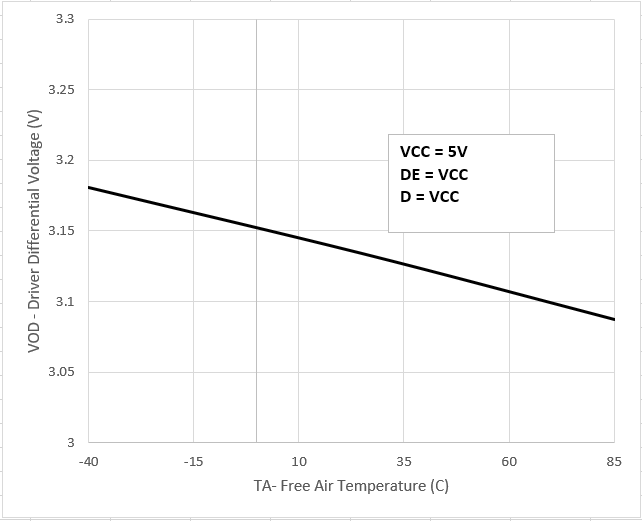

Figure 7-8 Driver Differential Output
Voltagevs Free-Air Temperature

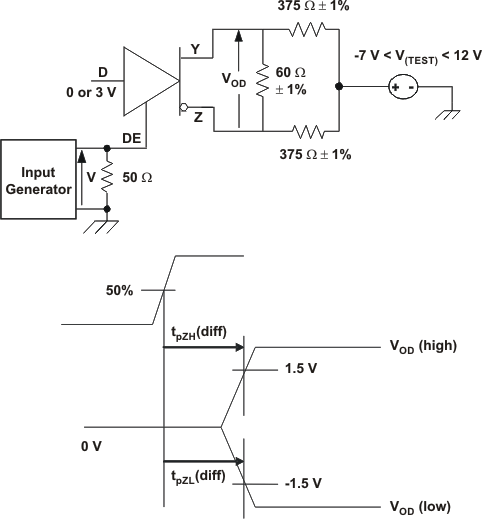

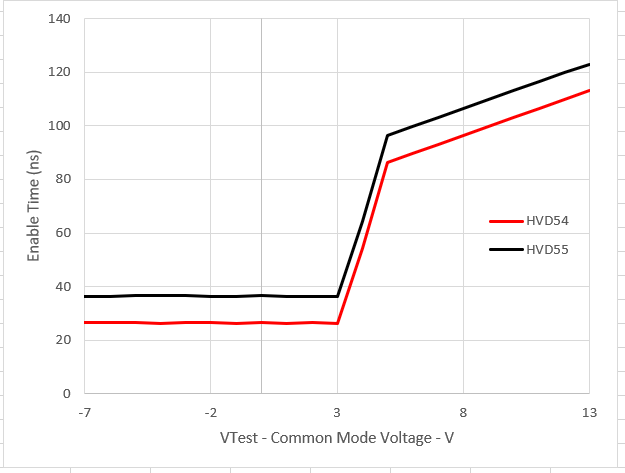

Figure 7-10 Enable Time vs Common-Mode
Voltage(See Figure 7-12)
- The time tpZL(x) is the measure from DE to VOD(x). VOD is valid when it is greater than 1.5 V.
