8 Parameter Measurement Information

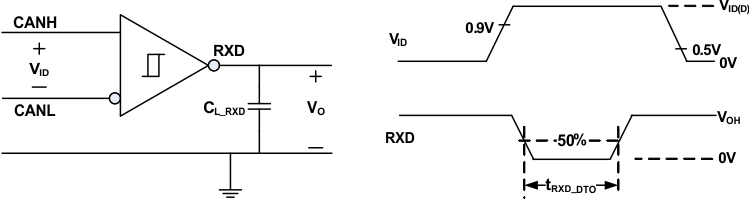

Figure 2. RXD Dominant Timeout Test Circuit and Measurement

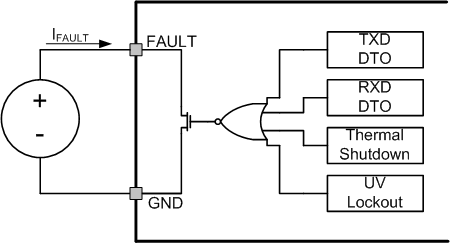

Figure 3. FAULT Test and Measurement

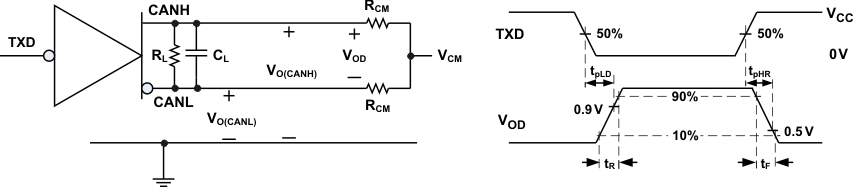

Figure 4. Driver Test Circuit and Measurement

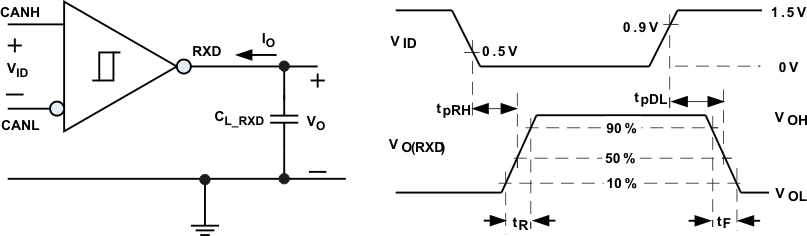

Figure 5. Receiver Test Circuit and Measurement

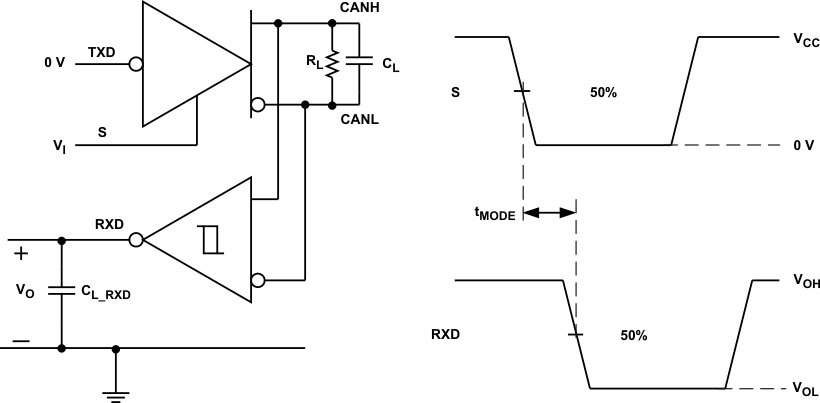

Figure 6. tMODE Test Circuit and Measurement
Table 1. Receiver Differential Input Voltage Threshold Test
| INPUT | OUTPUT | |||
|---|---|---|---|---|
| VCANH | VCANL | |VID| | RXD | |
| -1.1V | -2.0 V | 900 mV | L | VOL |
| 7.0 V | 6.1 V | 900 mV | L | |
| -1.5 V | -2.0 V | 500 mV | H | VOH |
| 7.0 V | 6.5 V | 500 mV | H | |
| Open | Open | X | H | |

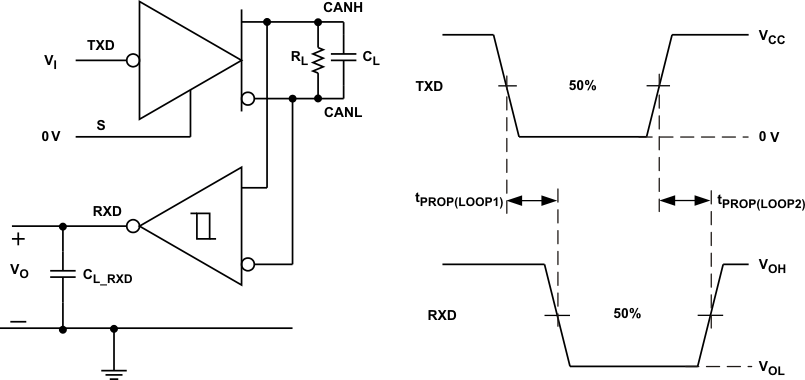

Figure 7. TPROP(LOOP) Test Circuit and Measurement
Note: tLOOP is equivalent to tPROP(LOOP) from CAN timing.
Figure 8. Loop Delay Symmetry Test Circuit and Measurement

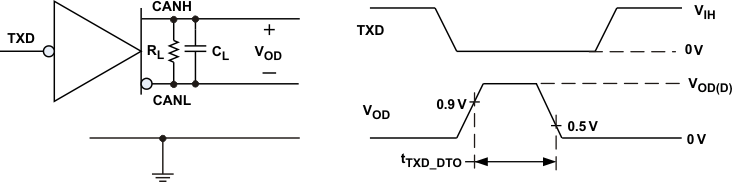

Figure 9. TXD Dominant Timeout Test Circuit and Measurement

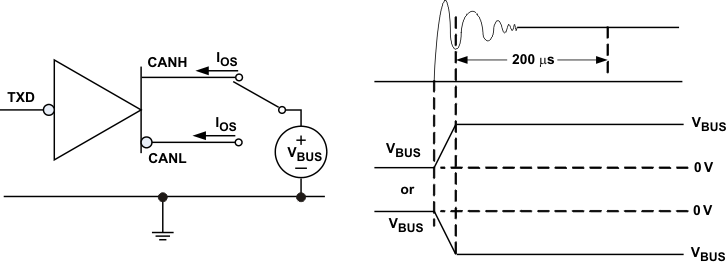

Figure 10. Driver Short Circuit Current Test and Measurement
