7 Parameter Measurement Information

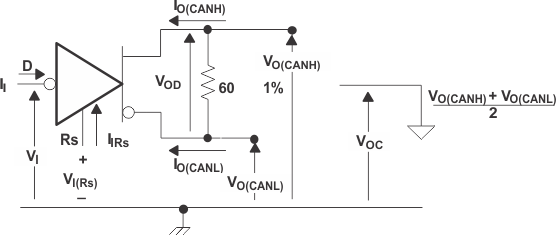

Figure 10. Driver Voltage, Current, and Test Definition

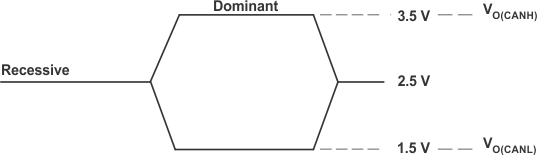

Figure 11. Bus Logic State Voltage Definitions

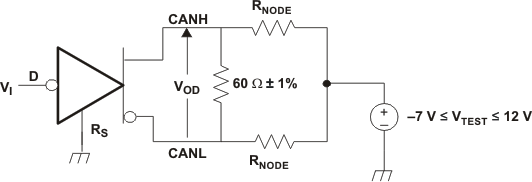

Figure 13. Driver Test Circuit and Voltage Waveforms

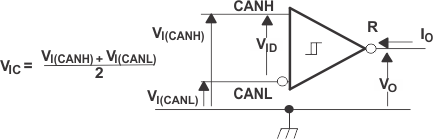

Figure 14. Receiver Voltage and Current Definitions
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6ns, tf ≤ 6ns, ZO = 50 Ω.
B. CL includes instrumentation and fixture capacitance within ±20%.

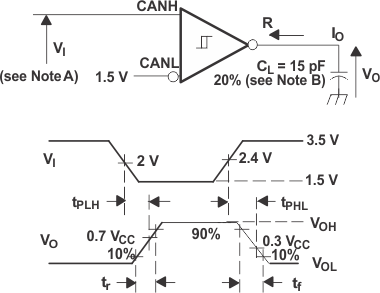

Figure 15. Receiver Test Circuit and Voltage Waveforms
This test is conducted to test survivability only. Data stability at the R output is not specified.

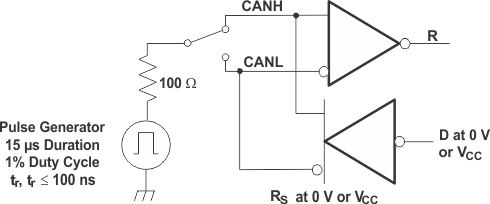

Figure 16. Test Circuit, Transient Overvoltage Test
Table 1. Receiver Characteristics Over Common Mode Voltage
| INPUT | DIFFERENTIAL INPUT | OUTPUT | ||
|---|---|---|---|---|
| VCANH | VCANL | |VID| | R | |
| 12 V | 11.1 V | 900 mV | L | VOL |
| –6.1 V | –7 V | 900 mV | L | |
| –1 V | –7 V | 6 V | L | |
| 12 V | 6 V | 6 V | L | |
| –6.5 V | –7 V | 500 mV | H | VOH |
| 12 V | 11.5 V | 500 mV | H | |
| –7 V | –1 V | 6 V | H | |
| 6 V | 12 V | 6 V | H | |
| open | open | X | H | |

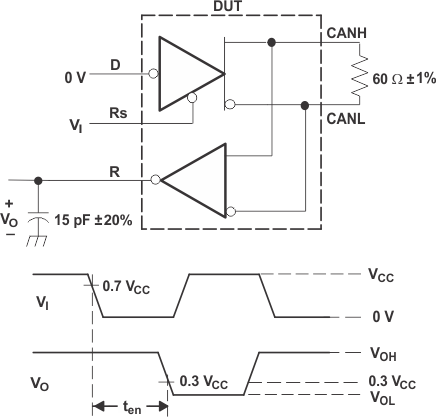

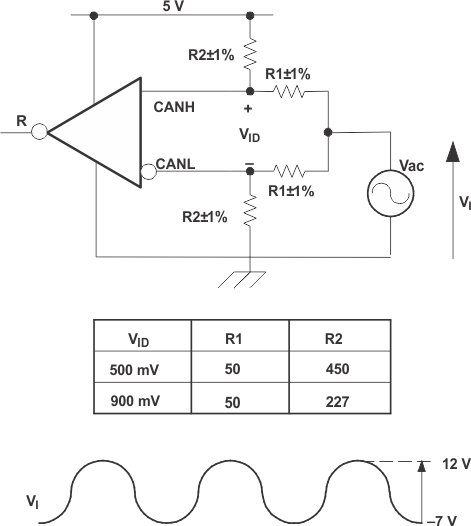

Figure 17. Ten Test Circuit and Voltage Waveforms
The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6ns, tf ≤ 6ns, ZO = 50 Ω.

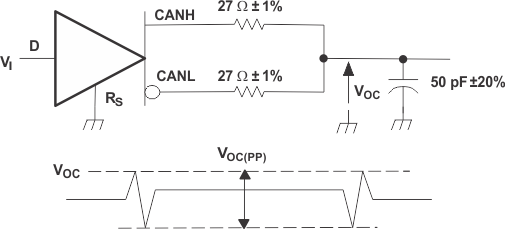

Figure 18. Peak-to-Peak Common Mode Output Voltage

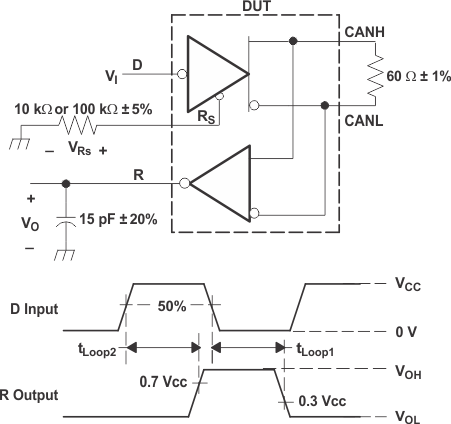

Figure 19. TLOOP Test Circuit and Voltage Waveforms

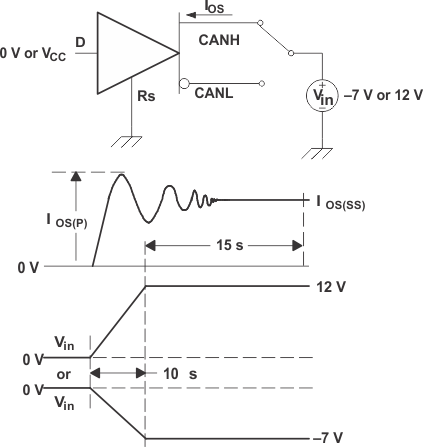

Figure 20. Driver Short-Circuit Test
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6ns, tf ≤ 6ns, ZO = 50 Ω.
B. CL includes instrumentation and fixture capacitance within ±20%.

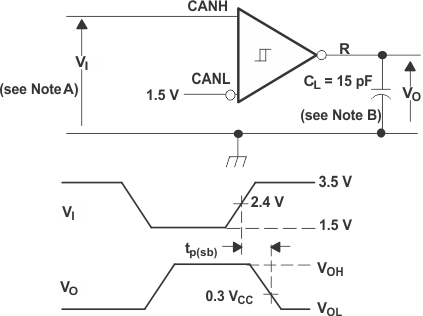

Figure 21. Receiver Propagation Delay in Standby Test Circuit and Waveform
