9 Parameter Measurement Information

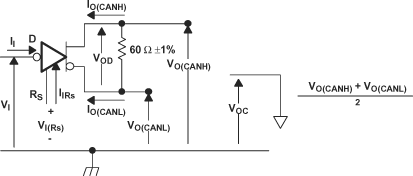

Figure 12. Driver Voltage, Current, and Test Definition
Figure 13. Bus Logic State Voltage Definitions

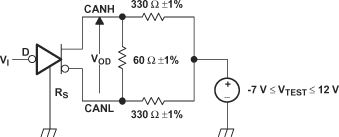

Figure 14. Driver VOD
A. The input pulse is supplied by a generator having the following characteristics: Pulse repetition rate (PRR) ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
B. CL includes fixture and instrumentation capacitance.

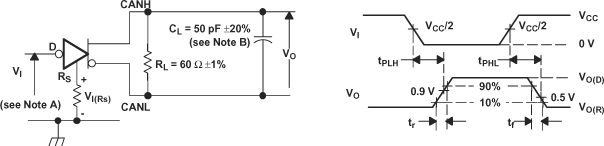

Figure 15. Driver Test Circuit and Voltage Waveforms

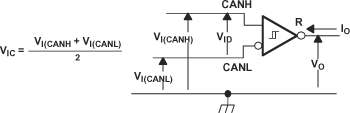

Figure 16. Receiver Voltage and Current Definitions
A. The input pulse is supplied by a generator having the following characteristics: Pulse repetition rate (PRR) ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
B. CL includes fixture and instrumentation capacitance.

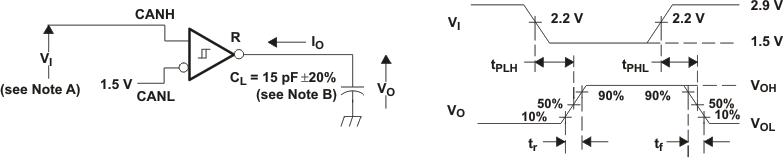

Figure 17. Receiver Test Circuit and Voltage Waveforms Table 1. Differential Input Voltage Threshold Test
| INPUT | OUTPUT | MEASURED | ||
|---|---|---|---|---|
| VCANH | VCANL | R | |VID| | |
| –6.1 V | –7 V | L | VOL | 900 mV |
| 12 V | 11.1 V | L | 900 mV | |
| –1 V | –7 V | L | 6 V | |
| 12 V | 6 V | L | 6 V | |
| –6.5 V | –7 V | H | VOH | 500 mV |
| 12 V | 11.5 V | H | 500 mV | |
| –7 V | –1 V | H | 6 V | |
| 6 V | 12 V | H | 6 V | |
| Open | Open | H | X | |

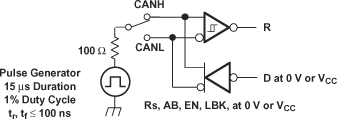

NOTE:
This test is conducted to test survivability only. Data stability at the R output is not specified.

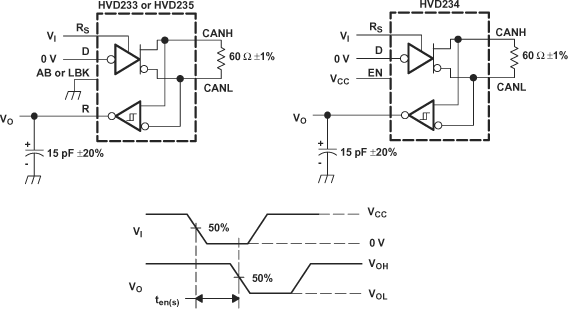

NOTE:
All VI input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, pulse repetition rate (PRR) = 125 kHz, 50% duty cycle.

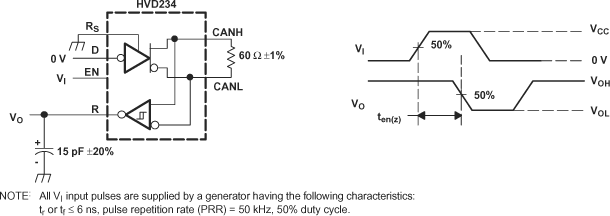

Figure 20. Ten(z) Test Circuit and Voltage Waveforms

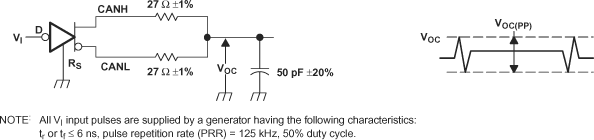

Figure 21. VOC(pp) Test Circuit and Voltage Waveforms

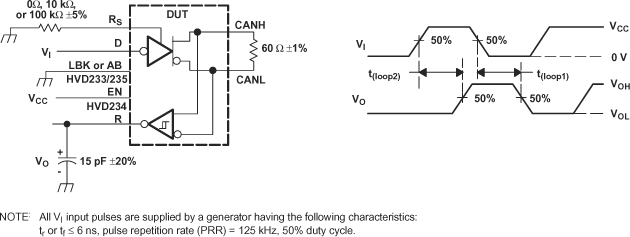

Figure 22. T(loop) Test Circuit and Voltage Waveforms

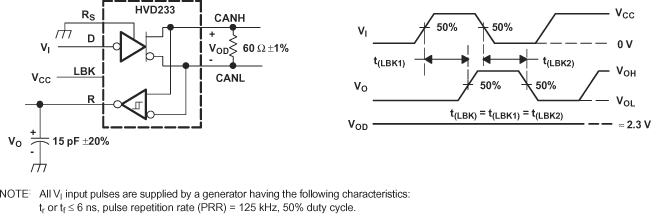

Figure 23. T(LBK) Test Circuit and Voltage Waveforms

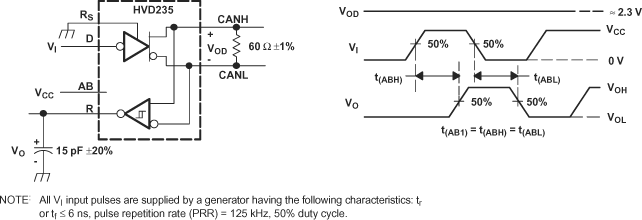

Figure 24. T(AB1) Test Circuit and Voltage Waveforms

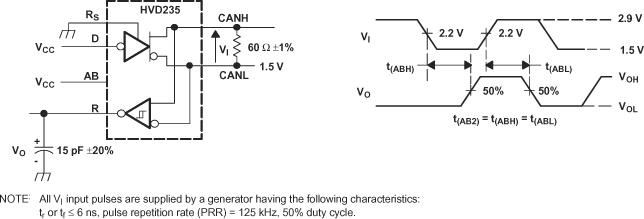

Figure 25. T(AB2) Test Circuit and Voltage Waveforms

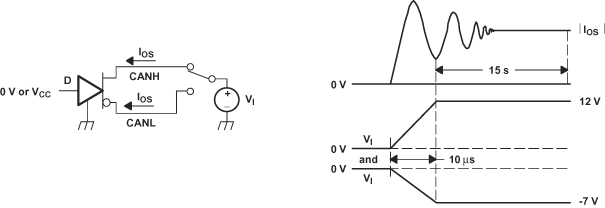

Figure 26. IOS Test Circuit and Waveforms

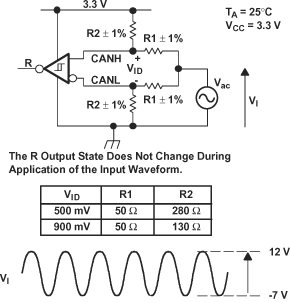

NOTE:
All input pulses are supplied by a generator with f ≤ 1.5 MHz.

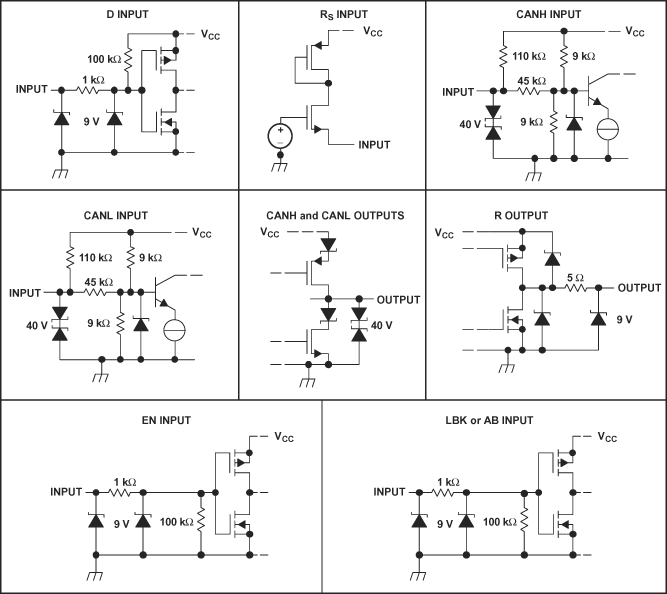

Figure 28. Equivalent Input and Output Schematic Diagrams
