9 Parameter Measurement Information

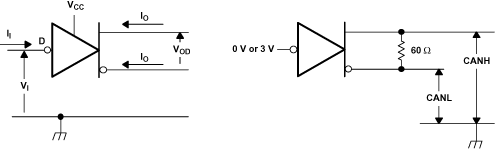

Figure 18. Driver Voltage and Current Definitions
Figure 19. Driver VOD
Figure 20. Driver Output Voltage Definitions
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 500 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, Zo = 50 Ω.
B. CL includes probe and jig capacitance.

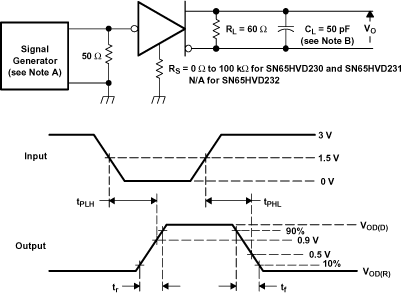

Figure 21. Driver Test Circuit and Voltage Waveforms

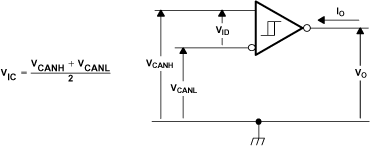

Figure 22. Receiver Voltage and Current Definitions
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 500 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, Zo = 50 Ω.
B. CL includes probe and jig capacitance.

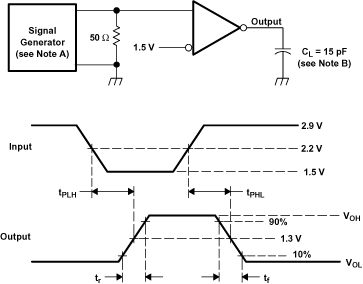

Figure 23. Receiver Test Circuit and Voltage Waveforms
Figure 24. Overvoltage Protection
Table 1. Receiver Characteristics Over Common Mode With V(Rs) = 1.2 V
| VIC | VID | VCANH | VCANL | R OUTPUT | |
|---|---|---|---|---|---|
| -2 V | 900 mV | -1.55 V | -2.45 V | L | VOL |
| 7 V | 900 mV | 8.45 V | 6.55 V | L | |
| 1 V | 6 V | 4 V | -2 V | L | |
| 4 V | 6 V | 7 V | 1 V | L | |
| -2 V | 500 mV | -1.75 V | -2.25 V | H | VOH |
| 7 V | 500 mV | 7.25 V | 6.75 V | H | |
| 1 V | -6 V | -2 V | 4 V | H | |
| 4 V | -6 V | 1 V | 7 V | H | |
| X | X | Open | Open | H | |

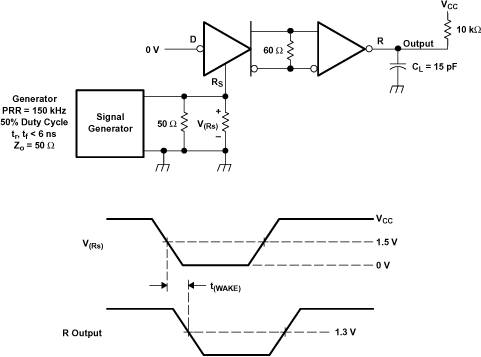

Figure 25. t(WAKE) Test Circuit and Voltage Waveforms
A. All VI input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, Pulse Repetition Rate (PRR) = 125 kHz, 50% duty cycle.
Figure 26. t(LOOP) Test Circuit and Voltage Waveforms

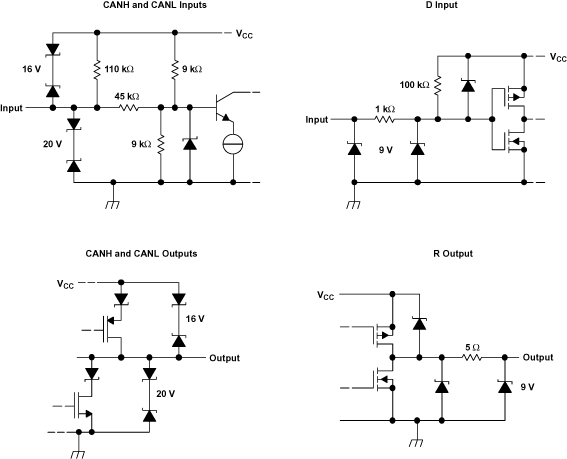

Figure 27. Equivalent Input and Output Schematic Diagrams
