8 Parameter Measurement Information
The input generator rate is 100 kbps with 50% duty cycle, than 6-ns rise and fall times, and 50-Ω output impedance.

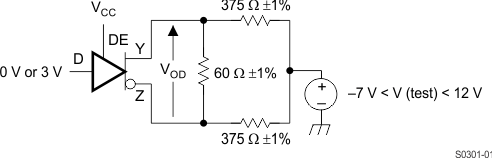

Figure 15. Measurement of Driver Differential Output Voltage With Common-Mode Load

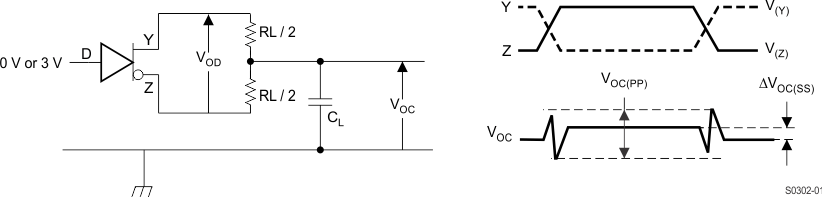

Figure 16. Measurement of Driver Differential and Common-Mode Output With RS-485 Load

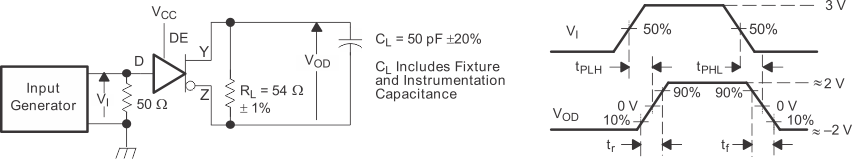

Figure 17. Measurement of Driver Differential Output Rise and Fall Times and Propagation Delays
D at 3 V to test non-inverting output, D at 0 V to test inverting output.

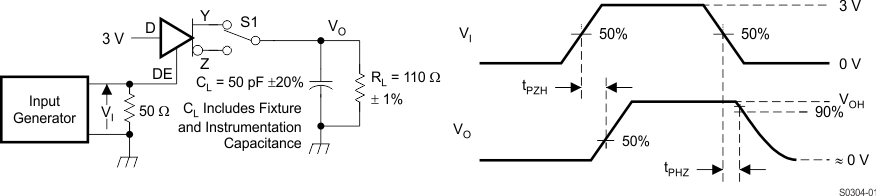

Figure 18. Measurement of Driver Enable and Disable Times with Active-High Output and Pulldown Load
D at 0 V to test non-inverting output, D at 3 V to test inverting output.

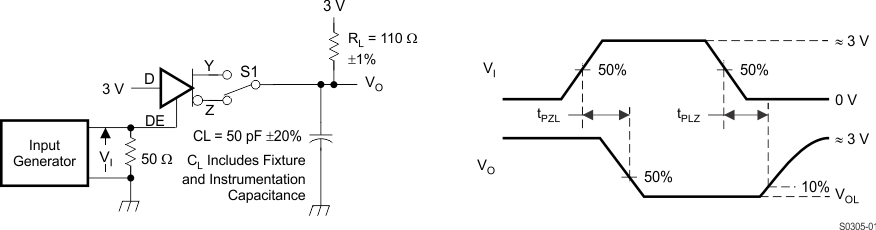

Figure 19. Measurement of Driver Enable and Disable Times with Active-Low Output and Pullup Load

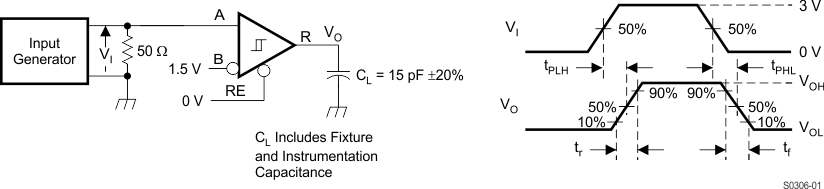

Figure 20. Measurement of Receiver Output Rise and Fall Times and Propagation Delays

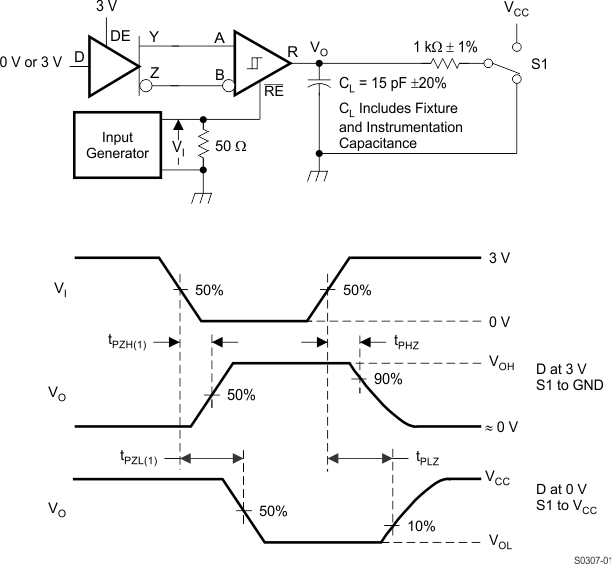

Figure 21. Measurement of Receiver Enable and Disable Times With Driver Enabled

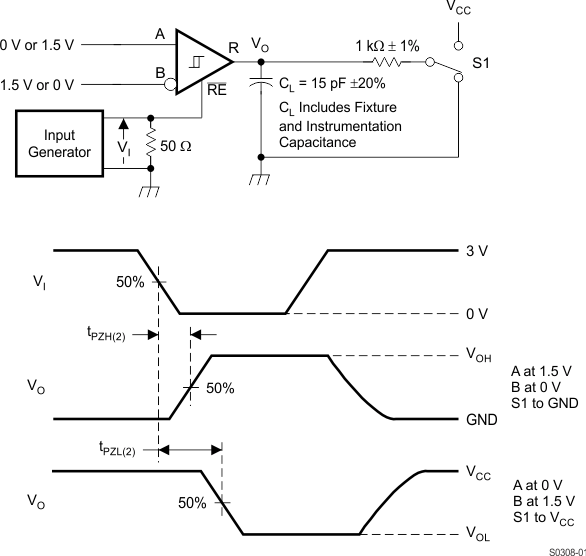

Figure 22. Measurement of Receiver Enable Times With Driver Disabled
