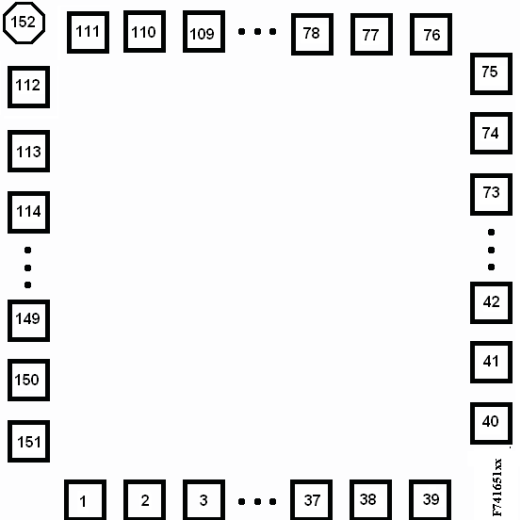

4 Bare Die
4.1 Bare Die Information
| DIE SIZE | DIE PAD SIZE | DIE PAD COORDINATES(1) | DIE THICKNESS | DIE PAD COMPOSITION | BACKSIDE FINISH | BACKSIDE POTENTIAL |
|---|---|---|---|---|---|---|
| 208.858 × 211.890 mils/ 5304.99 × 5382.01 µm |
65.1 × 65.1 (µm) | See Table 4-1 | 11 mils | AlCu | Silicon with backgrind | Ground |
(1) Pads 12, 22, 26, 136, 143, 146, 149 and 152 are test pads, no connections required. It is highly recommended to leave them open.
Table 4-1 Bond Pad Coordinates
| PAD NO. | BOND PAD COORDINATES (µm) | PAD SIZE (µm) | ||||
|---|---|---|---|---|---|---|
| X MIN | Y MIN | X MAX | Y MAX | X | Y | |
| 1 | 178.955 | 10.08 | 244.055 | 75.18 | 65.1 | 65.1 |
| 2 | 368.2 | 10.08 | 433.3 | 75.18 | 65.1 | 65.1 |
| 3 | 557.445 | 10.08 | 622.545 | 75.18 | 65.1 | 65.1 |
| 4 | 664.335 | 10.08 | 729.435 | 75.18 | 65.1 | 65.1 |
| 5 | 853.58 | 10.08 | 918.68 | 75.18 | 65.1 | 65.1 |
| 6 | 1042.825 | 10.08 | 1107.925 | 75.18 | 65.1 | 65.1 |
| 7 | 1149.715 | 10.08 | 1214.815 | 75.18 | 65.1 | 65.1 |
| 8 | 1338.96 | 10.08 | 1404.06 | 75.18 | 65.1 | 65.1 |
| 9 | 1445.85 | 10.08 | 1510.95 | 75.18 | 65.1 | 65.1 |
| 10 | 1552.74 | 10.08 | 1617.84 | 75.18 | 65.1 | 65.1 |
| 11 | 1659.63 | 10.08 | 1724.73 | 75.18 | 65.1 | 65.1 |
| 12 | 1766.52 | 10.08 | 1831.62 | 75.18 | 65.1 | 65.1 |
| 13 | 1866.2 | 10.08 | 1931.3 | 75.18 | 65.1 | 65.1 |
| 14 | 1965.88 | 10.08 | 2030.98 | 75.18 | 65.1 | 65.1 |
| 15 | 2065.56 | 10.08 | 2130.66 | 75.18 | 65.1 | 65.1 |
| 16 | 2165.24 | 10.08 | 2230.34 | 75.18 | 65.1 | 65.1 |
| 17 | 2272.13 | 10.08 | 2337.23 | 75.18 | 65.1 | 65.1 |
| 18 | 2396.1 | 10.08 | 2461.2 | 75.18 | 65.1 | 65.1 |
| 19 | 2520.07 | 10.08 | 2585.17 | 75.18 | 65.1 | 65.1 |
| 20 | 2626.96 | 10.08 | 2692.06 | 75.18 | 65.1 | 65.1 |
| 21 | 2733.85 | 10.08 | 2798.95 | 75.18 | 65.1 | 65.1 |
| 22 | 2840.74 | 10.08 | 2905.84 | 75.18 | 65.1 | 65.1 |
| 23 | 2947.63 | 10.08 | 3012.73 | 75.18 | 65.1 | 65.1 |
| 24 | 3054.52 | 10.08 | 3119.62 | 75.18 | 65.1 | 65.1 |
| 25 | 3243.765 | 10.08 | 3308.865 | 75.18 | 65.1 | 65.1 |
| 26 | 3350.655 | 10.08 | 3415.755 | 75.18 | 65.1 | 65.1 |
| 27 | 3539.9 | 10.08 | 3605 | 75.18 | 65.1 | 65.1 |
| 28 | 3646.79 | 10.08 | 3711.89 | 75.18 | 65.1 | 65.1 |
| 29 | 3746.47 | 10.08 | 3811.57 | 75.18 | 65.1 | 65.1 |
| 30 | 3846.15 | 10.08 | 3911.25 | 75.18 | 65.1 | 65.1 |
| 31 | 3953.04 | 10.08 | 4018.14 | 75.18 | 65.1 | 65.1 |
| 32 | 4142.285 | 10.08 | 4207.385 | 75.18 | 65.1 | 65.1 |
| 33 | 4331.53 | 10.08 | 4396.63 | 75.18 | 65.1 | 65.1 |
| 34 | 4431.21 | 10.08 | 4496.31 | 75.18 | 65.1 | 65.1 |
| 35 | 4530.89 | 10.08 | 4595.99 | 75.18 | 65.1 | 65.1 |
| 36 | 4630.57 | 10.08 | 4695.67 | 75.18 | 65.1 | 65.1 |
| 37 | 4730.25 | 10.08 | 4795.35 | 75.18 | 65.1 | 65.1 |
| 38 | 4829.93 | 10.08 | 4895.03 | 75.18 | 65.1 | 65.1 |
| 39 | 4936.82 | 10.08 | 5001.92 | 75.18 | 65.1 | 65.1 |
| 40 | 5150.04 | 178.955 | 5215.14 | 244.055 | 65.1 | 65.1 |
| 41 | 5150.04 | 368.2 | 5215.14 | 433.3 | 65.1 | 65.1 |
| 42 | 5150.04 | 557.445 | 5215.14 | 622.545 | 65.1 | 65.1 |
| 43 | 5150.04 | 666.26 | 5215.14 | 731.36 | 65.1 | 65.1 |
| 44 | 5150.04 | 855.505 | 5215.14 | 920.605 | 65.1 | 65.1 |
| 45 | 5150.04 | 1044.75 | 5215.14 | 1109.85 | 65.1 | 65.1 |
| 46 | 5150.04 | 1153.565 | 5215.14 | 1218.665 | 65.1 | 65.1 |
| 47 | 5150.04 | 1262.38 | 5215.14 | 1327.48 | 65.1 | 65.1 |
| 48 | 5150.04 | 1371.195 | 5215.14 | 1436.295 | 65.1 | 65.1 |
| 49 | 5150.04 | 1480.01 | 5215.14 | 1545.11 | 65.1 | 65.1 |
| 50 | 5150.04 | 1669.255 | 5215.14 | 1734.355 | 65.1 | 65.1 |
| 51 | 5150.04 | 1778.07 | 5215.14 | 1843.17 | 65.1 | 65.1 |
| 52 | 5150.04 | 1886.885 | 5215.14 | 1951.985 | 65.1 | 65.1 |
| 53 | 5150.04 | 1995.7 | 5215.14 | 2060.8 | 65.1 | 65.1 |
| 54 | 5150.04 | 2184.945 | 5215.14 | 2250.045 | 65.1 | 65.1 |
| 55 | 5150.04 | 2293.76 | 5215.14 | 2358.86 | 65.1 | 65.1 |
| 56 | 5150.04 | 2402.575 | 5215.14 | 2467.675 | 65.1 | 65.1 |
| 57 | 5150.04 | 2511.39 | 5215.14 | 2576.49 | 65.1 | 65.1 |
| 58 | 5150.04 | 2700.635 | 5215.14 | 2765.735 | 65.1 | 65.1 |
| 59 | 5150.04 | 2809.45 | 5215.14 | 2874.55 | 65.1 | 65.1 |
| 60 | 5150.04 | 2998.695 | 5215.14 | 3063.795 | 65.1 | 65.1 |
| 61 | 5150.04 | 3187.94 | 5215.14 | 3253.04 | 65.1 | 65.1 |
| 62 | 5150.04 | 3296.755 | 5215.14 | 3361.855 | 65.1 | 65.1 |
| 63 | 5150.04 | 3486 | 5215.14 | 3551.1 | 65.1 | 65.1 |
| 64 | 5150.04 | 3675.245 | 5215.14 | 3740.345 | 65.1 | 65.1 |
| 65 | 5150.04 | 3784.06 | 5215.14 | 3849.16 | 65.1 | 65.1 |
| 66 | 5150.04 | 3973.305 | 5215.14 | 4038.405 | 65.1 | 65.1 |
| 67 | 5150.04 | 4082.12 | 5215.14 | 4147.22 | 65.1 | 65.1 |
| 68 | 5150.04 | 4190.935 | 5215.14 | 4256.035 | 65.1 | 65.1 |
| 69 | 5150.04 | 4299.75 | 5215.14 | 4364.85 | 65.1 | 65.1 |
| 70 | 5150.04 | 4408.565 | 5215.14 | 4473.665 | 65.1 | 65.1 |
| 71 | 5150.04 | 4517.38 | 5215.14 | 4582.48 | 65.1 | 65.1 |
| 72 | 5150.04 | 4626.195 | 5215.14 | 4691.295 | 65.1 | 65.1 |
| 73 | 5150.04 | 4735.01 | 5215.14 | 4800.11 | 65.1 | 65.1 |
| 74 | 5150.04 | 4843.825 | 5215.14 | 4908.925 | 65.1 | 65.1 |
| 75 | 5150.04 | 4952.64 | 5215.14 | 5017.74 | 65.1 | 65.1 |
| 76 | 4981.165 | 5148.85 | 5046.265 | 5213.95 | 65.1 | 65.1 |
| 77 | 4862.935 | 5148.85 | 4928.035 | 5213.95 | 65.1 | 65.1 |
| 78 | 4738.965 | 5148.85 | 4804.065 | 5213.95 | 65.1 | 65.1 |
| 79 | 4614.995 | 5148.85 | 4680.095 | 5213.95 | 65.1 | 65.1 |
| 80 | 4496.765 | 5148.85 | 4561.865 | 5213.95 | 65.1 | 65.1 |
| 81 | 4378.535 | 5148.85 | 4443.635 | 5213.95 | 65.1 | 65.1 |
| 82 | 4189.29 | 5148.85 | 4254.39 | 5213.95 | 65.1 | 65.1 |
| 83 | 4000.045 | 5148.85 | 4065.145 | 5213.95 | 65.1 | 65.1 |
| 84 | 3881.815 | 5148.85 | 3946.915 | 5213.95 | 65.1 | 65.1 |
| 85 | 3757.845 | 5148.85 | 3822.945 | 5213.95 | 65.1 | 65.1 |
| 86 | 3639.615 | 5148.85 | 3704.715 | 5213.95 | 65.1 | 65.1 |
| 87 | 3450.37 | 5148.85 | 3515.47 | 5213.95 | 65.1 | 65.1 |
| 88 | 3332.14 | 5148.85 | 3397.24 | 5213.95 | 65.1 | 65.1 |
| 89 | 3213.91 | 5148.85 | 3279.01 | 5213.95 | 65.1 | 65.1 |
| 90 | 3095.68 | 5148.85 | 3160.78 | 5213.95 | 65.1 | 65.1 |
| 91 | 2906.435 | 5148.85 | 2971.535 | 5213.95 | 65.1 | 65.1 |
| 92 | 2717.19 | 5148.85 | 2782.29 | 5213.95 | 65.1 | 65.1 |
| 93 | 2598.96 | 5148.85 | 2664.06 | 5213.95 | 65.1 | 65.1 |
| 94 | 2480.73 | 5148.85 | 2545.83 | 5213.95 | 65.1 | 65.1 |
| 95 | 2362.5 | 5148.85 | 2427.6 | 5213.95 | 65.1 | 65.1 |
| 96 | 2244.27 | 5148.85 | 2309.37 | 5213.95 | 65.1 | 65.1 |
| 97 | 2126.04 | 5148.85 | 2191.14 | 5213.95 | 65.1 | 65.1 |
| 98 | 1936.795 | 5148.85 | 2001.895 | 5213.95 | 65.1 | 65.1 |
| 99 | 1747.55 | 5148.85 | 1812.65 | 5213.95 | 65.1 | 65.1 |
| 100 | 1629.32 | 5148.85 | 1694.42 | 5213.95 | 65.1 | 65.1 |
| 101 | 1511.09 | 5148.85 | 1576.19 | 5213.95 | 65.1 | 65.1 |
| 102 | 1321.845 | 5148.85 | 1386.945 | 5213.95 | 65.1 | 65.1 |
| 103 | 1203.615 | 5148.85 | 1268.715 | 5213.95 | 65.1 | 65.1 |
| 104 | 1085.385 | 5148.85 | 1150.485 | 5213.95 | 65.1 | 65.1 |
| 105 | 967.155 | 5148.85 | 1032.255 | 5213.95 | 65.1 | 65.1 |
| 106 | 843.185 | 5148.85 | 908.285 | 5213.95 | 65.1 | 65.1 |
| 107 | 719.215 | 5148.85 | 784.315 | 5213.95 | 65.1 | 65.1 |
| 108 | 595.245 | 5148.85 | 660.345 | 5213.95 | 65.1 | 65.1 |
| 109 | 471.275 | 5148.85 | 536.375 | 5213.95 | 65.1 | 65.1 |
| 110 | 347.305 | 5148.85 | 412.405 | 5213.95 | 65.1 | 65.1 |
| 111 | 223.335 | 5148.85 | 288.435 | 5213.95 | 65.1 | 65.1 |
| 112 | 10.08 | 4979.975 | 75.18 | 5045.075 | 65.1 | 65.1 |
| 113 | 10.08 | 4868.5 | 75.18 | 4933.6 | 65.1 | 65.1 |
| 114 | 10.08 | 4757.025 | 75.18 | 4822.125 | 65.1 | 65.1 |
| 115 | 10.08 | 4645.55 | 75.18 | 4710.65 | 65.1 | 65.1 |
| 116 | 10.08 | 4534.075 | 75.18 | 4599.175 | 65.1 | 65.1 |
| 117 | 10.08 | 4410.105 | 75.18 | 4475.205 | 65.1 | 65.1 |
| 118 | 10.08 | 4286.135 | 75.18 | 4351.235 | 65.1 | 65.1 |
| 119 | 10.08 | 4162.165 | 75.18 | 4227.265 | 65.1 | 65.1 |
| 120 | 10.08 | 4038.195 | 75.18 | 4103.295 | 65.1 | 65.1 |
| 121 | 10.08 | 3912.825 | 75.18 | 3977.925 | 65.1 | 65.1 |
| 122 | 10.08 | 3801.35 | 75.18 | 3866.45 | 65.1 | 65.1 |
| 123 | 10.08 | 3689.875 | 75.18 | 3754.975 | 65.1 | 65.1 |
| 124 | 10.08 | 3578.4 | 75.18 | 3643.5 | 65.1 | 65.1 |
| 125 | 10.08 | 3466.925 | 75.18 | 3532.025 | 65.1 | 65.1 |
| 126 | 10.08 | 3355.45 | 75.18 | 3420.55 | 65.1 | 65.1 |
| 127 | 10.08 | 3243.975 | 75.18 | 3309.075 | 65.1 | 65.1 |
| 128 | 10.08 | 3132.5 | 75.18 | 3197.6 | 65.1 | 65.1 |
| 129 | 10.08 | 3021.025 | 75.18 | 3086.125 | 65.1 | 65.1 |
| 130 | 10.08 | 2909.55 | 75.18 | 2974.65 | 65.1 | 65.1 |
| 131 | 10.08 | 2720.305 | 75.18 | 2785.405 | 65.1 | 65.1 |
| 132 | 10.08 | 2608.83 | 75.18 | 2673.93 | 65.1 | 65.1 |
| 133 | 10.08 | 2497.355 | 75.18 | 2562.455 | 65.1 | 65.1 |
| 134 | 10.08 | 2385.88 | 75.18 | 2450.98 | 65.1 | 65.1 |
| 135 | 10.08 | 2274.405 | 75.18 | 2339.505 | 65.1 | 65.1 |
| 136 | 10.08 | 2162.93 | 75.18 | 2228.03 | 65.1 | 65.1 |
| 137 | 10.08 | 2051.455 | 75.18 | 2116.555 | 65.1 | 65.1 |
| 138 | 10.08 | 1862.21 | 75.18 | 1927.31 | 65.1 | 65.1 |
| 139 | 10.08 | 1672.965 | 75.18 | 1738.065 | 65.1 | 65.1 |
| 140 | 10.08 | 1561.49 | 75.18 | 1626.59 | 65.1 | 65.1 |
| 141 | 10.08 | 1372.245 | 75.18 | 1437.345 | 65.1 | 65.1 |
| 142 | 10.08 | 1260.77 | 75.18 | 1325.87 | 65.1 | 65.1 |
| 143 | 10.08 | 1149.295 | 75.18 | 1214.395 | 65.1 | 65.1 |
| 144 | 10.08 | 1037.82 | 75.18 | 1102.92 | 65.1 | 65.1 |
| 145 | 10.08 | 926.345 | 75.18 | 991.445 | 65.1 | 65.1 |
| 146 | 10.08 | 814.87 | 75.18 | 879.97 | 65.1 | 65.1 |
| 147 | 10.08 | 703.395 | 75.18 | 768.495 | 65.1 | 65.1 |
| 148 | 10.08 | 514.15 | 75.18 | 579.25 | 65.1 | 65.1 |
| 149 | 10.08 | 402.675 | 75.18 | 467.775 | 65.1 | 65.1 |
| 150 | 10.08 | 291.2 | 75.18 | 356.3 | 65.1 | 65.1 |
| 151 | 10.08 | 179.725 | 75.18 | 244.825 | 65.1 | 65.1 |
| 152 | 4.9 | 5154.1 | 69.93 | 5219.13 | 65.03 | 65.03 |
