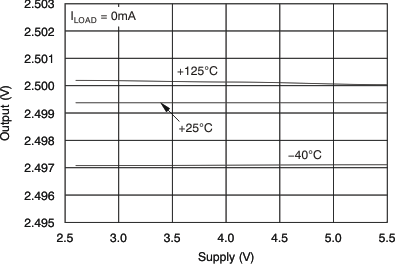

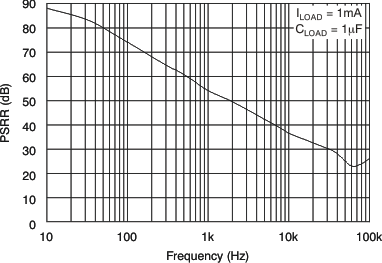

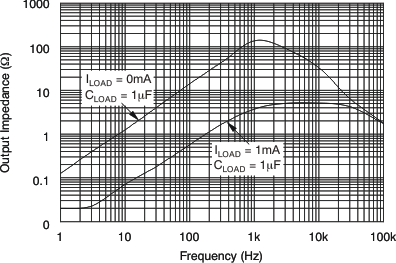

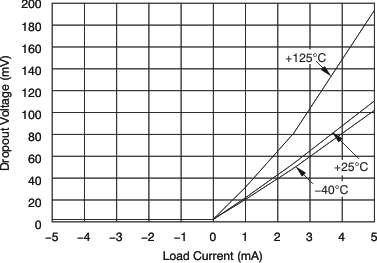

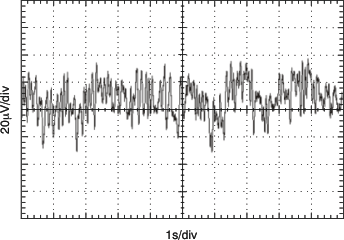

7.6 Typical Characteristics
At TA = 25°C and VIN = 5 V, and REF3325 used for typical characteristic measurements (unless otherwise noted).

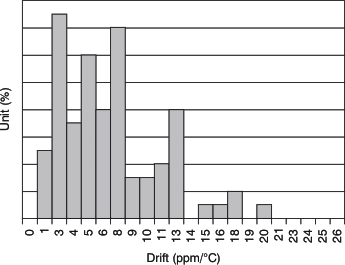

| 0°C to 70°C | ||

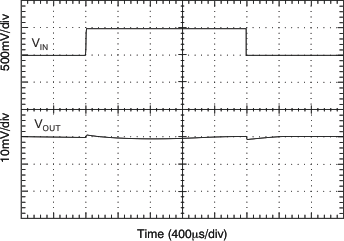

| CLOAD = 10 μF, IOUT = 0 mA | ||

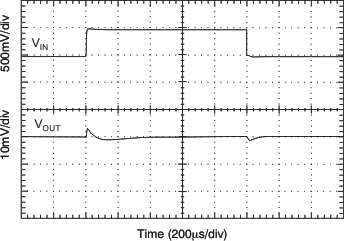

| CLOAD = 10 μF, IOUT = 1 mA | ||

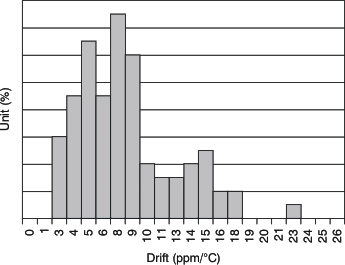

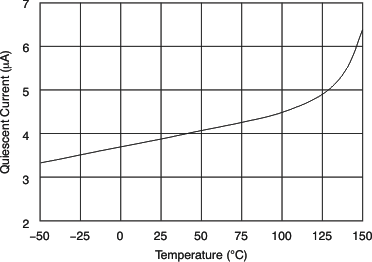

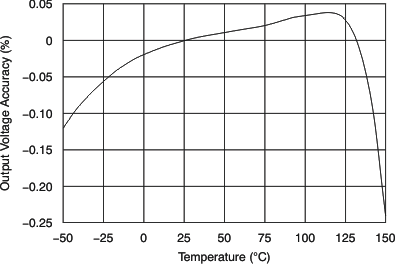

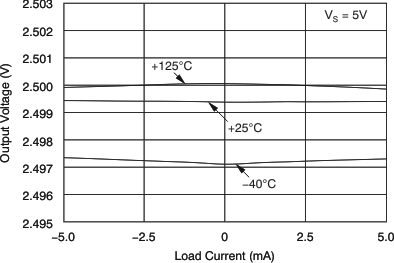

| –40°C to 125°C | ||

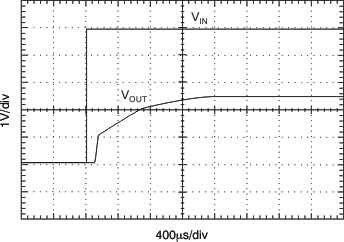

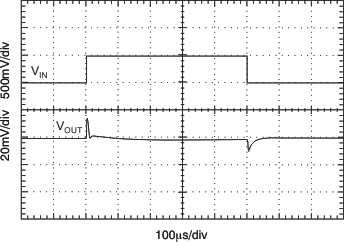

| CL = 1-μF Startup | ||
| CL = 1 μF, IOUT = 0 mA | ||

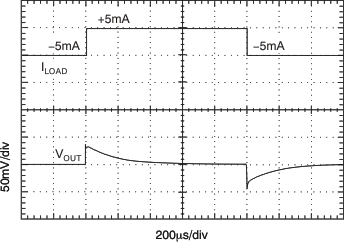

| CL = 1 μF, ±5-mA Output Pulse | ||

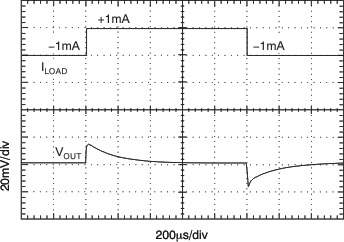

| CL = 1 μF, ±1-mA Output Pulse | ||
