6.4 Typical Characteristics
At TA = +25°C, VSP = +15V, VSN = –15V, VSON = 0V, VSOP = 5V, DVDD = +3V, DGND = 0V, RL = 2.5kΩ to VSOP/2 = VOCM, G = 1V/V, using internal clock, BUF inactive, VCM = 0V, and differential input and output, unless otherwise noted.

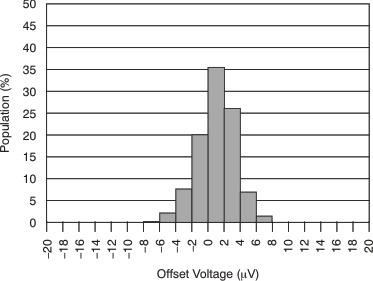

Figure 2. Offset Voltage Production Distribution (G = 128)

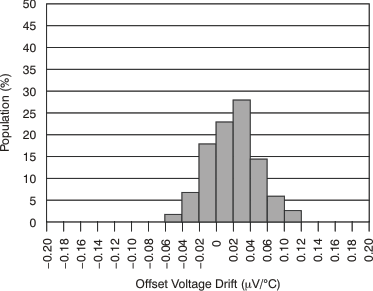

Figure 4. Offset Voltage Drift Distribution (G = 128)

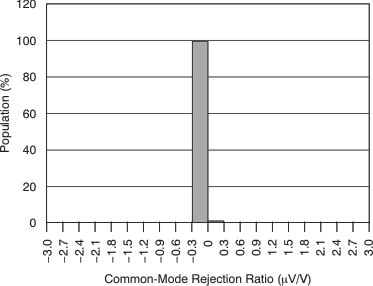

Figure 6. Common-Mode Rejection Distribution (G = 128)

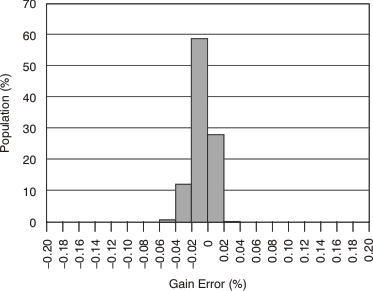

Figure 8. Gain-Error Distribution (G = 128)

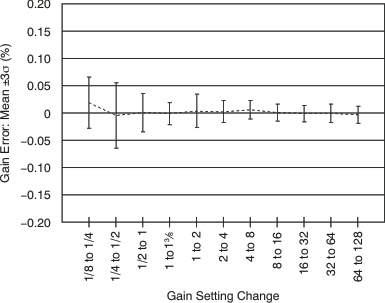

Figure 12. Maximum Gain-Error Deviation Between
Sequential Gain Settings (Mean With ±3 σ)

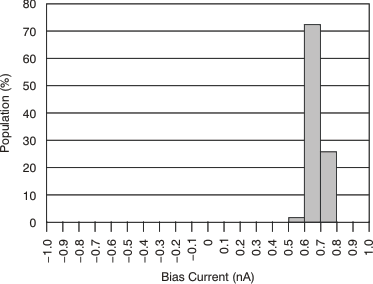

Figure 20. Input Bias Current Distribution (G = 128)

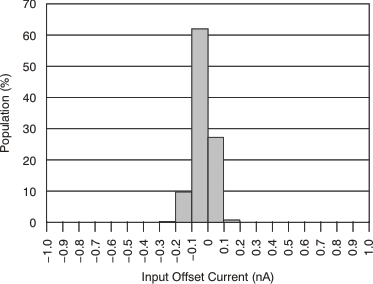

Figure 22. Input Offset Current Distribution (G = 1, G = 128)

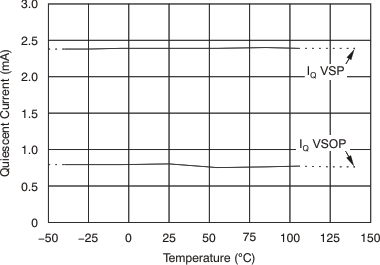

Figure 24. Quiescent Current From Supplies (VSP and VSOP) vs Temperature
(G = 1)
Figure 32. Switch-On Resistance
and Series Input Resistance
vs Common-Mode Voltage at Various Supply Voltages

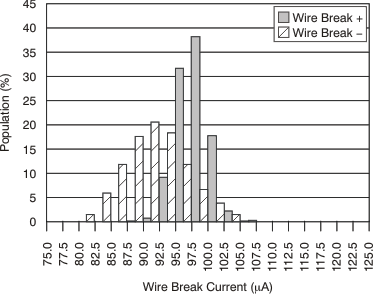

Figure 34. Wire Break Current Distribution

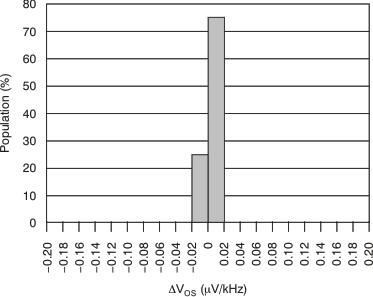

Figure 36. Influence of External Clock Frequency to
VOS Performance (G = 128)
Temperature

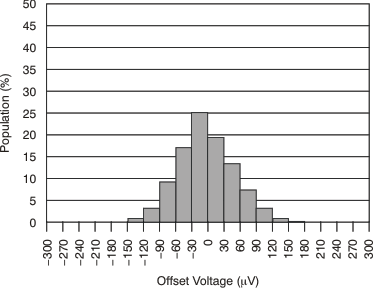

Figure 3. Offset Voltage Production Distribution (G = 1)

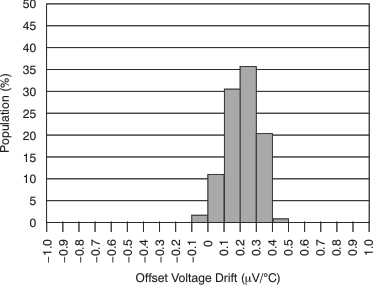

Figure 5. Offset Voltage Drift Distribution (G = 1)

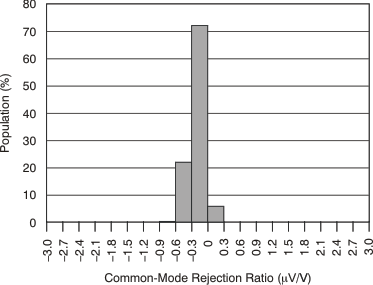

Figure 7. Common-Mode Rejection Distribution (G = 1)

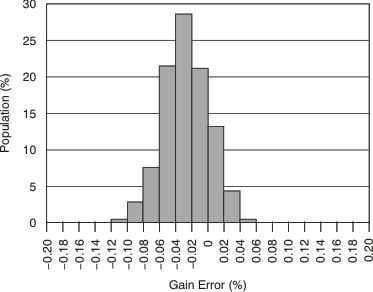

Figure 9. Gain-Error Distribution (G = 1)

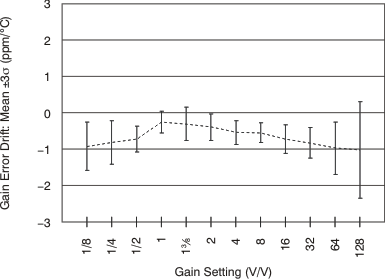

Figure 11. Gain-Error Drift Distribution
vs Gain Setting (Mean With ±3 σ)
Gain Setting (Mean With ±3σ)

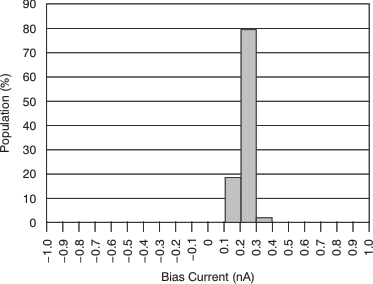

Figure 21. Input Bias Current Distribution (G = 1)
vs Temperature
Figure 25. Digital Supply Current
With and Without SPI Communication
vs Temperature
(VSOP – VSON = 5 V)

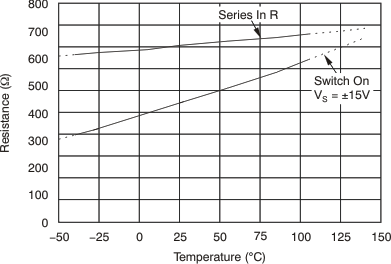

Figure 33. Switch-On Resistance
and Series Input Resistance
vs Temperature

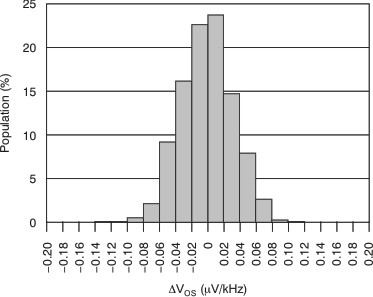

Figure 37. Influence of External Clock Frequency to
VOS Performance (G = 1)

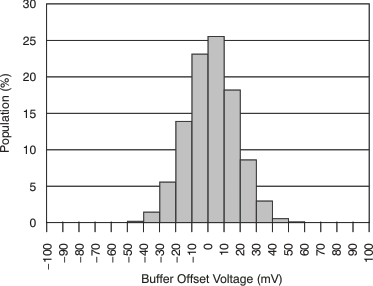

Figure 43. Input Current Buffer Offset Voltage Distribution
