6 Pin Configuration and Functions

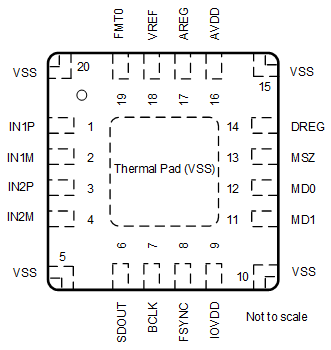

Figure 6-1 RTW
Package,20-Pin WQFN With Exposed Thermal
Pad,Top ViewTable 6-1 Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | IN1P | Analog input | Analog input 1P pin. |
| 2 | IN1M | Analog input | Analog input 1M pin. |
| 3 | IN2P | Analog input | Analog input 2P pin. |
| 4 | IN2M | Analog input | Analog input 2M pin. |
| 5 | VSS | Analog Supply | Short this pin directly to the board ground plane. |
| 6 | SDOUT | Digital output | Audio serial data interface bus output. |
| 7 | BCLK | Digital I/O | Audio serial data interface bus bit clock. |
| 8 | FSYNC | Digital I/O | Audio serial data interface bus frame synchronization signal. |
| 9 | IOVDD | Digital supply | Digital I/O power supply (1.8 V or 3.3 V, nominal). |
| 10 | VSS | Analog supply | Short this pin directly to the board ground plane. |
| 11 | MD1 | Digital input | Device configuration mode select 1 pin. |
| 12 | MD0 | Digital input | Device configuration mode select 0 pin. |
| 13 | MSZ | Digital input | Audio interface bus master or slave select pin. |
| 14 | DREG | Digital supply | Digital regulator output voltage for digital core supply (1.5 V, nominal). |
| 15 | VSS | Analog supply | Short this pin directly to the board ground plane. |
| 16 | AVDD | Analog supply | Analog power (3.3 V, nominal). |
| 17 | AREG | Analog supply | Analog on-chip regulator output voltage for analog supply (1.8 V, nominal). |
| 18 | VREF | Analog | Analog reference voltage filter output. |
| 19 | FMT0 | Digital input | Audio interface format select pin referred to AVDD supply. |
| 20 | VSS | Analog supply | Short this pin directly to the board ground plane. |
| Thermal Pad (VSS) | Ground supply | Thermal pad shorted to internal device ground. Short thermal pad directly to board ground plane. | |
