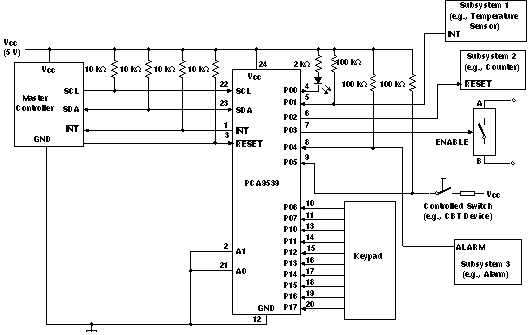

9.2 Typical Application
Device address is configured as
1110100 for this example.
P00, P02, and P03 are configured
as outputs.
P01 and P04 to P17 are configured
as inputs.
Pin numbers shown are for DB,
DBQ, DGV, DW, and PW packages.
Figure 9-1 Typical
Application
