6.8 Typical Characteristics
TA = 25°C (unless otherwise noted)

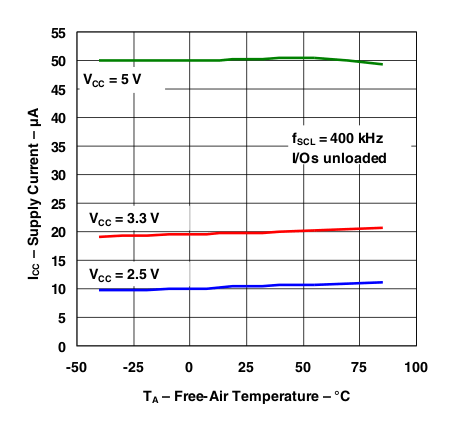

Figure 6-1 Supply Current vs Temperature

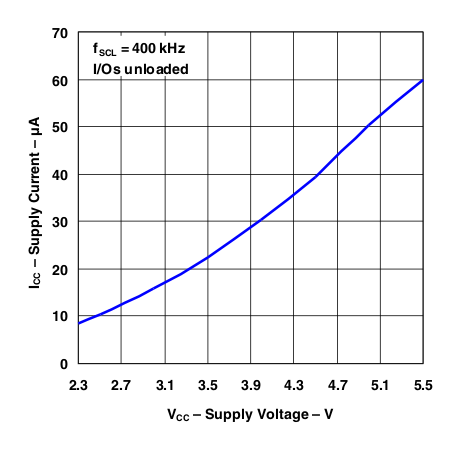

Figure 6-3 Supply Current vs Supply Voltage

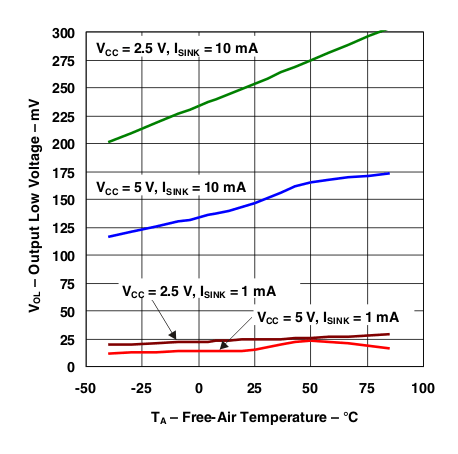

Figure 6-5 I/O Output Low Voltage vs Temperature

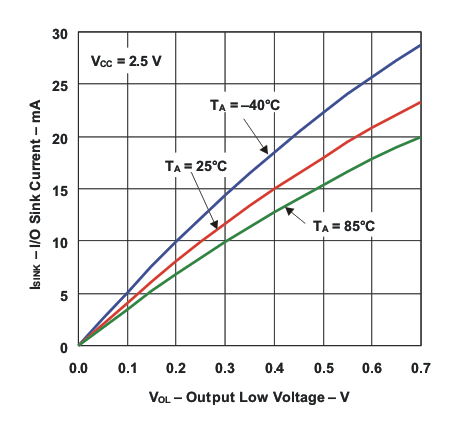

Figure 6-7 I/O Sink Current vs Output Low Voltage

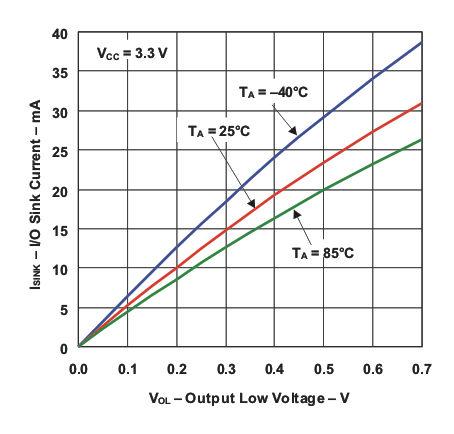

Figure 6-9 I/O Sink Current vs Output Low Voltage

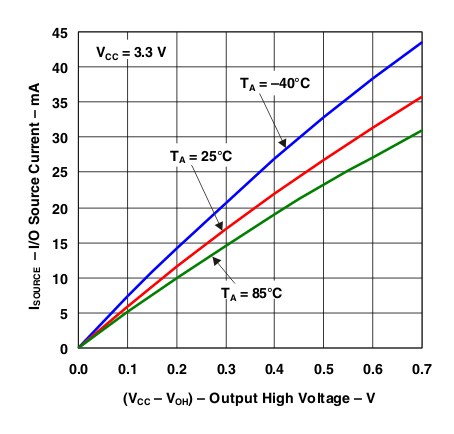

Figure 6-11 I/O Source Current vs Output High Voltage

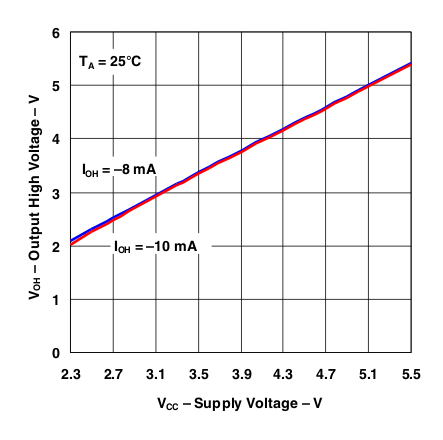

Figure 6-13 Output High Voltage vs Supply Voltage

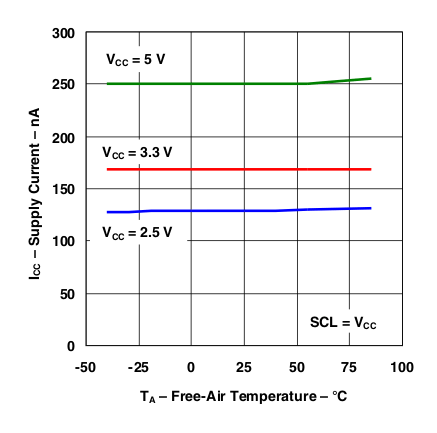

Figure 6-2 Quiescent Supply Current vs Temperature

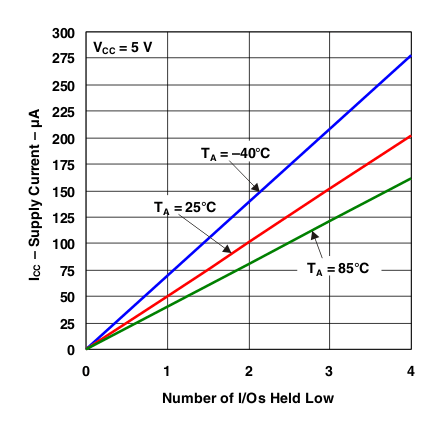

Figure 6-4 Supply Current vs Number of I/Os Held Low

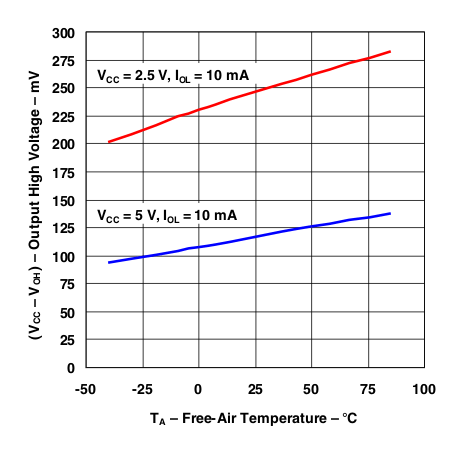

Figure 6-6 I/O Output High Voltage vs Temperature

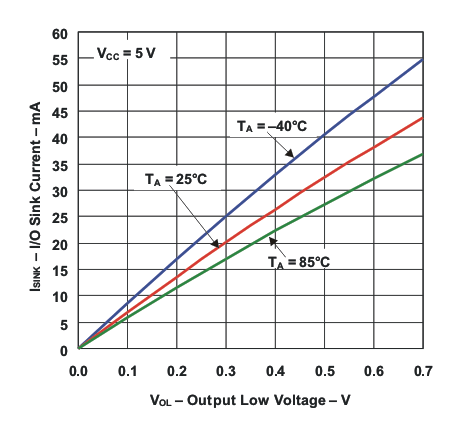

Figure 6-8 I/O Sink Current vs Output Low Voltage

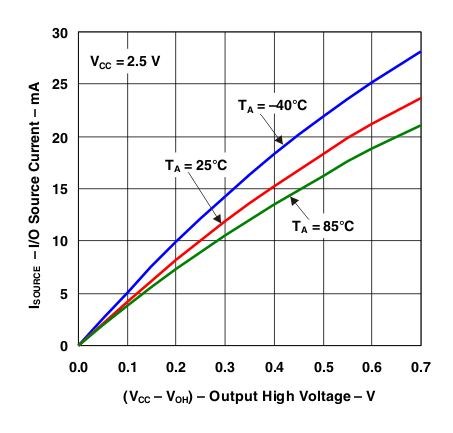

Figure 6-10 I/O Source Current vs Output High Voltage

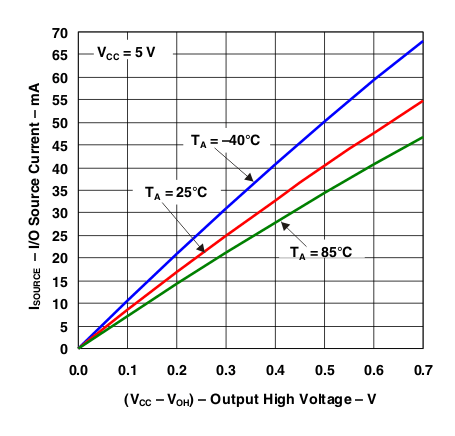

Figure 6-12 I/O Source Current vs Output High Voltage
