10.2.3 Application Curves
| Standard mode | Fast mode | |
| (fSCL = 100 kHz, tr = 1 μs) | (fSCL = 400 kHz, tr = 300 ns) | |

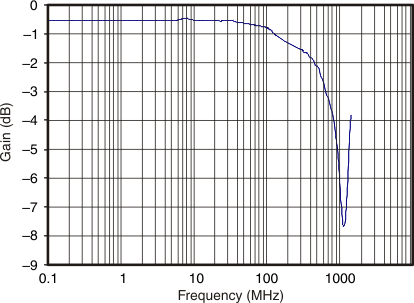

Figure 10-5 Bandwidth

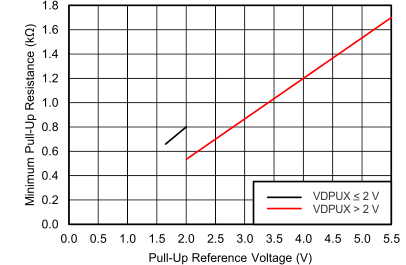

| VOL = 0.2 × VDPUX , IOL = 2 mA when VDPUX ≤ 2 V | ||
| VOL = 0.4 V, IOL = 3 mA when VDPUX > 2 V |
