ZHCSGP7 August 2017 OPT3007

PRODUCTION DATA.

封裝選項

機械數(shù)據(jù) (封裝 | 引腳)

YMF|6
- MXLG034

散熱焊盤機械數(shù)據(jù) (封裝 | 引腳)

訂購信息

6 Specifications

6.1 Absolute Maximum Ratings⁽¹⁾

		MIN	MAX	UNIT
Voltage	VDD to GND	–0.5	6	V
Voltage	SDA and SCL to GND	–0.5	6	V
Current into any pin			10	mA
Temperature	Junction		150	°C
Temperature	Storage, T_stg	–65	150⁽²⁾	°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) Long exposure to temperatures higher than 105°C can cause package discoloration, spectral distortion, and measurement inaccuracy.

6.2 ESD Ratings

			VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001⁽¹⁾	±2000	V
V_(ESD)	Electrostatic discharge	Charged-device model (CDM), per JEDEC specification JESD22-C101⁽²⁾	±500	V

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

		MIN	NOM	MAX	UNIT
Operating temperature		–40		85	°C
Operating power-supply voltage		1.6		3.6	V

6.4 Thermal Information

THERMAL METRIC⁽¹⁾		OPT3007	UNIT
		YMF (PicoStar)
		6 PINS
R_θJA	Junction-to-ambient thermal resistance	122.8	°C/W
R_θJC(top)	Junction-to-case (top) thermal resistance	1.4	°C/W
R_θJB	Junction-to-board thermal resistance	34.9	°C/W
ψ_JT	Junction-to-top characterization parameter	0.8	°C/W
ψ_JB	Junction-to-board characterization parameter	35.3	°C/W

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

6.5 Electrical Characteristics

At T_A = 25°C, V_DD = 3.3 V, 800-ms conversion time (CT = 1)⁽²⁾, automatic full-scale range (RN[3:0] = 1100b⁽²⁾), white LED, and normal-angle incidence of light, unless otherwise specified.

PARAMETER		TEST CONDITIONS		MIN	TYP	MAX	UNIT
OPTICAL
	Peak irradiance spectral responsivity				550		nm
	Resolution (LSB)	Lowest full-scale range, RN[3:0] = 0000b⁽²⁾			0.01		lux
	Full-scale illuminance				83865.6		lux
	Measurement output result	0.64 lux per ADC code, 2620.80 lux full-scale (RN[3:0] = 0110)⁽²⁾, 2000 lux input⁽³⁾		2500	3125	3750	ADC codes
	Measurement output result			1600	2000	2400	lux
	Relative accuracy between gain ranges⁽¹⁾				0.2%
	Infrared response (850 nm)⁽³⁾				0.2%
	Light source variation (incandescent, halogen, fluorescent)	Bare device, no cover glass			4%
	Linearity	Input illuminance > 40 lux			2%
	Linearity	Input illuminance < 40 lux			5%
	Measurement drift across temperature	Input illuminance = 2000 lux			0.01		%/°C
	Dark condition, ADC output	0.01 lux per ADC code			0	3	ADC codes
	Dark condition, ADC output	0.01 lux per ADC code			0	0.03	lux
	Half-power angle	50% of full-power reading			44		degrees
PSRR	Power-supply rejection ratio	V_DD at 3.6 V and 1.6 V			0.1		%/V⁽⁴⁾
POWER SUPPLY
V_DD	Operating range			1.6		3.6	V
V_I²C	Operating range of I²C pull-up resistor	I²C pullup resistor, V_DD ≤ V_I²C		1.6		5.5	V
I_Q	Quiescent current	Dark	Active, V_DD = 3.6 V		1.8	2.5	µA
		Dark	Shutdown (M[1:0] = 00)⁽²⁾, V_DD = 3.6 V		0.3	0.47	µA
		Full-scale lux	Active, V_DD = 3.6 V		3.7		µA
		Full-scale lux	Shutdown, (M[1:0] = 00)⁽²⁾		0.4		µA
POR	Power-on-reset threshold	T_A = 25°C			0.8		V
DIGITAL
	I/O pin capacitance				3		pF
	Total integration time⁽⁵⁾	(CT = 1)⁽²⁾, 800-ms mode, fixed lux range		720	800	880	ms
	Total integration time⁽⁵⁾	(CT = 0)⁽²⁾, 100-ms mode, fixed lux range		90	100	110	ms
V_IL	Low-level input voltage (SDA and SCL)			0		0.3 × V_DD	V
V_IH	High-level input voltage (SDA and SCL)			0.7 × V_DD		5.5	V
I_IL	Low-level input current (SDA and SCL)				0.01	0.25⁽⁶⁾	µA
V_OL	Low-level output voltage (SDA)	I_OL= 3 mA				0.32	V
I_ZH	Output logic high, high-Z leakage current (SDA)	Pin at V_DD			0.01	0.25⁽⁶⁾	µA
TEMPERATURE
	Specified temperature range			–40		85	°C

(1) Characterized by measuring fixed near-full-scale light levels on the higher adjacent full-scale range setting.

(2) Refers to a control field within the configuration register.

(3) Tested with the white LED calibrated to 2k lux and an 850-nm LED.

(4) PSRR is the percent change of the measured lux output from its current value, divided by the change in power supply voltage, as characterized by results from 3.6-V and 1.6-V power supplies.

(5) The conversion time, from start of conversion until the data are ready to be read, is the integration time plus 3 ms.

(6) The specified leakage current is dominated by the production test equipment limitations. Typical values are much smaller.

6.6 Timing Requirements⁽¹⁾

		MIN	TYP	MAX	UNIT
I²C FAST MODE
f_SCL	SCL operating frequency	0.01		0.4	MHz
t_BUF	Bus free time between stop and start	1300			ns
t_HDSTA	Hold time after repeated start	600			ns
t_SUSTA	Setup time for repeated start	600			ns
t_SUSTO	Setup time for stop	600			ns
t_HDDAT	Data hold time	20		900	ns
t_SUDAT	Data setup time	100			ns
t_LOW	SCL clock low period	1300			ns
t_HIGH	SCL clock high period	600			ns
t_RC and t_FC	Clock rise and fall time			300	ns
t_RD and t_FD	Data rise and fall time			300	ns
t_TIMEO	Bus timeout period. If the SCL line is held low for this duration of time, the bus state machine is reset.		28		ms
I²C HIGH-SPEED MODE
f_SCL	SCL operating frequency	0.01		2.6	MHz
t_BUF	Bus free time between stop and start	160			ns
t_HDSTA	Hold time after repeated start	160			ns
t_SUSTA	Setup time for repeated start	160			ns
t_SUSTO	Setup time for stop	160			ns
t_HDDAT	Data hold time	20		140	ns
t_SUDAT	Data setup time	20			ns
t_LOW	SCL clock low period	240			ns
t_HIGH	SCL clock high period	60			ns
t_RC and t_FC	Clock rise and fall time			40	ns
t_RD and t_FD	Data rise and fall time			80	ns
t_TIMEO	Bus timeout period. If the SCL line is held low for this duration of time, the bus state machine is reset.		28		ms

(1) All timing parameters are referenced to low and high voltage thresholds of 30% and 70%, respectively, of final settled value.

Figure 1. I²C Detailed Timing Diagram

6.7 Typical Characteristics

At T_A = 25°C, V_DD = 3.3 V, 800-ms conversion time (CT = 1), automatic full-scale range (RN[3:0] = 1100b), white LED, and normal-angle incidence of light, unless otherwise specified.

Figure 2. Spectral Response vs Wavelength

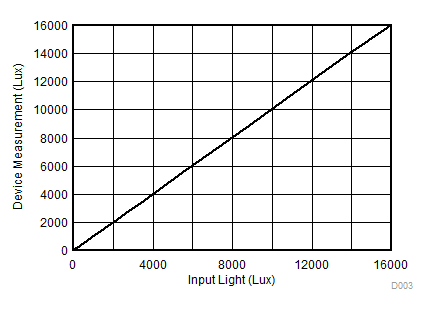

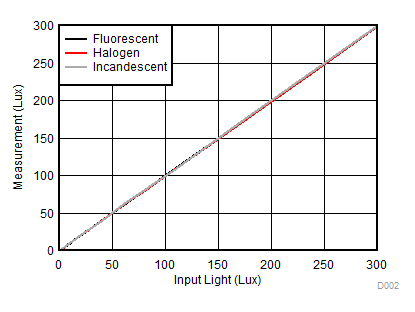

Figure 4. Output Response vs Input Illuminance
(Higher Range = 0 Lux to 16k Lux)

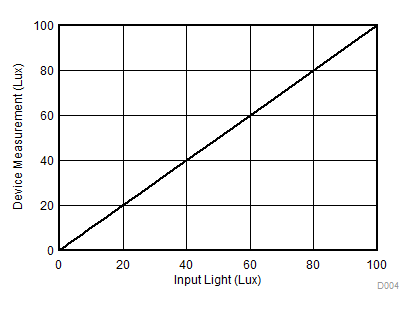

Figure 6. Output Response vs Input Illuminance
(Low Range = 0 Lux to 5 Lux)

Input illuminance = 960 lux,
normalized to response of 2560 lux full-scale

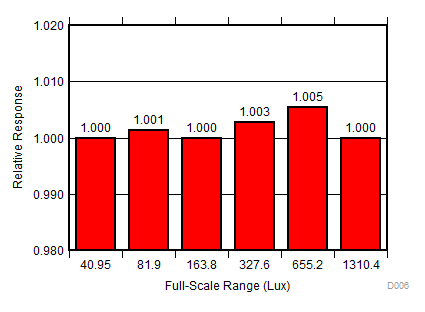

Figure 8. Full-Scale-Range Matching (Highest 6 Ranges)

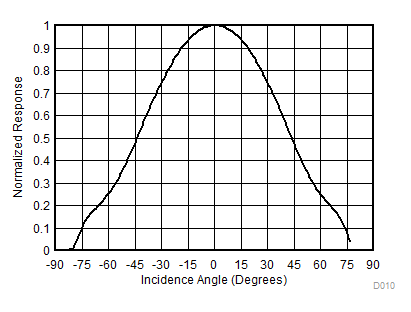

Figure 10. Normalized Response vs Temperature

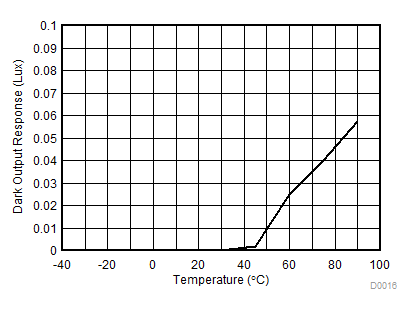

Figure 12. Normalized Response vs Power-Supply Voltage

M[1:0] = 10b

Figure 14. Supply Current vs Input Illuminance

M[1:0] = 10b

Figure 16. Supply Current vs Temperature

Input illuminance = 80 lux, SCL = SDA,
continuously toggled at I²C frequency
Note: A typical application runs at a lower duty cycle and thus consumes a lower current.

Figure 18. Supply Current vs Continuous I²C Frequency
