6 Pin Configuration and Functions

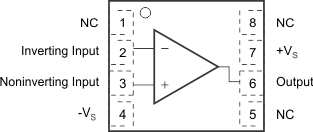

DRB Package
8-Pin VSON With Exposed Thermal Pad
Top View
NC: Not connected.

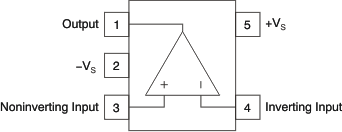

DRV Package
5-Pin SOT23
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | SOIC | SOT-23 | ||
| NC | 1 | — | — | No Connection |
| 5 | ||||
| 8 | ||||
| VIN– | 2 | 4 | I | Inverting Input |
| VIN+ | 3 | 3 | I | Noninverting Input |
| VOUT | 6 | 1 | O | Output of amplifier |
| –VS | 4 | 2 | POW | Negative Power Supply |
| +VS | 7 | 5 | POW | Positive Power Supply |
