ZHCSGF0D July 2017 – October 2019 MCP6291 , MCP6292 , MCP6294

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

DCK|5
- MPDS025K
DBV|5
- MPDS018T

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

7.8 Typical Characteristics

at T_A = 25°C, V_S = 5.5 V, R_L = 10 kΩ connected to V_S / 2, V_CM = V_S / 2, and V_OUT = V_S / 2 (unless otherwise noted)

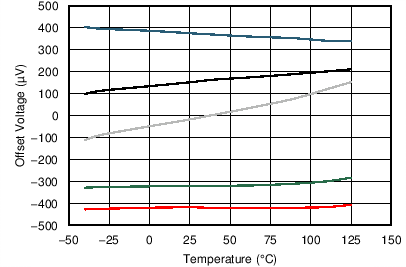

MCP6291 MCP6292 MCP6294 C003_SBOS839.png

Figure 1. Offset Voltage vs Temperature

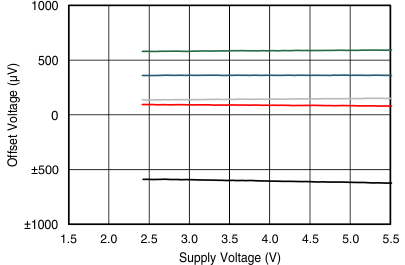

MCP6291 MCP6292 MCP6294 C004_2_SBOS879.gif

V_S= 2.4 V to 5.5 V

Figure 3. Offset Voltage vs Power Supply

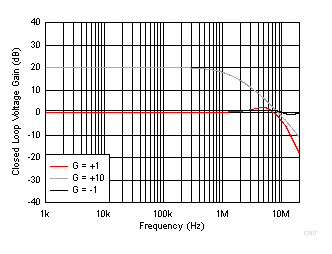

MCP6291 MCP6292 MCP6294 C007_SBOS878.gif

Figure 5. Closed-Loop Gain vs Frequency

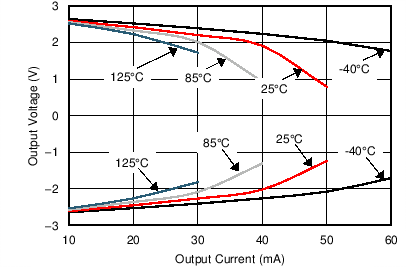

MCP6291 MCP6292 MCP6294 C009_SBOS839.png

V+ = 2.75 V, V– = –2.75 V

Figure 7. Output Voltage Swing vs Output Current

MCP6291 MCP6292 MCP6294 C012_SBOS839.png

V_S = 5.5 V	V_CM = (V–) – 0.1 V to (V+) + 0.1 V
T_A= –40°C to 125°C	R_L= 10 kΩ

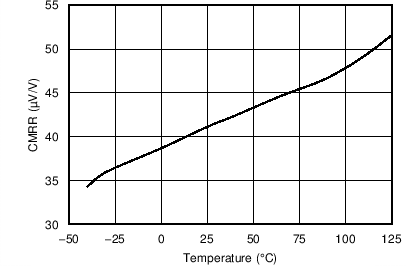

Figure 9. CMRR vs Temperature

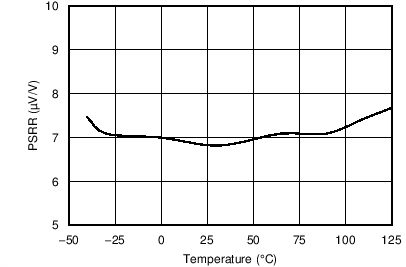

MCP6291 MCP6292 MCP6294 C013_SBOS839.png

V_S = 2.4 V to 5.5 V

Figure 11. PSRR vs Temperature

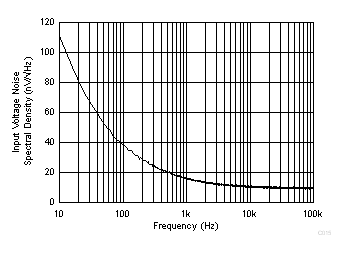

MCP6291 MCP6292 MCP6294 C015_SBOS878.gif

Figure 13. Input Voltage Noise Spectral Density vs Frequency

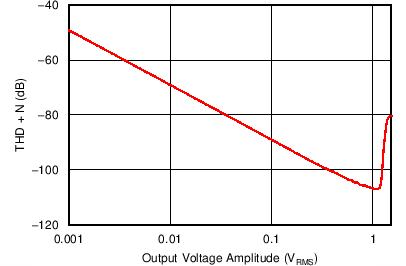

MCP6291 MCP6292 MCP6294 C018_SBOS839.png

V_S = 5.5 V	V_CM = 2.5 V	R_L = 2 kΩ
G = 1	BW = 80 kHz	f = 1 kHz

Figure 15. THD + N vs Amplitude

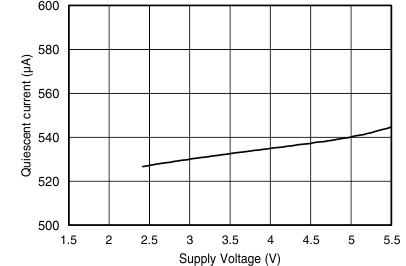

MCP6291 MCP6292 MCP6294 C020_2_SBOS879.gif

Figure 17. Quiescent Current vs Supply Voltage

MCP6291 MCP6292 MCP6294 C024_SBOS878.gif

Figure 19. Open-Loop Output Impedance vs Frequency

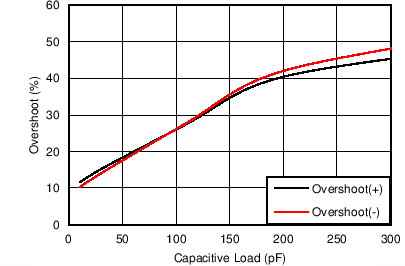

MCP6291 MCP6292 MCP6294 C026_SBOS839.png

V+ = 2.75 V	V– = –2.75 V	G = –1 V/V
R_L = 10 kΩ	V_OUT step = 100 mV_p-p

Figure 21. Small-Signal Overshoot vs Load Capacitance

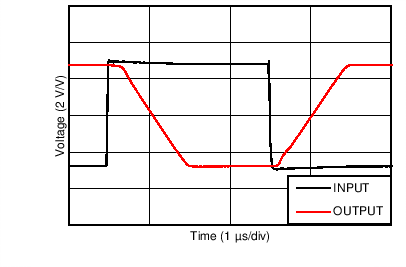

MCP6291 MCP6292 MCP6294 C028_SBOS839.png

V+ = 2.75 V	V– = –2.75 V	G = –10 V/V

Figure 23. Overload Recovery

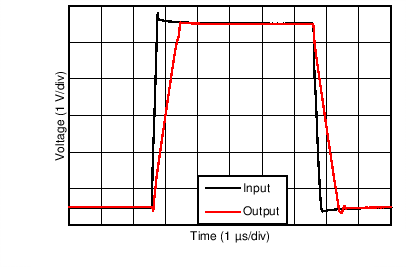

MCP6291 MCP6292 MCP6294 C031_SBOS839.png

V+ = 2.75 V	V– = –2.75 V	C_L = 100 pF
G = 1 V/V

Figure 25. Large-Signal Step Response

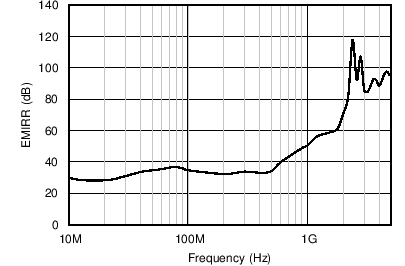

MCP6291 MCP6292 MCP6294 C041_SBOS839.png

P_RF = –10 dBm

Figure 27. Electromagnetic Interference Rejection Ratio
Referred to Noninverting Input (EMIRR+) vs Frequency

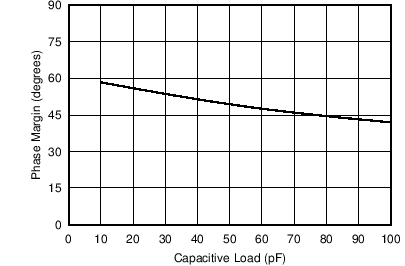

MCP6291 MCP6292 MCP6294 C037_SBOS839.png

	V_S = 5.5 V

Figure 29. Phase Margin vs Capacitive Load

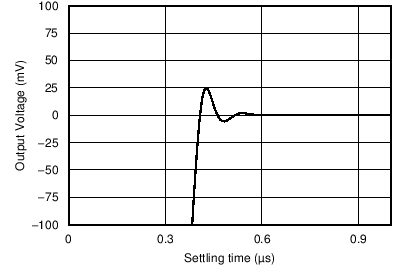

MCP6291 MCP6292 MCP6294 C032_SBOS839.png

Figure 31. Large Signal Settling Time (Positive)

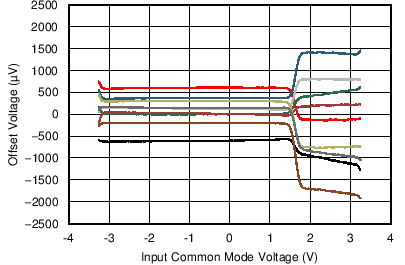

MCP6291 MCP6292 MCP6294 C005_SBOS839.png

V+ = 2.75 V, V– = –2.75 V

Figure 2. Offset Voltage vs Common-Mode Voltage

MCP6291 MCP6292 MCP6294 C006b_SBOS879.gif

C_L = 10 pF

Figure 4. Open-Loop Gain and Phase vs Frequency

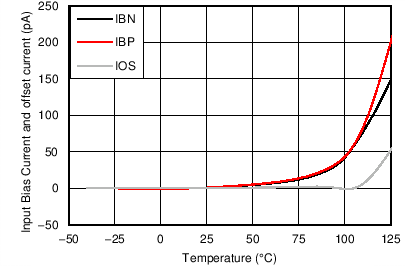

MCP6291 MCP6292 MCP6294 C008_SBOS839.png

Figure 6. Input Bias Current vs Temperature

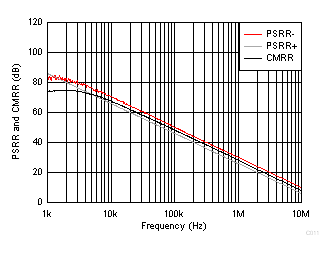

MCP6291 MCP6292 MCP6294 C011_SBOS878.gif

Figure 8. CMRR and PSRR vs Frequency
(Referred to Input)

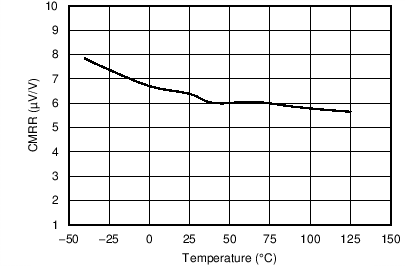

MCP6291 MCP6292 MCP6294 C016_SBOS839.png

V_S = 5.5 V	V_CM = (V–) – 0.1 V to (V+) – 1.4 V
R_L= 10 kΩ	T_A= –40°C to 125°C

Figure 10. CMRR vs Temperature

MCP6291 MCP6292 MCP6294 C014_SBOS839.png

V_S = 2.4 V to 5.5 V

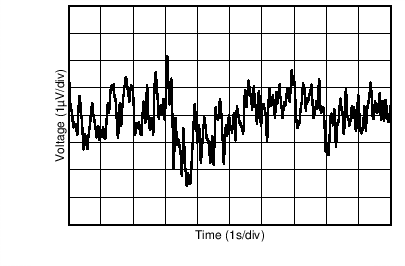

Figure 12. 0.1-Hz to 10-Hz Input Voltage Noise

MCP6291 MCP6292 MCP6294 C017_SBOS878.gif

V_S = 5.5 V	V_CM = 2.5 V	R_L = 2 kΩ
V_OUT = 0.5 V_RMS	G = 1	BW = 80 kHz

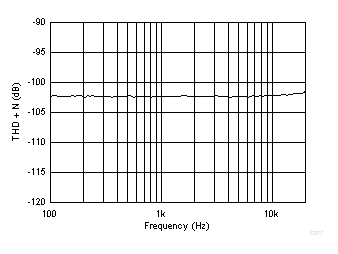

Figure 14. THD + N vs Frequency

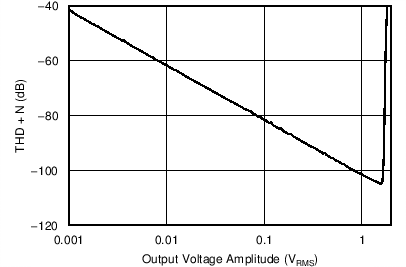

MCP6291 MCP6292 MCP6294 C019_SBOS839.png

V_S = 5.5 V	V_CM = 2.5 V	R_L = 2 kΩ
G = –1	BW = 80 kHz	f = 1 kHz

Figure 16. THD + N vs Amplitude

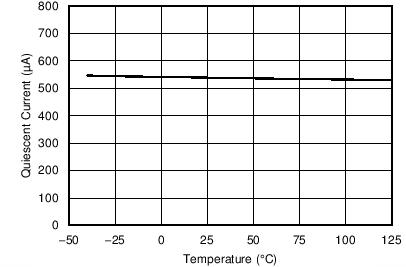

MCP6291 MCP6292 MCP6294 C021_SBOS839.png

Figure 18. Quiescent Current vs Temperature

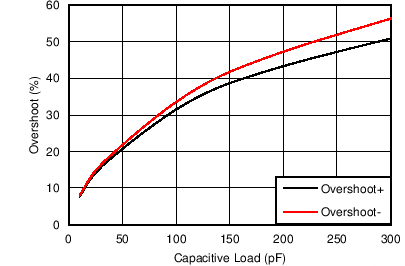

MCP6291 MCP6292 MCP6294 C025_SBOS839.png

V+ = 2.75 V	V– = –2.75 V	G = 1 V/V
R_L = 10 kΩ	V_OUT step = 100 mV_p-p

Figure 20. Small-Signal Overshoot vs Load Capacitance

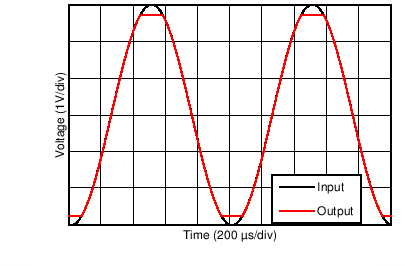

MCP6291 MCP6292 MCP6294 C036_SBOS839.png

V+ = 2.75 V, V– = –2.75 V

Figure 22. No Phase Reversal

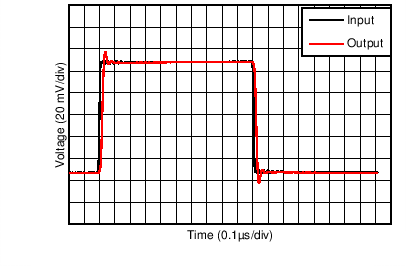

MCP6291 MCP6292 MCP6294 C030_SBOS839.png

V+ = 2.75 V	V– = –2.75 V	G = 1 V/V

Figure 24. Small-Signal Step Response

MCP6291 MCP6292 MCP6294 C034_SBOS839.png

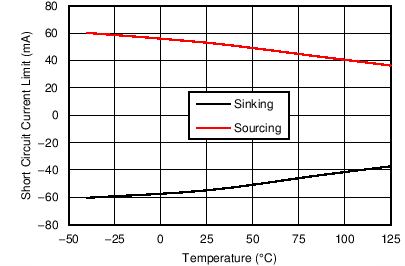

Figure 26. Short-Circuit Current vs Temperature

MCP6291 MCP6292 MCP6294 C038_SBOS878.gif

V+ = 2.75 V, V– = –2.75 V

Figure 28. Channel Separation vs Frequency

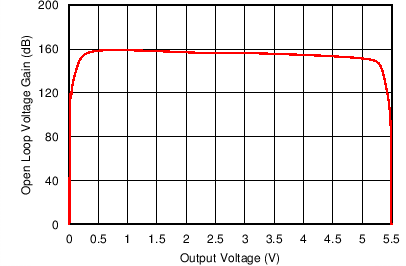

MCP6291 MCP6292 MCP6294 C023_SBOS839.png

	V_S = 5.5 V

Figure 30. Open Loop Voltage Gain vs Output Voltage

MCP6291 MCP6292 MCP6294 C033_SBOS839.png

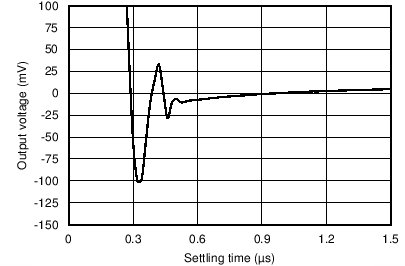

Figure 32. Large Signal Settling Time (Negative)
